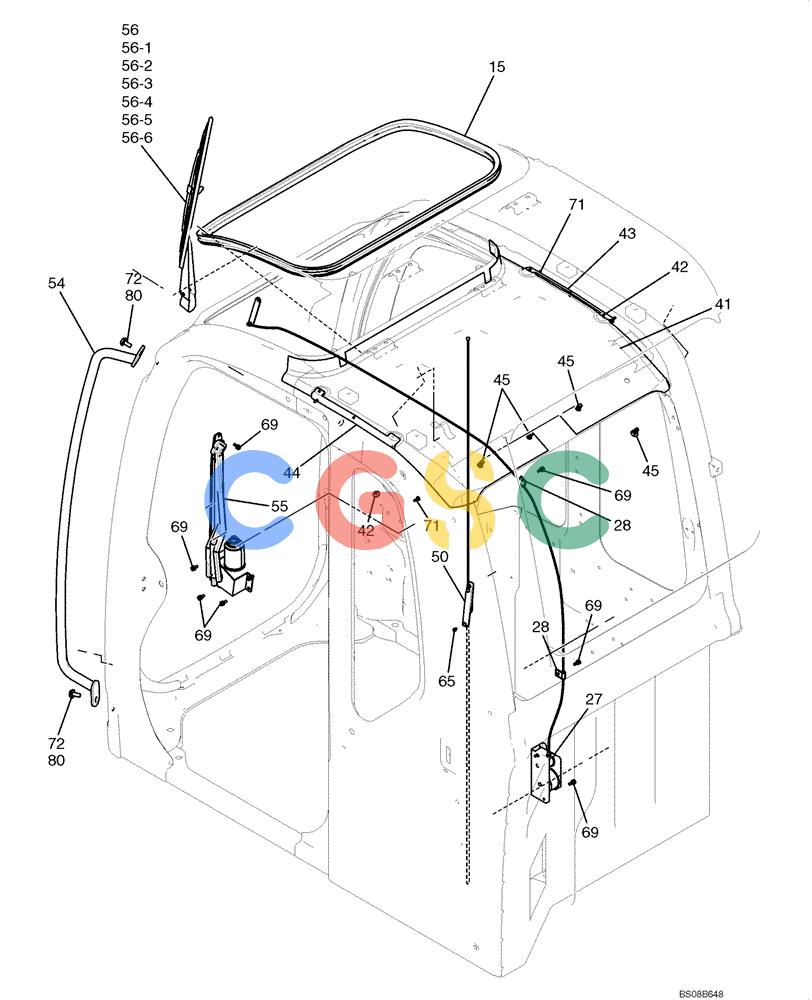

纽荷兰零件查询(E70BSR) - COMPACT CRAWLER EXCAVATOR BTW YT05-15001 - 18000 (NA) (4/08-) (02-39-00[02]) - CAB ASSEMBLY (GRAYISH BLACK) (YT02C00044F2), PAGE 2 OF 4 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
329 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 15. | YN02C03669P2 | [1] | GASKET | SMStrip, Weather |
| 27. | YB02C01131F1 | [1] | CABLE | KOBAssembly |
| 28. | YT02C01161P1 | [2] | CLAMP | KOB |
| 41. | YB02C01111P2 | [1] | PAD | KOB |
| 42. | YN02C01820P1 | [4] | CLIP | KOB |
| 43. | YB02C01222P1 | [1] | PLATE | KOB |
| 44. | YB02C01223P1 | [1] | PLATE | KOB |
| 45. | YN02C01880P1 | [4] | RIVET,8.1mm OD x 25mm L | KOB |
| 50. | YT54S00018F1 | [1] | ANTENNA | KOBAssembly |
| 54. | YN02C02983P1 | [1] | HANDRAIL | KOB |
| 55. | YN53C00012F2 | [1] | WIPER MOTOR | KOBAssembly |
| 56. | YN53C01003F1 | [1] | WIPER ARM | KOB-- is a complete arm & wiper assembly -- Incls. Refs. 56-1 - 56-6 |
| 56-1. | YN53C01003S001 | [1] | WIPER ARM | KOB-- is just the wiper arm, 505.6mm Long (19-29/32 in) |
| 56-2. | YN53C01003S002 | [1] | WIPER BLADE | KOB-- is just the wiper blade, 600mm Long (23-5/8 in) Superseded by part number: 47669054 |
| 56-3. | YN53C01003S003 | [2] | SCREW | KOBMachine -- No service components |
| 56-4. | YN53C01003S004 | [1] | COVER | KOB |
| 56-5. | YN53C01003S005 | [1] | STOP | KOB Superseded by part number: YN53C00002S003 |
| 56-6. | YN53C01003S006 | [2] | BRACKET | KOB |
| 65. | ZS31C05010 | [4] | BOLT,Phillips Drive, Pan HD, M5 x 10mm | KOBMachine -- M05x0.8x10mm |
| 69. | ZM66C06016 | [18] | BOLT | KOBM06x1.0x16mm (Incls. Washer & Lockwasher) |
| 71. | YN02C01875D1 | [4] | SCREW | KOBMachine -- M05x0.8x16mm Long |
| 72. | YR02C01571D2 | [2] | SCREW | KOBM10x1.50x25mm |
| 80. | ZW16H10000 | [2] | WASHER | KOBID 11 x OD 24 x Th 3.2mm |
