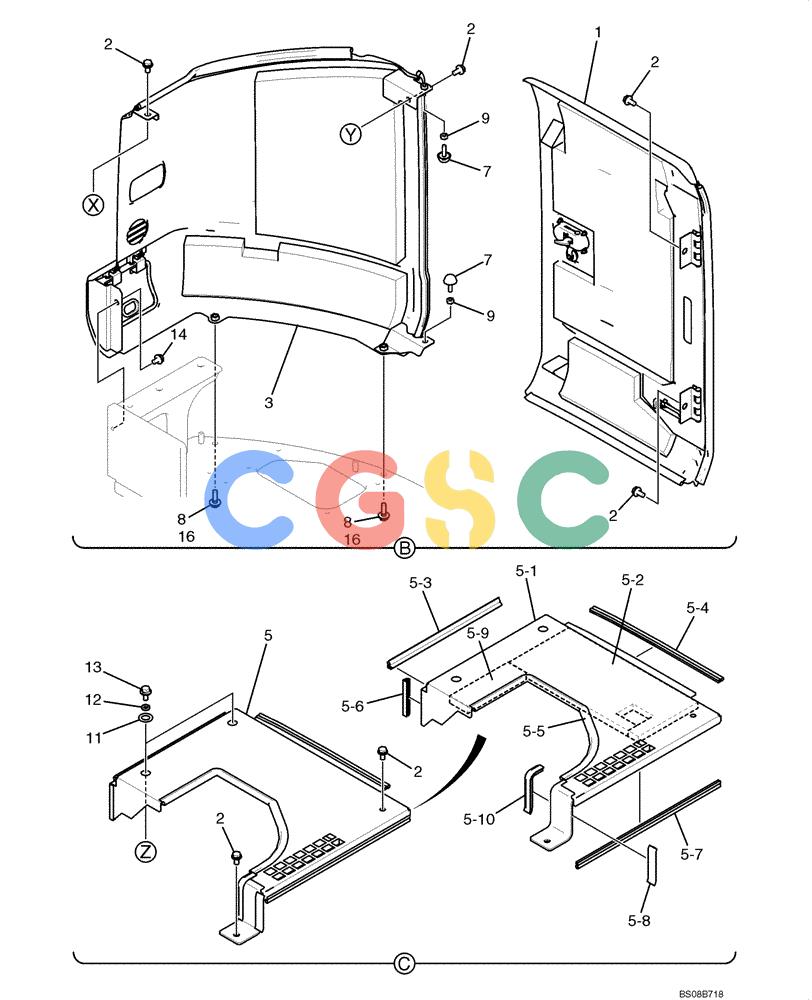

纽荷兰零件查询(E70BSR) - COMPACT CRAWLER EXCAVATOR BTW YT05-15001 - 18000 (NA) (4/08-) (02-45-01[02]) - GUARD ASSEMBLY (RIGHT) (YT21C00039F1), PAGE 2 OF 3 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
679 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YT21C01663F1 | [1] | PANEL | KOBPanel Assembly, Incls. Refs. 1-1 - 1-13 Superseded by part number: YT21C02048F1 |
| 2. | ZM73C12025 | [11] | BOLT,M12x25mm - Course Thread | KOBM12x1.75x25mm (Incls. Washer) |
| 3. | YT21C01836F1 | [1] | PANEL | KOBPanel Assembly, Incls. Refs. 3-1 - 3-8 |
| 5. | YT21C01954F1 | [1] | COVER ASSY | KOBIncls. Refs. 5-1 - 5-10 |
| 5-1. | YT21C01955P1 | [1] | COVER | KOB |
| 5-2. | YT21C01891P1 | [1] | INSULATION | KOBInsulation |
| 5-3. | PM21C01136D1 | [1] | WEATHERSEAL STRIP | KOBWeatherstrip |
| 5-4. | YR21C01168D1 | [1] | WEATHERSTRIP | KOB480mm Long (18-57/64 in) |
| 5-5. | PM21C01152DC | [1] | WEATHERSTRIP | KOB770mm Long (30-5/16 in) |
| 5-6. | YN21C01136D6 | [1] | STRIP | KOBWeather |
| 5-7. | YT21C01159D7 | [1] | WEATHERSTRIP | KOB |
| 5-8. | LS21C01093D1 | [1] | TRIM | KOB120mm Long (4-23/32 in) |
| 5-9. | YT21C01893P1 | [1] | INSULATION | KOBInsulation |
| 5-10. | LS21C01093DV | [1] | GASKET | KOB |
| 7. | YN21C03212P1 | [2] | STOP | KOBØ36 x 20mm Long (M10x1.25x33mm Long) |
| 8. | ZS18C12040 | [2] | SCREW,Hex, M12 x 40mm | KOBM12x1.75x40mm |
| 9. | ZN18F10008 | [2] | NUT | KOBM10x1.25mm |
| 11. | YN21C01395P1 | [2] | WASHER | KOBID 23 x OD 38 x Th 2.0mm |
| 12. | YN21C01396P1 | [2] | WASHER | KOBID 13 x OD 22 x Th 4.5mm |
| 13. | ZM32C12030 | [2] | BOLT | KOBM12x1.75x30mm (Incls. Washer & Lockwasher) |
| 14. | ZM73C12020 | [1] | BOLT,M12x20mm - Course Thread | KOBM12x1.75x20mm (Incls. Washer) |
| 16. | 2418T10357 | [2] | WASHER | KOBID 13 x OD 30 x Th 3.2mm Superseded by part number: 2418T12345 |
