纽荷兰零件查询(E70BSR) - COMPACT CRAWLER EXCAVATOR BTW YT05-15001 - 18000 (NA) (4/08-) (02-45-01[03]) - GUARD ASSEMBLY (RIGHT) (YT21C00039F1), PAGE 3 OF 3 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
529 次

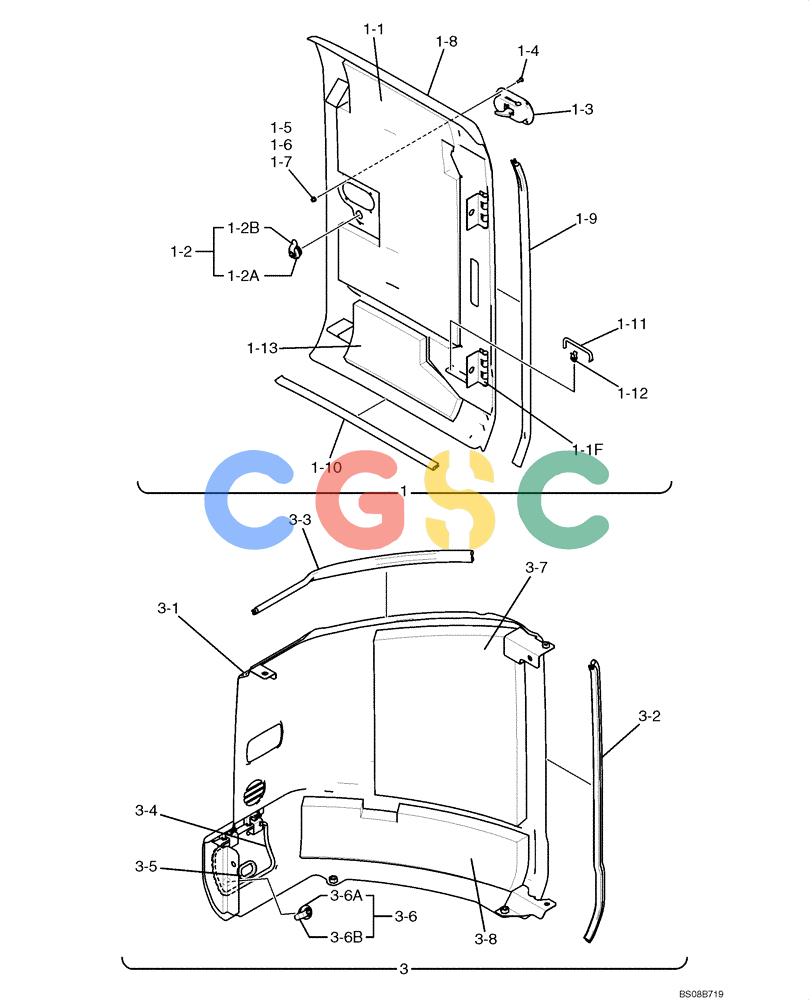

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YT21C01663F1 | [1] | PANEL | KOBPanel Assembly, Incls. Refs. 1-1 - 1-13 Superseded by part number: YT21C02048F1 |
| 1-1. | YT21C01666P1 | [1] | PANEL | KOBIncls. Refs. 1-1F |
| 1-1F. | YY21C02345P1 | [2] | HINGE | KOB |
| 1-2. | PM21C01268F1 | [1] | LOCK | KOBAssembly, Incls. Refs. 1-2A & 1-2B |
| 1-2A. | YR22C01025P2 | [1] | LOCK | KOB |
| 1-2B. | PM21C01269P1 | [1] | PLATE | KOB |
| 1-3. | YF21C01796P1 | [1] | LOCK | KOB |
| 1-4. | PH22C01023P1 | [4] | BOLT | KOBM05x0.8x20mm Long |
| 1-5. | ZW16H05000 | [4] | WASHER | KOBID 05 x OD 12 x Th 2.8mm |
| 1-6. | ZW26X05000 | [4] | LOCK WASHER | KOBLock -- ID 05 x OD 09 x Th 1.3mm |
| 1-7. | ZN18C05004 | [4] | NUT | KOBM05x0.8mm |
| 1-8. | YT21C01697P1 | [1] | FOAM INSULATION | KOBInsulation Superseded by part number: YT21C02049P1 |
| 1-9. | YT21C01164DK | [1] | WEATHERSTRIP | KOB |
| 1-10. | 2427P1836D27 | [1] | STRIP | KOBWeather |
| 1-11. | YF21C01490P1 | [1] | STAY | KOBStay |
| 1-12. | YR21C01123P1 | [1] | COLLAR | KOBClip |
| 1-13. | YT21C01879P1 | [1] | FOAM INSULATION | KOBInsulation |
| 3. | YT21C01836F1 | [1] | PANEL | KOBPanel Assembly, Incls. Refs. 3-1 - 3-8 |
| 3-1. | YT21C01837P1 | [1] | PANEL | KOB |
| 3-2. | YN21C01528DC | [1] | WEATHERSTRIP | KOB |
| 3-3. | PH21C01136D5 | [1] | WEATHERSTRIP | KOB670mm Long (26-3/8 in) |
| 3-4. | PE21C01135DH | [1] | GASKET | KOB |
| 3-5. | PM21C01255P2 | [1] | GROMMET | KOB |
| 3-7. | YT21C01929P1 | [1] | INSULATION | KOBInsulation |
| 3-8. | YT21C01930P1 | [1] | INSULATION | KOBInsulation |
