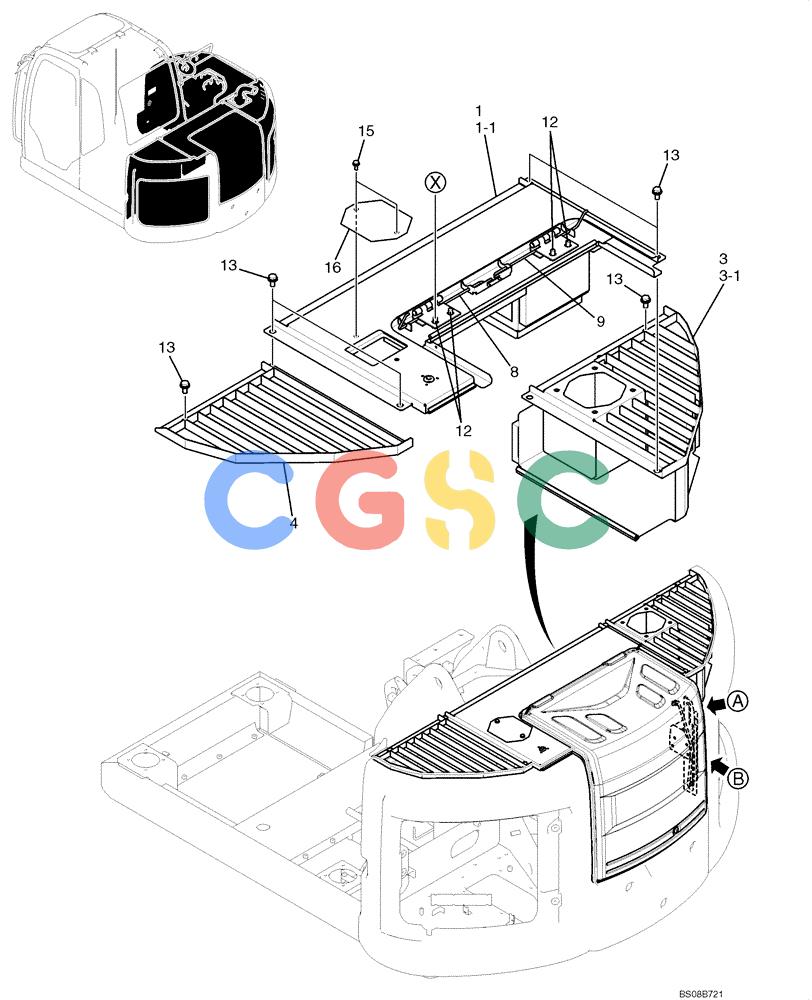

纽荷兰零件查询(E70BSR) - COMPACT CRAWLER EXCAVATOR BTW YT05-15001 - 18000 (NA) (4/08-) (02-45-03[01]) - GUARD INSTALLATION (TOP) (YT21C00037F1), PAGE 1 OF 3 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
459 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YT22C00014F1 | [1] | Cover Assembly, Incls. Refs. 1-1 - 1-10 | |
| 1-1. | YT22C01186P1 | [1] | Cover | |
| 3. | YT22C01190F1 | [1] | COVER ASSY | KOBIncls. Refs. 3-1 - 3-5 |
| 3-1. | YT22C01236P1 | [1] | Cover | |
| 4. | YT22C01191P1 | [1] | COVER | KOB Superseded by part number: YT22C01191P2 |
| 8. | YT22C01178P1 | [1] | SPRING | KOB |
| 9. | YT22C01179P1 | [1] | SPRING | KOB |
| 12. | ZM73C12020 | [4] | BOLT,M12x20mm - Course Thread | KOBM12x1.75x20mm (Incls. Washer) |
| 13. | ZM73C12025 | [10] | BOLT,M12x25mm - Course Thread | KOBM12x1.75x25mm (Incls. Washer) |
| 15. | ZM73C08020 | [2] | BOLT,M8x20mm - Course Thread | KOBM08x1.25x20mm (Incls. Washer) |
| 16. | YT22C01185P1 | [1] | PLATE | KOB |
