纽荷兰零件查询(E70BSR) - COMPACT CRAWLER EXCAVATOR BTW YT05-15001 - 18000 (NA) (4/08-) (02-45-03[03]) - GUARD INSTALLATION (TOP) (YT21C00037F1), PAGE 3 OF 3 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
461 次

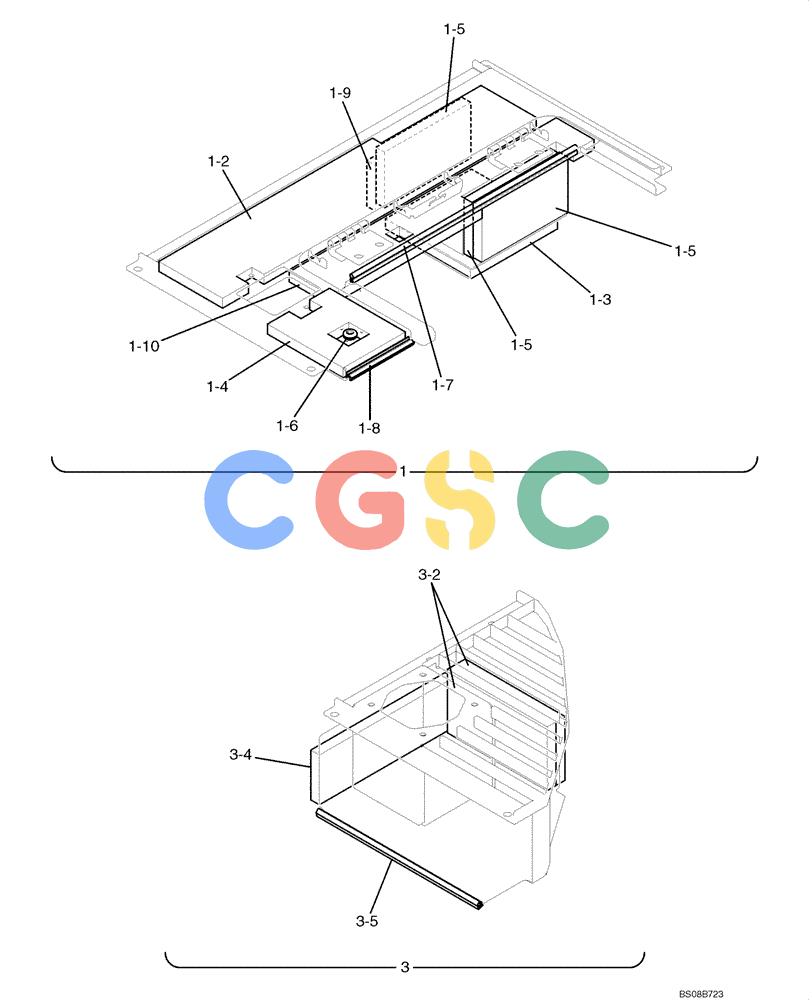

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YT22C00014F1 | [1] | Cover Assembly, Incls. Refs. 1-1 - 1-10 | |
| 1-2. | YT22C01194P1 | [1] | INSULATION | KOBInsulation |
| 1-3. | YT22C01218P1 | [1] | INSULATION | KOBInsulation |
| 1-4. | YT22C01195P1 | [1] | Insulation | |
| 1-5. | YT22C01196P1 | [3] | INSULATION | KOBInsulation |
| 1-6. | YR20M01035P1 | [1] | GROMMET | KOB |
| 1-7. | YZ21C01044D1 | [1] | WEATHERSTRIP | KOB |
| 1-8. | YN21C01136DE | [1] | WEATHERSTRIP | KOB |
| 1-9. | YT22C01199P1 | [1] | INSULATION | KOBInsulation |
| 1-10. | YT22C01198P1 | [1] | INSULATION | KOBInsulation |
| 3. | YT22C01190F1 | [1] | COVER ASSY | KOBIncls. Refs. 3-1 - 3-5 |
| 3-2. | YT22C01144P1 | [2] | INSULATION | KOBInsulation |
| 3-4. | YT22C01163P1 | [1] | INSULATION | KOBInsulation |
| 3-5. | PM21C01091D4 | [1] | WEATHERSTRIP | KOB |
