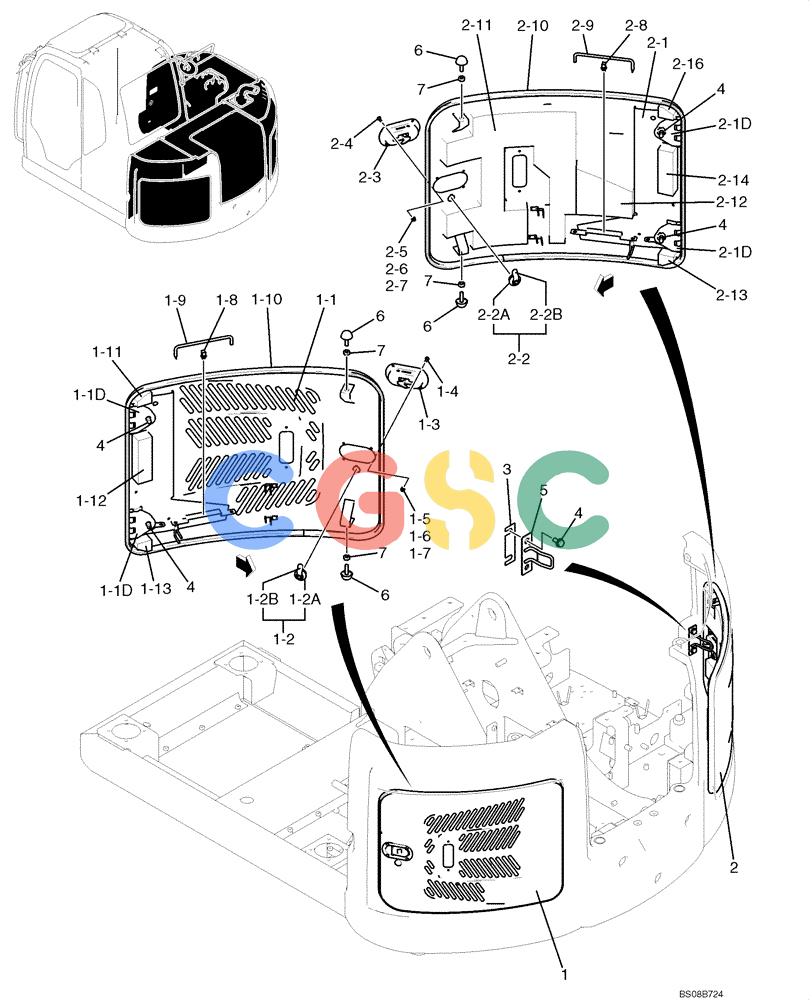

纽荷兰零件查询(E70BSR) - COMPACT CRAWLER EXCAVATOR BTW YT05-15001 - 18000 (NA) (4/08-) (02-45-04[00]) - GUARD INSTALLATION (BACK) (LF21C00010F1) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
377 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | LF21C01161F1 | [1] | COVER | KOBAssembly, Left Hand, Incls. Refs. 1-1 - 1-13 |
| 1-1. | LF21C01162P1 | [1] | COVER | KOBIncls. Refs. 1-1D Superseded by part number: LF21C01162P2 |
| 1-1D. | YF21C01331P1 | [2] | HINGE | KOB |
| 1-2. | PM21C01268F1 | [1] | LOCK | KOBAssembly, Incls. Refs. 1-2A & 1-2B |
| 1-2A. | YR22C01025P2 | [1] | LOCK | KOB |
| 1-2B. | PM21C01269P1 | [1] | PLATE | KOB |
| 1-3. | YF21C01566P1 | [1] | LOCK | KOB |
| 1-4. | PH22C01023P1 | [4] | BOLT | KOBM05x0.8x20mm Long |
| 1-5. | ZW16H05000 | [4] | WASHER | KOBID 05 x OD 12 x Th 2.8mm |
| 1-6. | ZW26X05000 | [4] | LOCK WASHER | KOBLock -- ID 05 x OD 09 x Th 1.3mm |
| 1-7. | ZN18C05004 | [4] | NUT | KOBM05x0.8mm |
| 1-8. | YR21C01123P1 | [1] | COLLAR | KOBClip |
| 1-9. | YF21C01335P1 | [1] | STAY | KOBStay |
| 1-10. | YT21C01039DU | [1] | WEATHERSTRIP | KOB |
| 1-11. | YT21C01886P1 | [1] | RUBBER SEAL | KOB |
| 1-12. | YT21C01937P1 | [1] | RUBBER SLEEVE | KOBRubber |
| 1-13. | YT21C01887P1 | [1] | RUBBER SEAL | KOB |
| 2. | YT21C01689F1 | [1] | COVER | KOBAssembly, Right Hand, Incls. Refs. 2-1 - 2-16 |
| 2-1. | YT21C01919P1 | [1] | COVER | KOBIncls. Refs. 2-1D |
| 2-11. | YT21C01924P1 | [1] | INSULATION | KOBInsulation |
| 2-12. | YT21C01923P1 | [1] | Insulation | |
| 3. | YF21C01782D1 | [4] | SHIM | KOB |
| 4. | ZM73C12025 | [8] | BOLT,M12x25mm - Course Thread | KOBM12x1.75x25mm (Incls. Washer) |
| 5. | YF21C01551P1 | [2] | STRIKER PLATE | KOB Superseded by part number: YF21C01802P1 |
| 6. | YN21C03212P1 | [4] | STOP | KOBØ36 x 20mm Long (M10x1.25x33mm Long) |
| 7. | ZN18F10008 | [4] | NUT | KOBM10x1.25mm |
