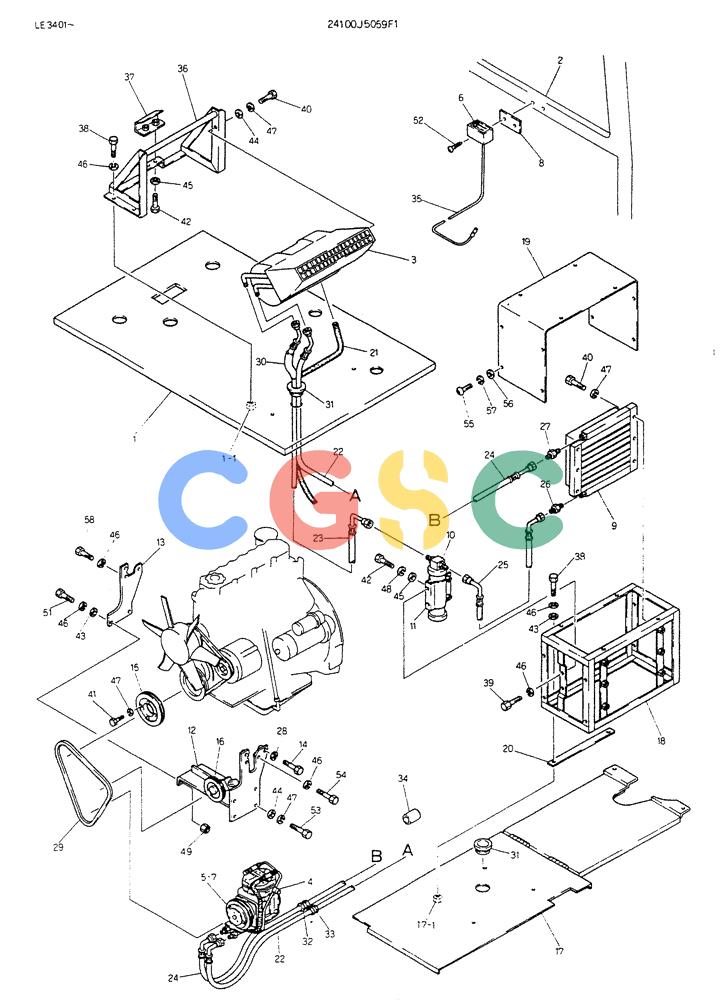

神钢零件查询(K903B) - EXCAVATOR ASN LE3401 (1/85-12/03) (08-026) - COOLER ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
663 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J5059F1 | [1] | COOLER ASSY | |
| 1. | 2422P603 | [1] | PLATE, FLOOR | |
| 1-1. | ZN11C10008 | [6] | NUT | KOBM10x1.50mm Superseded by part number: ZN18C10008 |
| 2. | 2427P1798 | [1] | CAB | |
| 3. | 24100U323 | [1] | UNIT, COOLING | UNIT, COOLING |
| 4. | 2450U214 | [1] | COMPRESSOR | |
| 5. | 2415U205 | [1] | CLUTCH | |
| 6. | 24100U324 | [1] | CONTROL ASSY | |
| 7. | 2418Z688 | [3] | WASHER | |
| 8. | 24100U325 | [1] | BRACKET | |
| 9. | 2484U167 | [1] | CONDENSER | |
| 10. | 2427R420 | [1] | TANK, LIQUID | |
| 11. | 2416Z323 | [1] | BRACKET | |
| 12. | 2416N28D4 | [1] | BRACKET | |
| 13. | 2418T109D4 | [1] | PLATE | |
| 14. | 2420T4431 | [1] | CAPSCREW | |
| 15. | 2407P643 | [1] | PULLEY | |
| 16. | 24100U330 | [1] | PULLEY ASSY | |
| 17. | 2414P2963 | [1] | COVER | |
| 17-1. | ZN12C10008 | [4] | NUT | KOBM10x1.50mm Superseded by part number: ZN18C10008 |
| 18. | 2416N2793 | [1] | BRACKET | |
| 19. | 2414T2028 | [1] | COVER | |
| 20. | 2418T10817 | [1] | PLATE | |
| 21. | 2444Z2203 | [1] | DRAIN | |
| 22. | 2444R904D3 | [1] | HOSE | |
| 23. | 2444R906D3 | [1] | HOSE | |
| 24. | 2444R907D1 | [1] | HOSE | |
| 25. | 2444R880D2 | [1] | HOSE | |
| 26. | 2444Z2204 | [1] | JOINT | |
| 27. | 2444Z2205 | [1] | JOINT | |
| 28. | ZW22X14000 | [1] | LOCK WASHER | KOBID 14 x OD 24.5 x Th 3.5mm Superseded by part number: ZW26X14000 |
| 29. | R06P0004D11 | [1] | V-BELT | |
| 30. | 2416Z322 | [1] | INSULATOR | |
| 31. | 2420Z699 | [2] | GROMMET | KOB |
| 32. | 2420Z967 | [1] | GROMMET | |
| 33. | 2420Z966 | [1] | GROMMET | |
| 34. | 2405Z147 | [6] | BUSHING | |
| 35. | 2479Z846 | [1] | HARNESS, WIRING | |
| 36. | 2416P7284 | [1] | BRACKET | |
| 37. | 2416T11041 | [1] | BRACKET | |
| 38. | ZS13C10025 | [6] | CAPSCREW | KOBSCREW M10x1.50x25mm Superseded by part number: ZS18C10025 |
| 39. | ZS13C10016 | [2] | SCREW | KOBM10x1.50x16mm Superseded by part number: ZS18C10016 |
| 40. | ZS16C08016 | [8] | SCREW | KOBM08x1.25x16mm Superseded by part number: ZS18C08016 |
| 41. | ZS13C08045 | [4] | SCREW | KOBM08x1.25x45mm Superseded by part number: ZS18C08045 |
| 42. | ZS11C06020 | [4] | CAPSCREW M06x1.0x20mm | CAPSCREW M06x1.0x20mm |
| 43. | ZW16X10000 | [6] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 44. | ZW16X08000 | [10] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| 45. | ZW16X06000 | [4] | WASHER | KOBID 06 x OD 12.5 x Th 1.6mm Superseded by part number: 86588450 |
| 46. | ZW22X10000 | [17] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 47. | ZW22X08000 | [16] | LOCK WASHER | KOBID 08 x OD 15.4 x Th 2.0mm Superseded by part number: 83990583 |
| 48. | ZW22X06000 | [2] | LOCK WASHER ID 06 x OD 12.2 x Th 1.5mm | LOCK WASHER ID 06 x OD 12.2 x Th 1.5mm |
| 49. | ZN12C10008 | [2] | NUT | KOBM10x1.50mm Superseded by part number: ZN18C10008 |
| 51. | ZS13C10030 | [2] | SCREW | KOBM10x1.50x30mm Superseded by part number: ZS18C10030 |
| 52. | ZS32T60014 | [2] | SCREW, TAPPING | |
| 53. | ZS13C08025 | [8] | SCREW | KOBM08x1.25x25mm Superseded by part number: ZS18C08025, 77276313 |
| 54. | ZS13F10035 | [3] | SCREW | KOB Superseded by part number: ZS18F10035 |
| 55. | ZS31C05010 | [12] | BOLT,Phillips Drive, Pan HD, M5 x 10mm | KOBM05x0.8x10mm |
| 56. | ZW16P05000 | [12] | WASHER | KOBID 05 x OD 10 x Th 1.0mm |
| 57. | ZW22X05000 | [12] | LOCK WASHER | KOBID 05 x OD 09.2 x Th 1.3mm |
| 58. | ZS13F10025 | [2] | SCREW | KOBCAPSCREW Superseded by part number: ZS18F10025 |
