神钢零件查询(K903B) - EXCAVATOR ASN LE3401 (1/85-12/03) (08-027) - FAN ASSY (FOR EXPORT) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
885 次

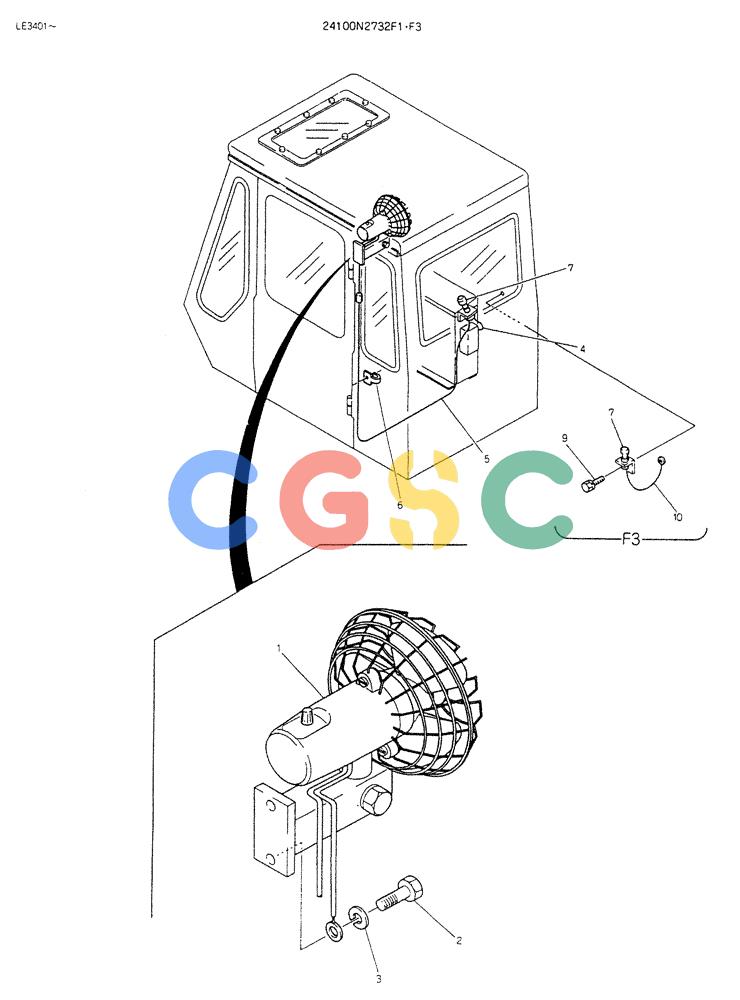

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N2732F1 | [1] | FAN ASSY AUTOMOBILE, Serial Range: LE3401-LE4161 | FAN ASSY AUTOMOBILE, Serial Range: LE3401-LE4161 |
| . . | 24100N2732F3 | [1] | FAN ASSY AUTOMOBILE, Start Serial: LE4162- | FAN ASSY AUTOMOBILE, Start Serial: LE4162- |
| 1. | 2474U101F2 | [1] | FAN | KOBAUTOMOBILE Superseded by part number: 2474U101F2M |
| 2. | ZS31C06016 | [2] | SCREW,Phillips Drive, Pan HD, M6 x 16mm | KOBM06x1.0x16mm |
| 3. | ZW26X06000 | [2] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 4. | 2479Z845 | [1] | HARNESS, Serial Range: LE3401-LE4161 | HARNESS, Serial Range: LE3401-LE4161 |
| 5. | 2479Z844 | [1] | HARNESS | HARNESS |
| 6. | 2432Z309D2 | [3] | CLAMP | KOB |
| 7. | 2479R539 | [1] | SWITCH | KOB |
| 9. | ZM11C06014 | [1] | SCREW | KOBSEMS-BOLT, Start Serial: LE4162- |
| 10. | 2479Z845D3 | [1] | HARNESS, Start Serial: LE4162- | HARNESS, Start Serial: LE4162- |
