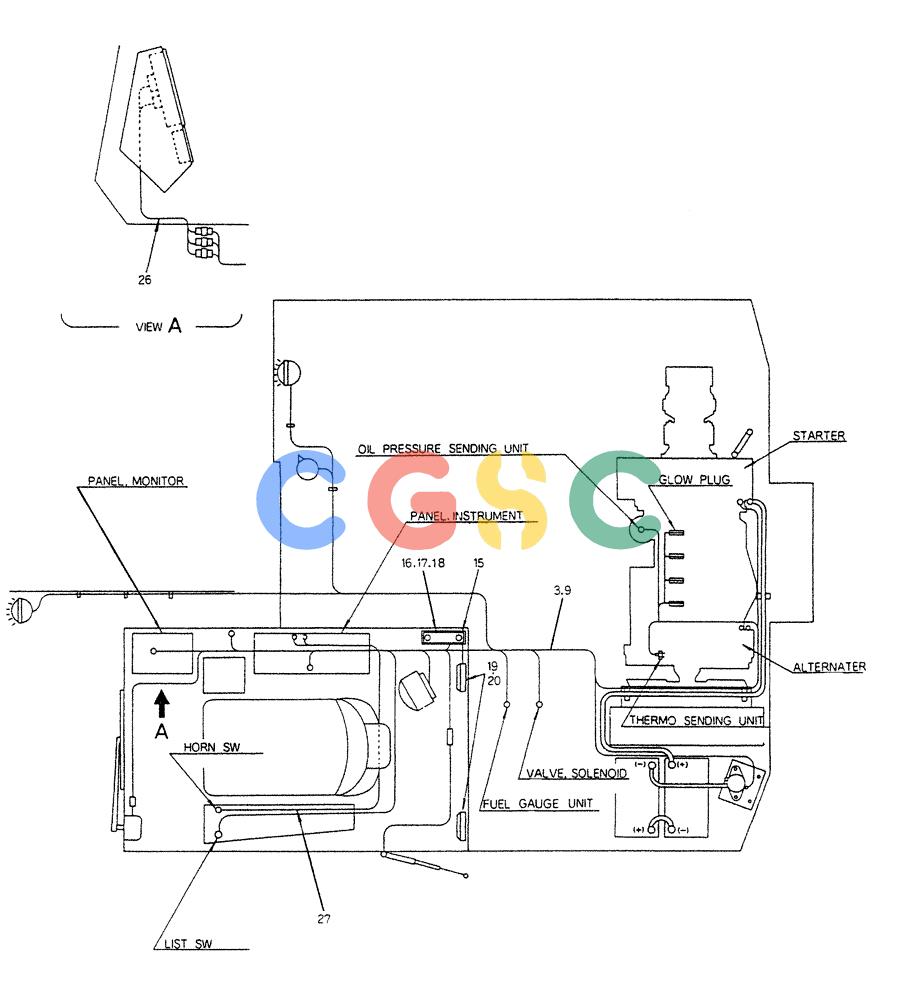

神钢零件查询(K903B) - EXCAVATOR ASN LE3401 (1/85-12/03) (08-040) - WIRING ASSY, ELEC (FOR EXPORT) P/N 24100N2815F3 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
911 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N2815F3 | [1] | WIING ASSY, ELEC, Serial Range: LE3401-LE4402 | |
| . . | 24100N2815F6 | [1] | WIRING ASSY, ELEC LE4403 to | |
| 3. | 2479U297 | [1] | HARNESS, WIRING, Serial Range: LE3401-LE4402 | |
| 9. | 2479U311 | [1] | HARNESS | KOB, Start Serial: LE4403 |
| 15. | 2479U253D2 | [1] | RADIO | KOB, Start Serial: LE4403 |
| 16. | 2416P2954 | [1] | BRACKET, Start Serial: LE4403 | BRACKET, Start Serial: LE4403 |
| 17. | ZS31C06010 | [2] | SCREW,Phillips Drive, Pan HD, M6 x 10mm | KOBM06x1.0x10mm, Start Serial: LE4403 |
| 18. | ZW26X06000 | [2] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm, Start Serial: LE4403 |
| 19. | 2479U244 | [1] | SPEAKER | KOB, Serial Range: LE4403-LE5350 |
| 20. | ZS32T40025 | [4] | SCREW, TAPPING M04x25mm Self-Taper, Start Serial: LE4403 | SCREW, TAPPING M04x25mm Self-Taper, Start Serial: LE4403 |
| 26. | 2479R692 | [1] | WIRE HARNESS | KOB, Start Serial: LE4403 |
| 27. | 2479Z926 | [1] | HARNESS | KOB, Start Serial: LE4403 |
