神钢零件查询(K903B) - EXCAVATOR ASN LE3401 (1/85-12/03) (08-041) - LIGHT ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
419 次

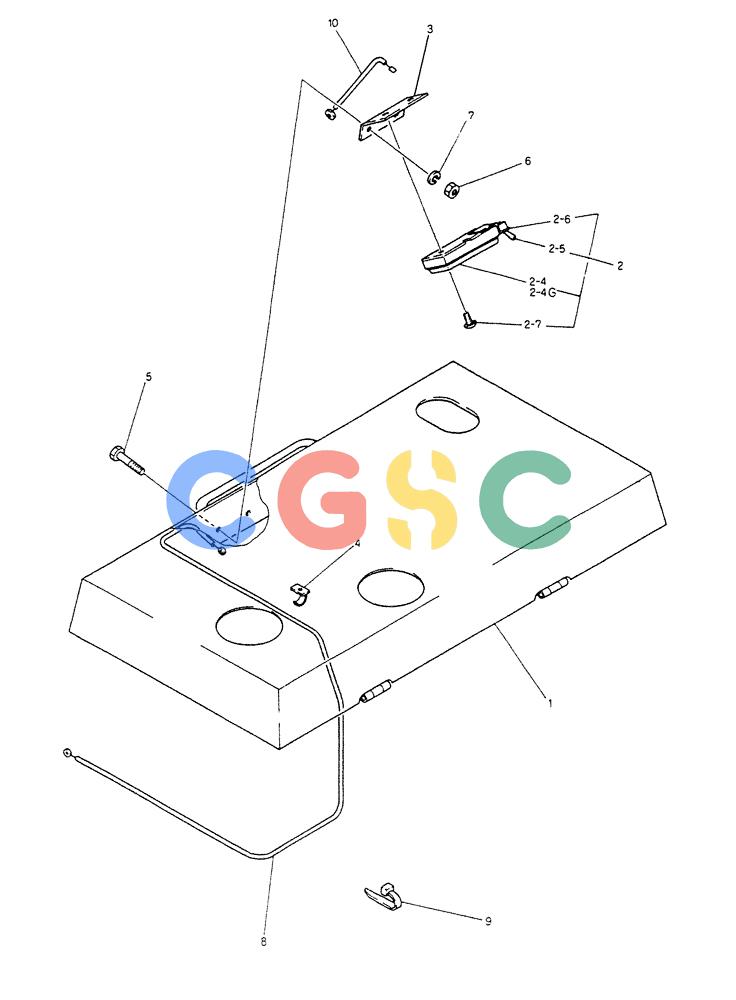

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N2736F1 | [1] | LIGHT ASSY | |
| 1. | 2414N1844 | [1] | GUARD | |
| 2. | 2456R117F2 | [1] | LIGHT | KOB |
| 2-4. | 4056R4F1 | [1] | LAMP | KOB |
| 2-4G. | 4056Z19D1 | [1] | LIGHT | KOB |
| 2-5. | 2456R117S5 | [1] | SWITCH | KOB |
| 2-6. | 2456R117S6 | [1] | BRACKET | |
| 2-7. | ZS41C04008 | [1] | CAPSCREW,M4 x 8mm | KOBSCREW M04x0.7x08mm |
| 3. | 2416T10795 | [1] | BRACKET | |
| 4. | 2432Z309D2 | [6] | CLAMP | KOB |
| 5. | ZS13C06016 | [2] | SCREW | KOBM06x1.0x16mm |
| 6. | ZN11C06005 | [2] | NUT | KOBNUT M06x1.0mm Superseded by part number: ZN18C06005 |
| 7. | ZW22X06000 | [2] | LOCK WASHER ID 06 x OD 12.2 x Th 1.5mm | LOCK WASHER ID 06 x OD 12.2 x Th 1.5mm |
| 8. | 2479Z852D2 | [1] | HARNESS | |
| 9. | 2432Z290D2 | [5] | CLIP | KOBWire Ties -- 100mm Long Superseded by part number: YT50C01100P1 |
| 10. | 2479Z761 | [1] | HARNESS | KOBHARNESS |
