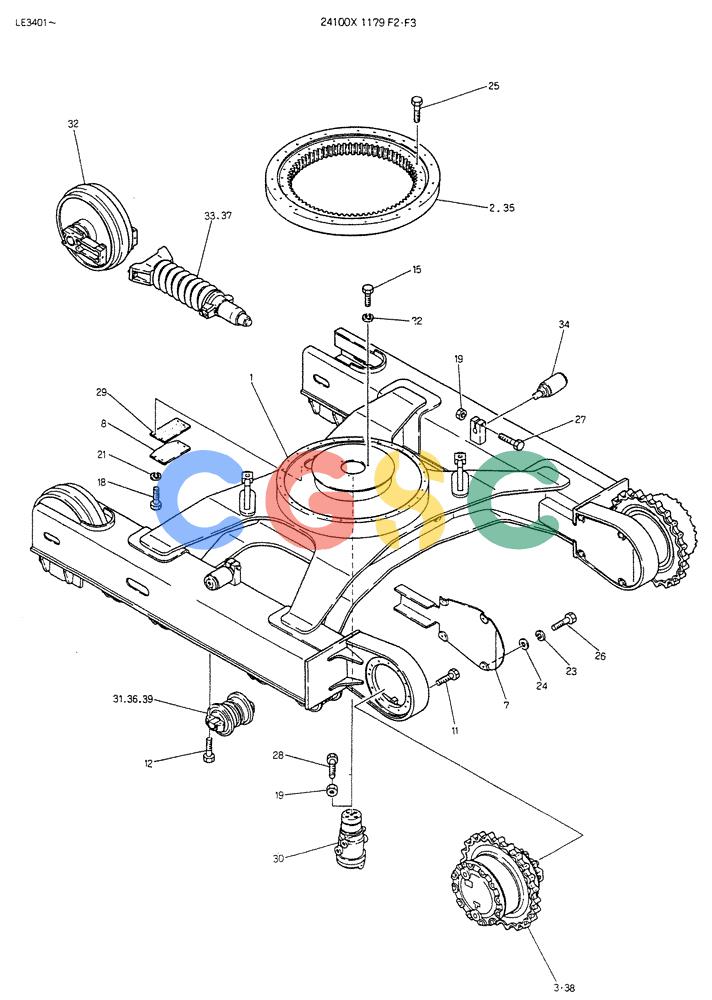

| . . | 24100X1179F2 | [1] | INSTAL,LOW, Serial Range: LE3401~-LE4S36 | |
| . . | 24100X1179F3 | [1] | INSTAL, LOW, Start Serial: LE4637~ | |
| 1. | 2422X549 | [1] | FRAME,LOW | |
| 2. | 2425U137 | [1] | BEARING(35), Serial Range: LE3401--LE3412 | |
| 3. | 24100J3247F4 | [2] | MOTOR ASSY 2 17-0 1 (3 8), Serial Range: LE3401--LE4636 | MOTOR ASSY 2 17-0 1 (3 8), Serial Range: LE3401--LE4636 |
| 7. | 2414N1642 | [2] | COVER | COVER |
| 8. | 2414T1597 | [1] | COVER | KOBLE3401-, Serial Range: -LE5380 |
| 9. | 2414T2731 | [1] | COVER LE5381- to | |
| 11. | ZS13C14045 | [24] | CAPSCREW M14x2.0x45mm | CAPSCREW M14x2.0x45mm |
| 12. | ZS13C14055 | [40] | SCREW | KOBM14x2.0x55mm Superseded by part number: ZS18C14055 |
| 15. | ZS23C08020 | [3] | SCREW,Hex Socket Head, M8 x 20mm | KOB |
| 18. | ZS16C10014 | [4] | SCREW | KOBM10x1.50x14mm Superseded by part number: ZS18C10014 |
| 19. | ZN12C16010 | [3] | NUT | KOB |
| 21. | ZW26X10000 | [4] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 22. | ZW22X08000 | [3] | LOCK WASHER | KOBID 08 x OD 15.4 x Th 2.0mm Superseded by part number: 83990583 |
| 23. | ZW22X12000 | [8] | LOCK WASHER | KOBID 12 x OD 21.5 x Th 3.0mm Superseded by part number: ZW26X12000 |
| 24. | ZW11X12000 | [8] | WASHER | KOBID 12 x OD 24 x Th 2.3mm Superseded by part number: ZW16X12000 |
| 25. | ZS13C6100 | [30] | CAPSCREW | |
| 26. | ZS13C12025 | [8] | SCREW | KOBM12x1.75x25mm Superseded by part number: ZS18C12025 |
| 27. | ZS13C16075 | [2] | SCREW | KOBM16x2.0x75mm |
| 28. | ZS13C16110 | [1] | SCREW | KOBM16x2.0x110mm |
| 29. | 2418T8720 | [1] | PACKING | KOB |
| 30. | 2436U881F1 | [1] | JOINT, SWIVEL | JOINT, SWIVEL |
| 31. | 24100N2301F2 | [10] | HOLDER ASSY,P.206-01 LE34, Serial Range: 01--LE3552 | |
| 32. | 24100U63566 | [2] | COLER ASSY,P.203-01 | |
| 33. | 24100N2205F22 | [2] | SPRING ASSY,TRACK,P.211-01 (3 7) LE34, Serial Range: 01--LE4160 | |
| 34. | 24100N2165F2 | [2] | TRACK ROLLER | KOBROLLER ASSY,P.219-C1 |
| 35. | 2425U232F1 | [1] | RING | KOBBEARING,P. 22 1-0 1A, Start Serial: LE3413- Superseded by part number: 2425U261F1 |
| 36. | 24100N2301F3 | [10] | ROLLER ASSY,P. 2 0 6-H 1 (31)(3 9), Serial Range: LE3953--LE4666 | |
| 37. | 24100N2766F2 | [2] | TRACK ASSY | KOBP. 2 11-0 1 A (33), Start Serial: LE416l- |
| 38. | 24100J3247F5 | [2] | MOTOR ASSY P. 2 17-0 1, Start Serial: LE4637- | MOTOR ASSY P. 2 17-0 1, Start Serial: LE4637- |
| 39. | 24100N2301F4 | [10] | ROLLER ASSY ROLLER ASSY,P. 2 0 6-01 \u2014(36), Start Serial: LE4667~ | ROLLER ASSY ROLLER ASSY,P. 2 0 6-01 —(36), Start Serial: LE4667~ |
