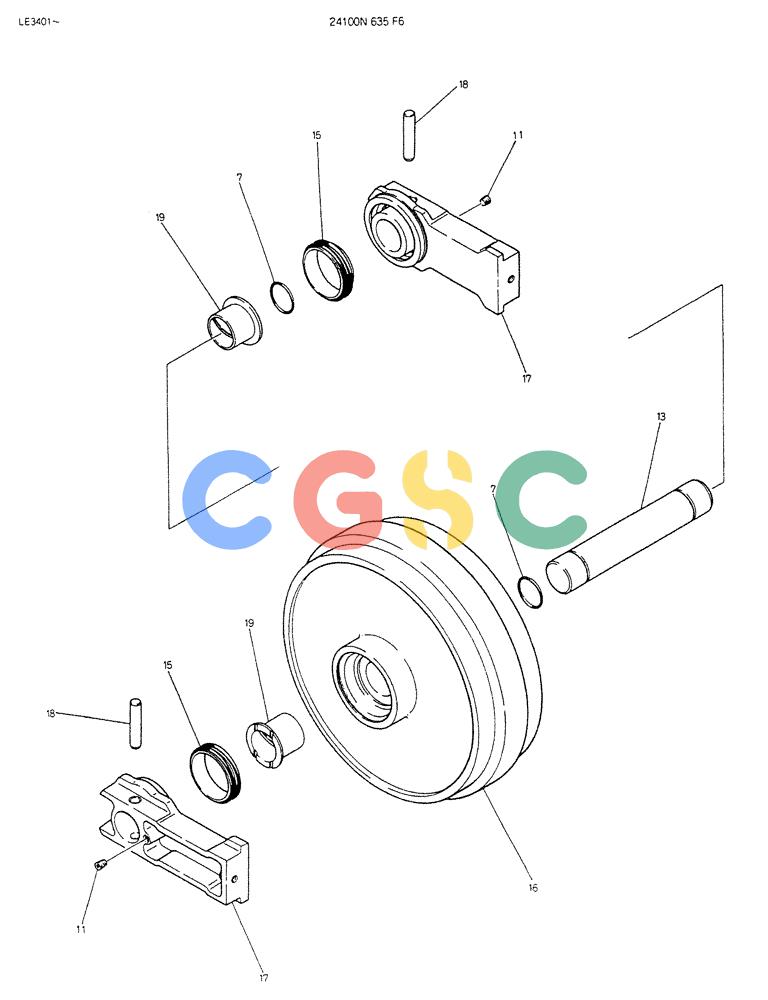

神钢零件查询(K903B) - EXCAVATOR ASN LE3401 (1/85-12/03) (05-002) - IDLER ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
932 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N635F6 | [1] | IDLER WHEEL | KOB Superseded by part number: 24100N2970F1 |
| 7. | ZD11G04500 | [2] | O-RING,44.40mm ID x 50.60mm OD x 3.10mm | KOBID 44.40 ± 0.41 x OD 50mm |
| 11. | ZE82T02000 | [2] | PLUG | KOBPipe, 1.25" PT |
| 13. | 2410P504 | [1] | SHAFT | KOB |
| 15. | R45P0018D9 | [2] | SEAL | KOB Superseded by part number: ZD58F07629 |
| 16. | 2413N259 | [1] | IDLER | IDLER |
| 17. | 2416N1816 | [2] | BLOCK | KOB |
| 18. | 2419T2668D3 | [2] | PIN | KOB Superseded by part number: 2419T6402 |
| 19. | 2405T955 | [2] | BUSHING | KOB |
