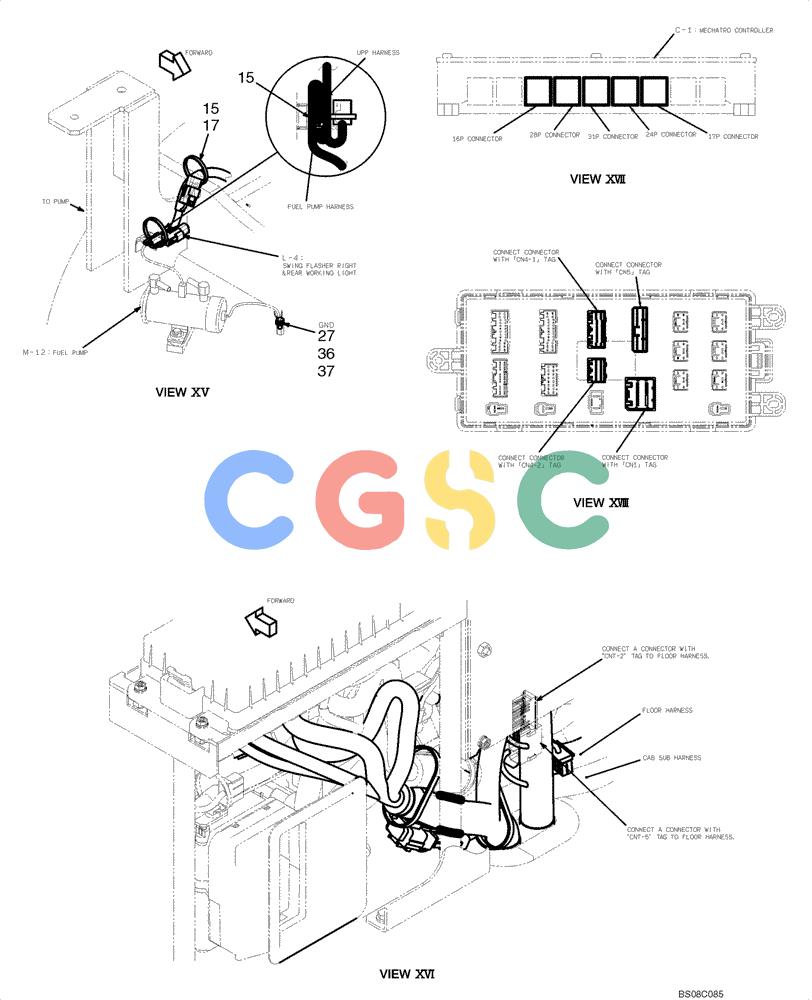

纽荷兰零件查询(E70BSR) - COMPACT CRAWLER EXCAVATOR BTW YT05-15001 - 18000 (NA) (4/08-) (02-73-00[09]) - HARNESS ASSEMBLY, UPPER (YT13E00048F1), PAGE 9 OF 12 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
430 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 15. | PY01P01043D3 | [73] | CABLE TIE,188mm L | KOBWire Ties -- 188mm Long |
| 17. | YN13E01375P1 | [25] | CLIP,M8 x 8.20mm Shank | KOBAnchor Wire Ties |
| 27. | ZW16P06000 | [1] | WASHER | KOBID 06 x OD 11.5 x Th 1.6mm |
| 36. | ZS18C06012 | [1] | SCREW,Hex, M6 x 12mm | KOBM06x1.0x12mm |
| 37. | ZW26X06000 | [1] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
