神钢零件查询(K903C) - EXCAVATOR ASN LE5701 (1/87-12/03) (05-004) - ROLLER ASSY, P/N 24100N2165F2 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
251 次

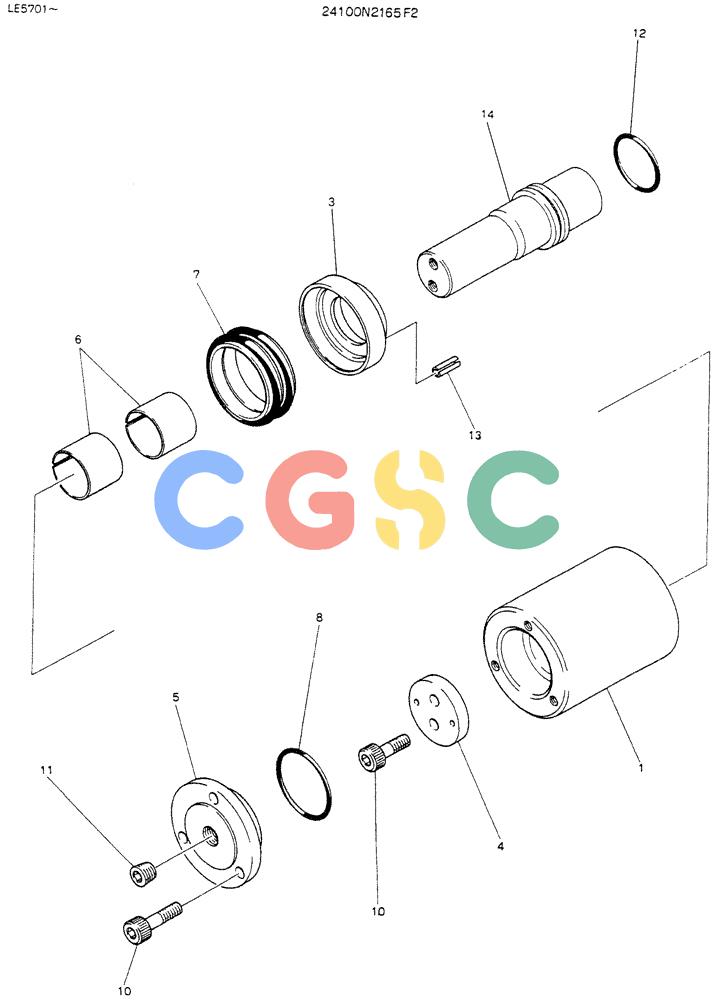

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N2165F2 | [1] | TRACK ROLLER | KOB |
| 1. | 2413N320 | [1] | ROLLER | KOB |
| 3. | 2418P7445 | [1] | COLLAR | COLLAR |
| 4. | 2418T7904 | [1] | PLATE | |
| 5. | 2414P2531 | [1] | COVER | COVER |
| 6. | 2405T864 | [2] | BUSHING | KOB |
| 7. | ZD57F04521 | [1] | FLOAT | KOB Superseded by part number: 2445R360F1 |
| 8. | ZD11G04500 | [1] | O-RING,44.40mm ID x 50.60mm OD x 3.10mm | KOBID 44.40 ± 0.41 x OD 50mm |
| 10. | ZS23C08016 | [5] | SCREW,Hex Socket Head, M8 x 16mm | KOBM08x1.25x16mm |
| 11. | ZE82T04000 | [1] | PLUG | KOB1/4" PT |
| 12. | ZD11G03500 | [1] | O-RING,34.40mm ID x 40.60mm OD x 3.10mm | KOB |
| 13. | ZP26D05014 | [1] | ROLL PIN | KOB |
| 14. | 2410P648D2 | [1] | SHAFT | SHAFT |
