神钢零件查询(K903C) - EXCAVATOR ASN LE5701 (1/87-12/03) (05-005) - SPRING ASSY, TRACK Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
1006 次

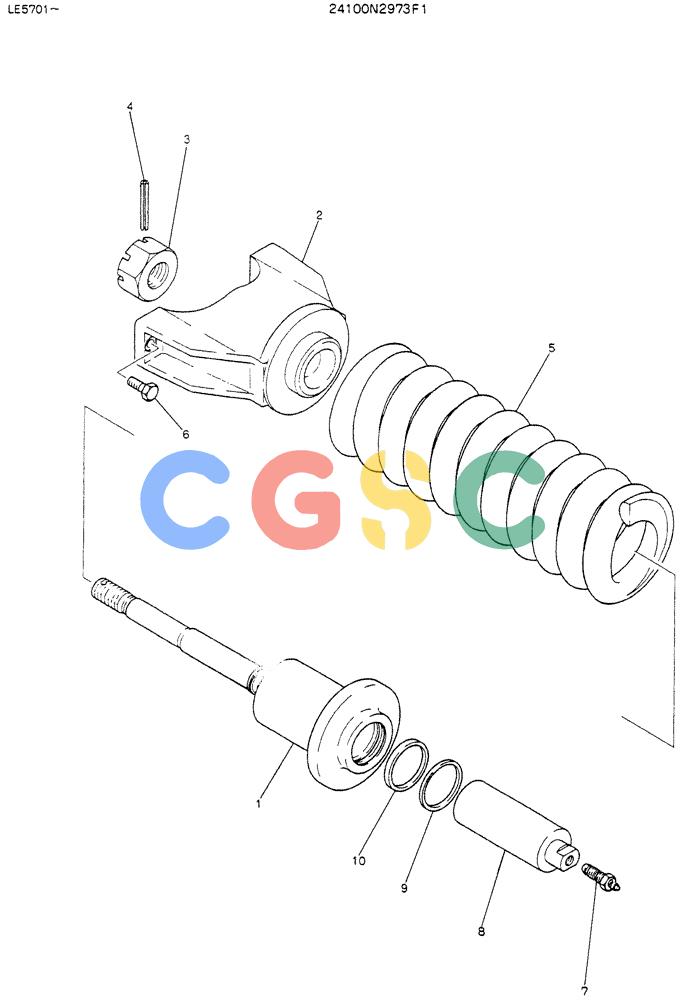

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N2973F1 | [1] | TRACK ASSY | KOB |
| 1. | 2438N246 | [1] | CYLINDER | KOB |
| 2. | 2416N3213 | [1] | BRACKET | |
| 3. | ZN22C27030 | [1] | NUT | KOB |
| 4. | ZP26D05045 | [1] | PIN | KOBSpring |
| 5. | 2417P259 | [1] | SPRING | SPRING |
| 6. | ZS13C12030 | [2] | CAPSCREW | KOBSCREW M12x1.75x30mm Superseded by part number: ZS18C12030 |
| 7. | 2444R923 | [1] | LUBE NIPPLE | KOBLube -- 5/8" - 18 UNF, Straight Superseded by part number: 2444P803 |
| 8. | 2439P169 | [1] | PISTON | KOB |
| 9. | 2445Z1080 | [1] | DUST CAP | KOB |
| 10. | 2445Z1081 | [1] | SEAL | KOB |
