神钢零件查询(K903C) - EXCAVATOR ASN LE5701 (1/87-12/03) (05-006) - BEARING ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
788 次

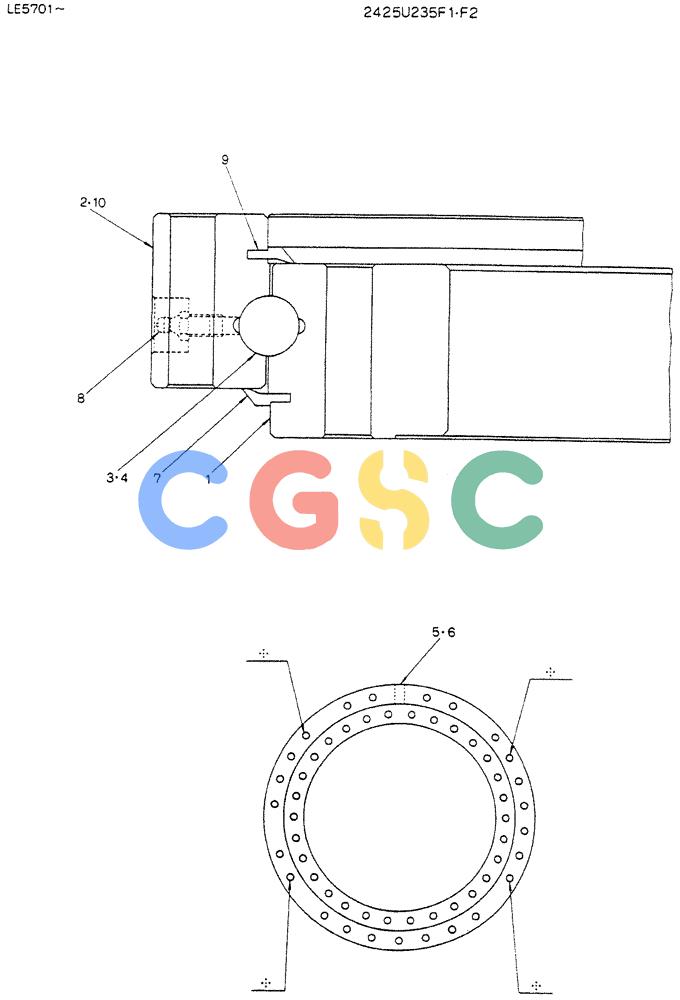

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2425U235F1 | [1] | RING | KOBBEARING ASSY, Serial Range: LE5701-LE5703 Superseded by part number: 2425U261F1 |
| . . | 2425U235F2 | [1] | RING | KOB, Start Serial: LE5704 Superseded by part number: 2425U261F1 |
| 1. | 2425U235S1 | [1] | RACE,INNER | |
| 2. | 2425U235S2 | [1] | RACE,OUTER, Serial Range: LE5701-LE5703 | |
| 3. | 2425U235S3 | [83] | BALL | KOB |
| 4. | 24250235S4 | [83] | RETAINER | |
| 5. | 2425U235S5 | [1] | PLUG | |
| 6. | 2425U235S6 | [1] | PIN,TAPER | |
| 7. | 2425U235S7 | [1] | SEAL | KOB |
| 8. | 2425U235S8 | [4] | NIPPLE,GREASE | |
| 9. | 242SU235S9 | [1] | SEAL A, Start Serial: LE5704 | |
| 10. | 2425U235S10 | [1] | RACE,OUTER, Start Serial: LE5704 | |
