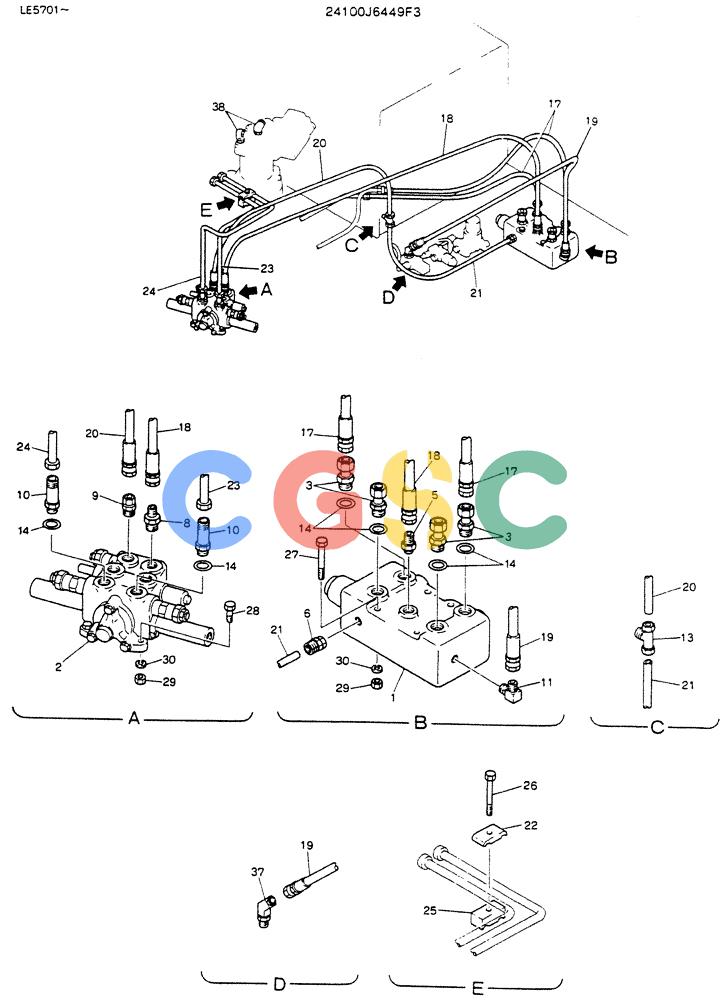

神钢零件查询(K903C) - EXCAVATOR ASN LE5701 (1/87-12/03) (07-009) - HYDR LINES, UPP (EXTRA) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
274 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J6449F3 | [1] | HYDR LINES,UPP | |
| 1. | 2436U1246F1 | [1] | VALVE | VALVE |
| 3. | ZA23H22008 | [4] | HYD CONNECTOR | KOB |
| 5. | 2444Z2249 | [1] | CONNECTOR | CONNECTOR |
| 6. | ZH21M08004 | [1] | HYD CONNECTOR | KOBCONNECTOR |
| 8. | ZH22X06008 | [1] | HYD CONNECTOR | KOB3/8"PFx1/2"PFx42.5mm Long (Incls. O-Ring ZD12P02400) |
| 9. | ZH21M08008 | [1] | HYD CONNECTOR | KOB |
| 10. | ZA23F15008 | [2] | HYD CONNECTOR | KOB |
| 11. | ZH32X04000 | [1] | 90 ELBOW,Male, 30 Degree Fl, PF 1/4" x PF 1/4", O-Ring | KOBElbow, 90° -- PF 1/4, (Incls. O-Ring 237-6004) |
| 13. | ZH51M08006 | [1] | TEE | KOBTEE |
| 14. | ZD12P01800 | [6] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 17. | ZX28N10110 | [2] | HOSE | KOB1100 mm Long (43-19/64 in) |
| 18. | ZX25M06170 | [1] | HOSE | |
| 19. | ZX25M04100 | [1] | HOSE | HOSE |
| 20. | ZX25M06100 | [1] | FLEXIBLE HOSE | KOB |
| 21. | ZX15K08100 | [1] | TUBE | KOB |
| 22. | ZC37X15112 | [1] | CLAMP | CLAMP |
| 23. | 2418P19378 | [1] | TUBE | |
| 24. | 2418P19377 | [1] | TUBE | |
| 25. | 2432T1712 | [1] | CLAMP | |
| 26. | ZS13C10085 | [1] | SCREW | KOBM10x1.50x85mm Superseded by part number: ZS18C10085 |
| 27. | ZS23C10080 | [4] | SCREW,Hex Socket Head, M10 x 80mm | HITM10x1.50x80mm Superseded by part number: ZS28C10080 |
| 28. | ZS23C10035 | [3] | SCREW,Hex Socket Head, M10 x 35mm | KOBM10x1.50x35mm |
| 29. | ZN12C10008 | [7] | NUT | KOBM10x1.50mm Superseded by part number: ZN18C10008 |
| 30. | ZW22X10000 | [7] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 32. | 2436U1239F1 | [1] | VALVE | KOBCONTROL |
| 37. | ZH42X04000 | [1] | 45 ELBOW,Male, 30 Degree Fl, PF 1/4" x PF 1/4", O-Ring | KOBElbow, 45° -- (Incls. O-Ring 237-6004) |
| . . | 2444Z2471F1 | [1] | ELBOW ASSY | ELBOW ASSY |
| 38. | ZH3M08006 | [2] | ELBOW, Start Serial: LE6153 | |
