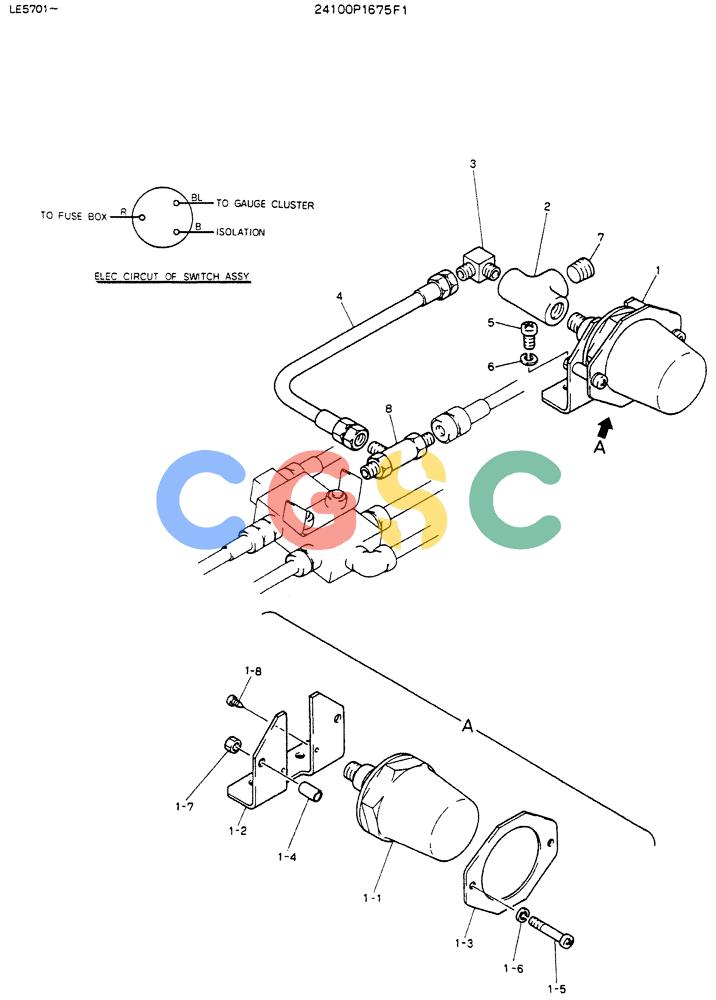

神钢零件查询(K903C) - EXCAVATOR ASN LE5701 (1/87-12/03) (07-010) - INSTAL, PRESSURE DETECTOR Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
528 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100P1675F1 | [1] | DETECTOR,PRESSURE | |
| 1. | 24100P1948F1 | [1] | SWITCH ASSY | |
| 1-1. | 2479R1026D1 | [1] | SWITCH,PRESSURE | |
| 1-2. | 2416T17950 | [1] | PLATE | |
| 1-3. | 2418T15554 | [1] | SPACER | |
| 1-4. | 2418T15555 | [2] | MACHINESCREW | |
| 1-5. | ZS31C06035 | [2] | SCREW,Phillips Drive, Pan HD, M6 x 35mm | KOBM06x1.0x35mm |
| 1-6. | ZW26X06000 | [2] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 1-7. | ZN18C06005 | [2] | NUT | KOBM06x1.0mm |
| 1-8. | ZS32T35008 | [2] | MACHINESCREW | |
| 2. | ZG52U06000 | [1] | TEE | KOB |
| 3. | ZH32Z04006 | [1] | ELBOW | KOB |
| 4. | 2420R349D040 | [1] | HOSE,6.35mm ID x 400mm L | KOB1/4" PF, 400mm Long (15-3/4 in) |
| 5. | ZS31C06014 | [2] | SCREW,Phillips Drive, Pan HD, M6 x 14mm | KOBM06x1.0x14mm |
| 6. | ZW22X06000 | [2] | LOCK WASHER ID 06 x OD 12.2 x Th 1.5mm | LOCK WASHER ID 06 x OD 12.2 x Th 1.5mm |
| 7. | ZE82T06000 | [1] | PLUG | KOBPipe, 3/8" PT |
| 8. | 2444Z3324 | [1] | HYD CONNECTOR | KOB Superseded by part number: 2444Z3276 |
