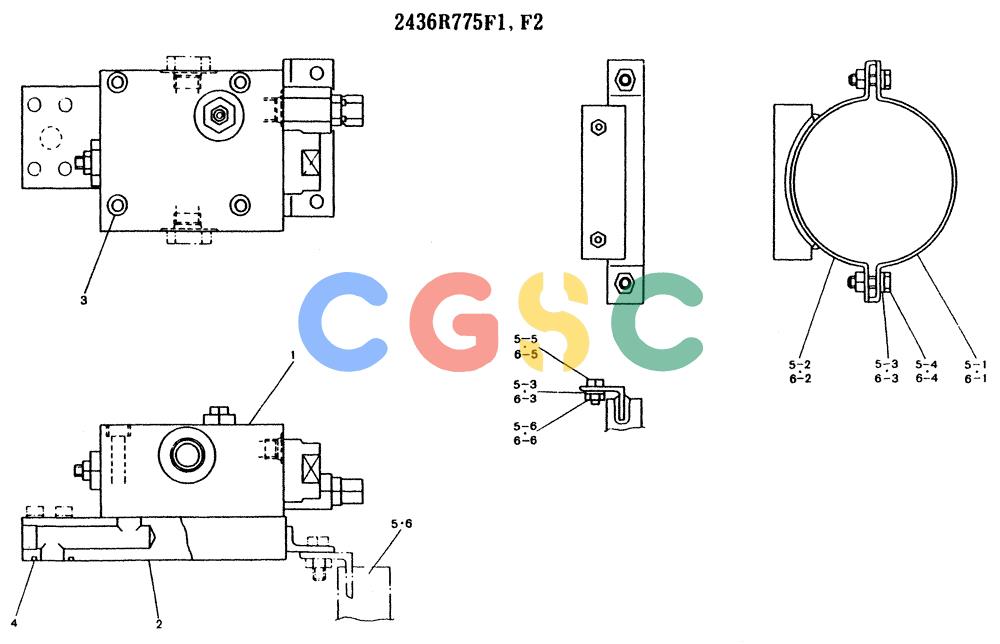

| . . | 2436R775F1 | [1] | VALVE ASSY, HOLDING | |
| . . | 2436R775F2 | [1] | VALVE ASSY, HOLDING | |
| 1. | 2436U1328F1 | [1] | VALVE, HOLDING VALVE ASSY,HOLDING(SEE.P.2436U1328-1.2)(F1,F2 ONLY) | VALVE, HOLDING VALVE ASSY,HOLDING(SEE.P.2436U1328-1.2)(F1,F2 ONLY) |
| 2. | 2436R775S2 | [1] | PLATE,SUB(F1,F2 ONLY) | |
| 3. | ZS23C10080 | [4] | SCREW,Hex Socket Head, M10 x 80mm | HITM10x1.50x80mm, (F1,F2 Only) Superseded by part number: ZS28C10080 |
| 4. | ZD12G03000 | [1] | O-RING,29.40mm ID x 35.60mm OD x 3.10mm | KOBID 29.4 ± 0.29 x OD 35mm, (F1,F2 Only) |
| 5. | 2432R227F1 | [1] | BAND | KOBASSY,SUB-PLATE(F1 ONLY) |
| 5-1. | 2438U922S28 | [1] | CLAMP | KOB(F1 ONLY) |
| 5-2. | 2432R227S2 | [1] | BAND,SUB-PLATE(F1 ONLY) | |
| 5-3. | ZW26X10000 | [4] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm, (F1 Only) |
| 5-4. | ZS16C10035 | [2] | SCREW | KOBM10x1.50x35mm, (F1 Only) Superseded by part number: ZS18C10035 |
| 5-5. | ZS23C10025 | [2] | SCREW,Hex Socket Head, M10 x 25mm | KOBM10x1.50x25mm, (F1 Only) Superseded by part number: ZS28C10025 |
| 5-6. | ZN16C10008 | [2] | NUT | KOBM10x1.50mm, (F1 Only) Superseded by part number: ZN18C10008 |
| 6. | 2432R227F2 | [1] | BAND ASSY,SUB-PLATE(F2 ONLY) | |
| 6-1. | 2438U897S22 | [1] | CLAMP | KOBBAND(F2 ONLY) |
| 6-2. | 2432R227S8 | [1] | BAND,SUB-PLATE(F2 ONLY) | |
| 6-3. | ZW26X10000 | [4] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm, (F2 Only) |
| 6-4. | ZS16C10035 | [2] | SCREW | KOBM10x1.50x35mm, (F2 Only) Superseded by part number: ZS18C10035 |
| 6-5. | ZS23C10025 | [2] | SCREW,Hex Socket Head, M10 x 25mm | KOBM10x1.50x25mm, (F2 Only) Superseded by part number: ZS28C10025 |
| 6-6. | ZN16C10008 | [2] | NUT | KOBM10x1.50mm, (F2 Only) Superseded by part number: ZN18C10008 |
