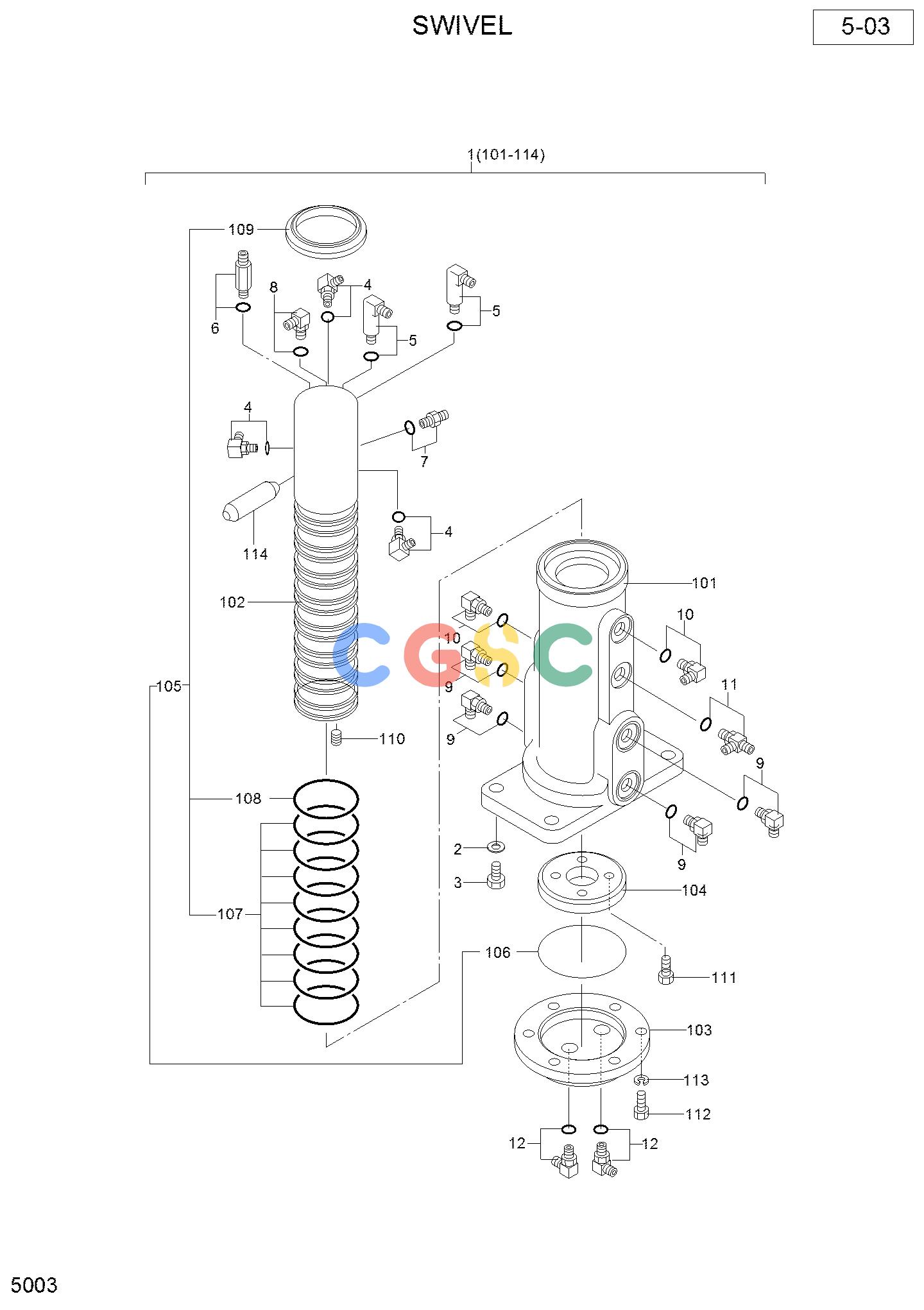

现代零件查询R36N-7 SWIVELEPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
817 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
XJDH-01137
|
[1] |
SWIVEL JOINT
|
|
| 101. |
XJDH-01138
|
[1] |
CYLINDER
|
|
| 102. |
XJDH-01139
|
[1] |
ROTOR
|
|
| 103. |
XJDH-01053
|
[1] |
CAP
|
|
| 104. |
XJDH-01054
|
[1] |
WASHER-THRUST
|
|
| 105. |
XJDH-01140
|
[1] |
PACKING ASSY
|
|
| 106. |
XJDH-00356
|
[1] |
O-RING
|
|
| 107. |
XJDH-01388
|
[8] |
SEAL-SLIPER
|
|
| 108. |
XJDH-00345
|
[1] |
O-RING
|
|
| 109. |
XJDH-00369
|
[1] |
SEAL-DUST
|
|
| 110. |
XJDH-00381
|
[2] |
PLUG
|
|
| 111. |
XJDH-00127
|
[4] |
BOLT-SOCKET HEAD
|
|
| 112. |
XJDH-00037
|
[6] |
BOLT
|
|
| 113. |
XJDH-00241
|
[6] |
WASHER-SPRING
|
|
| 114. |
XJDH-01132
|
[1] |
PIN-KNOCK
|
|
| 2. |
XJDH-00071
|
[4] |
BOLT
|
|
| 3. |
XJDH-00280
|
[4] |
WASHER
|
|
| 4. |
XJDH-00477
|
[4] |
ELBOW-90
|
|
| 5. |
XJDH-00466
|
[4] |
ELBOW-MALE 45,O-RING
|
|
| 6. |
XJDH-00445
|
[3] |
CONNECTOR-MALE
|
|
| 7. |
XJDH-00444
|
[1] |
CONNECTOR-MALE LONG
|
|
| 8. |
XJDH-00467
|
[4] |
ELBOW-MALE 90
|
|
| 9. |
XJDH-00495
|
[1] |
TEE
|
|
