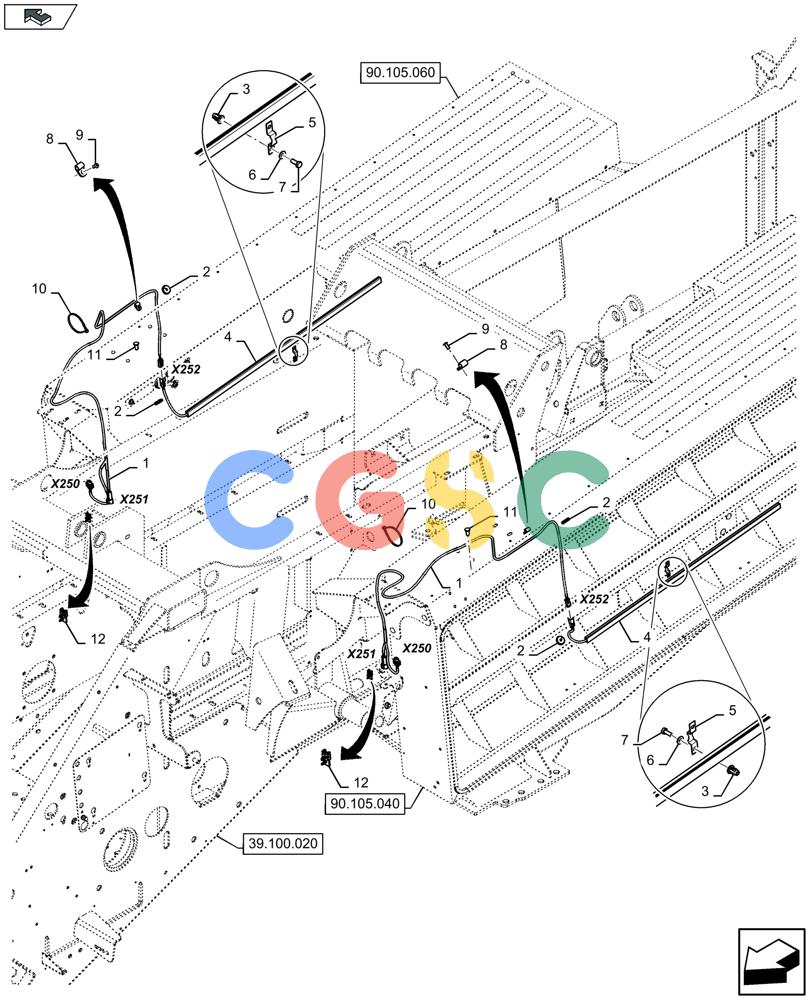

凯斯零件查询(LB424S XL) - BALER (11/16-) (55.511.050) - TWINE BOX LIGHTS - D085 Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
506 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
47531406
|
[2] |
WIRE HARNESS
|
ZED
|
| 1. |
47966366
|
[2] |
WIRE HARNESS
|
ZED
|
| 2. |
87530614
|
[4] |
GROMMET
|
WIC
|
| 3. |
47533286
|
[12] |
NUT
|
ZED
|
| 4. |
47506757
|
[2] |
COURTESY LIGHT
|
ZED
|
| 5. |
47533109
|
[1] |
SUPPORT
|
ZED
|
| 6. |
322357
|
[12] |
BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk
|
NH
|
| 7. |
86508568
|
[12] |
BOLT,Hex, M6 x 1 x 16mm, Cl 8.8
|
NH
|
| 7. |
445394
|
[8] |
RIVET,Pop, 3/16" x 1/2" OAL
|
ZED
Superseded by part number: 151-573
|
| 8. |
9507807
|
[8] |
CLAMP,8.3mm ID, 6.7mm Bolt Hole, P Type
|
ZED
|
| 10. |
86566990
|
[8] |
CABLE TIE,292mm OAL x 4.8mm W
|
ZED
|
| 11. |
84280063
|
[4] |
HALF-HINGE
|
ZED
|
| 12. |
84322203
|
[2] |
CLIP
|
BUR
|
