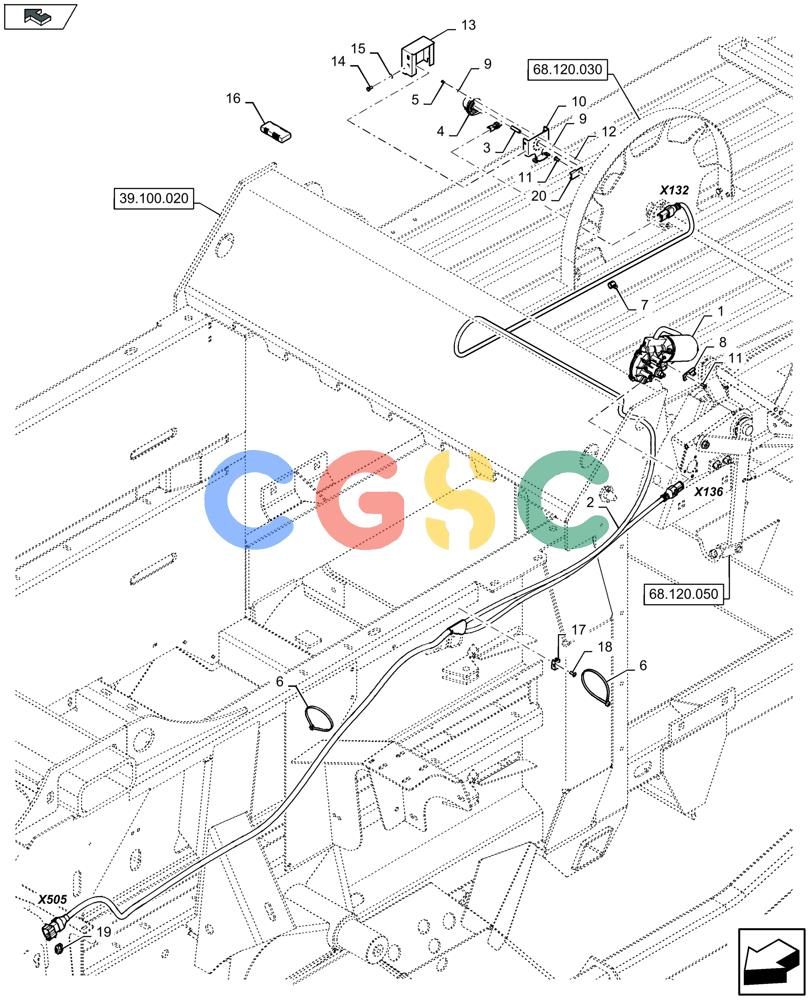

凯斯零件查询(LB424S XL) - BALER (11/16-) (55.629.011) - ELECTRONIC BALE LENGTH ADJUSTMENT - D016 Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
962 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84372317
|
[1] |
WIPER MOTOR
|
ZED
|
| 2. |
84273462
|
[1] |
WIRE HARNESS
|
ZED
|
| 3. |
47412734
|
[1] |
CONNECTING ROD
|
ZED
, Serial Range: -C098 Superseded by part number: 47649542
|
| 3. |
47649542
|
[1] |
CONNECTING ROD
|
ZED
, Start Serial: D099
|
| 4. |
84596656
|
[1] |
SENSOR
|
ZED
B019 - Sensor Bale Length System, Serial Range: -C136
|
| 4. |
47665199
|
[1] |
SENSOR
|
ZED
B019 - Sensor Bale Length System, Start Serial: D137
|
| 5. |
86511042
|
[4] |
SCREW,Pan Head, M4 x 0.7 x 16mm, Cl 4.8
|
ZED
Superseded by part number: 13272214
|
| 6. |
86566990
|
[10] |
CABLE TIE,292mm OAL x 4.8mm W
|
ZED
|
| 7. |
84144890
|
[7] |
CLIP
|
JES
, Serial Range: -C150
|
| 7. |
47706277
|
[7] |
CLIP
|
ZED
, Start Serial: D151
|
| 8. |
84058832
|
[1] |
CLIP
|
ZED
, Serial Range: -C150
|
| 8. |
87716495
|
[1] |
CLAMP
|
BU
, Start Serial: D151
|
| 9. |
9824840
|
[8] |
WASHER,4.3mm ID x 9mm OD x 0.8mm Thk
|
NH
Superseded by part number: 89824840
|
| 10. |
47388512
|
[1] |
SUPPORT
|
ZED
|
| 11. |
445394
|
[2] |
RIVET,Pop, 3/16" x 1/2" OAL
|
ZED
Superseded by part number: 151-573
|
| 12. |
100012
|
[4] |
NUT,M4 x 0.7, Cl 8
|
NH
Superseded by part number: 57121
|
| 13. |
47388623
|
[1] |
COVER
|
ZED
|
| 14. |
120104
|
[4] |
BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 15. |
322358
|
[4] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 16. |
84398840
|
[1] |
MEMORY CARD,4GB
|
GI
, Serial Range: -C150
|
| 16. |
47977322
|
[1] |
MEMORY CARD
|
GI
, Start Serial: D151
|
| 17. |
86590413
|
[2] |
BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk
|
ZED
, Start Serial: D137
|
| 19. |
84280824
|
[1] |
WIRE CONNECTOR
|
ZED
, Start Serial: D137
|
| 20. |
84322203
|
[1] |
CLIP
|
BUR
, Start Serial: D151
|
