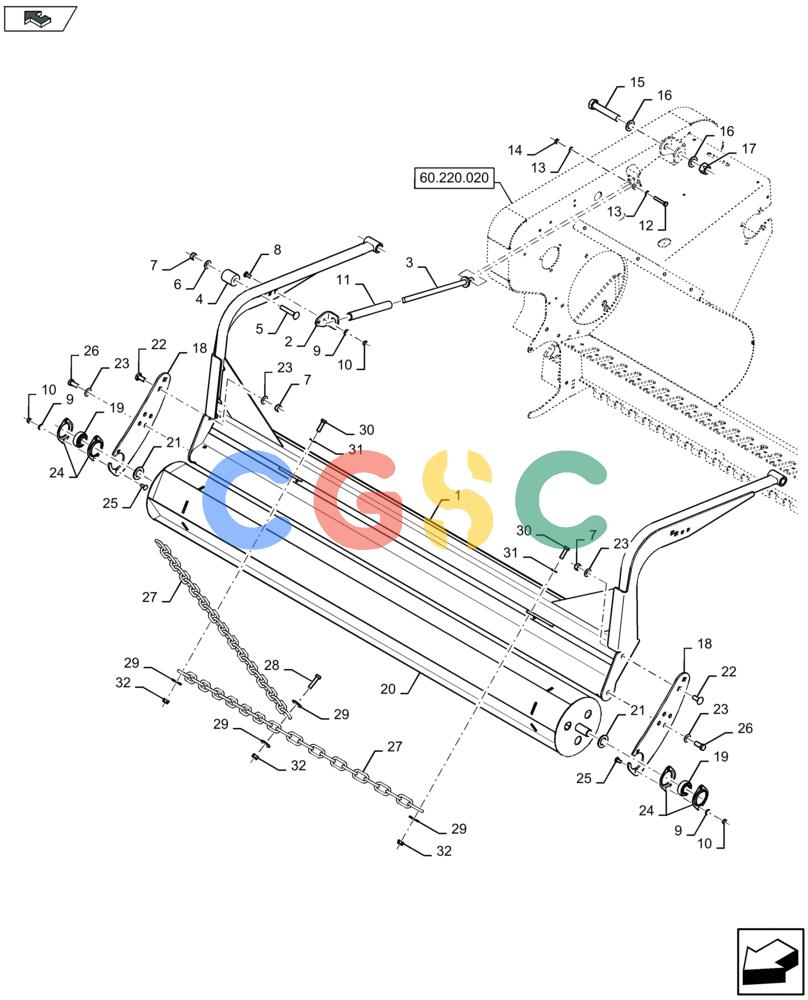

| 1. |
47508768
|
[1] |
WINDGUARD
|
ZED
, Serial Range: -C136 Superseded by part number: 47816924
|
| 1. |
47816924
|
[1] |
WINDGUARD
|
ZED
, Start Serial: D137
|
| 1. |
47508749
|
[1] |
WINDGUARD
|
ZED
, Serial Range: -C136 Superseded by part number: 47816920
|
| 1. |
47816920
|
[1] |
WINDGUARD
|
ZED
, Start Serial: D137
|
| 1. |
47508760
|
[1] |
WINDGUARD
|
ZED
, Serial Range: -C136
|
| 1. |
47816927
|
[1] |
WINDGUARD
|
ZED
, Start Serial: D137
|
| 1. |
47508746
|
[1] |
WINDGUARD
|
ZED
, Serial Range: -C136 Superseded by part number: 47809650
|
| 1. |
47809650
|
[1] |
WINDGUARD
|
ZED
, Start Serial: D137
|
| 2. |
84217847
|
[2] |
SUPPORT
|
ZED
|
| 3. |
47494918
|
[2] |
HEADED PIN
|
ZED
|
| 4. |
395087
|
[2] |
INSULATOR BLOCK
|
ZED
|
| 5. |
338263
|
[2] |
CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 70mm, Cl 8.8
|
ZED
|
| 6. |
378245
|
[2] |
WASHER,13mm ID x 28.5mm OD x 2.7mm Thk
|
NH
|
| 7. |
9706685
|
[4] |
NUT,M12 x 1.75, Cl 8
|
NH
|
| 8. |
308761
|
[4] |
CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8
|
NH
|
| 9. |
322358
|
[8] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 10. |
9706690
|
[8] |
NUT,M8 x 1.25, Cl 8
|
NH
Superseded by part number: 43362
|
| 11. |
86633839
|
[2] |
SPRING
|
NH
|
| 12. |
86625003
|
[2] |
BOLT,Hex, M8 x 50mm, Cl 10.9
|
FAR
|
| 13. |
86624184
|
[4] |
WASHER,9mm ID x 16mm OD x 1.6mm Thk
|
FOR
|
| 14. |
9628098
|
[2] |
NUT,M8 x 1.25, Cl 10
|
NH
Superseded by part number: 82034883
|
| 15. |
86508350
|
[2] |
BOLT,Hex, M20 x 110mm, Cl 10.9
|
PLO
|
| 16. |
86511327
|
[4] |
WASHER,21mm ID x 37mm OD x 3mm Thk
|
NH
|
| 17. |
86536985
|
[2] |
NUT,M20 x 2.5, Cl 10
|
NH
Superseded by part number: 264031
|
| 18. |
84597292
|
[2] |
SUPPORT
|
ZED
|
| 19. |
325103
|
[2] |
BALL BEARING,25mm ID x 52mm OD x 15mm W
|
ZED
|
| 20. |
84801457
|
[1] |
ROLLER
|
ZED
|
| 20. |
87341398
|
[1] |
ROLLER
|
ZED
|
| 20. |
84801352
|
[1] |
ROLLER
|
ZED
|
| 21. |
140022
|
[2] |
WASHER,26mm ID x 44mm OD x 4mm Thk
|
ZED
|
| 22. |
120044
|
[2] |
CARRIAGE BOLT,M12 x 1.75 x 30mm, Cl 8.8
|
NH
|
| 23. |
140046
|
[4] |
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
|
NH
|
| 24. |
86548974
|
[4] |
FLANGE,Bearing
|
ZED
Superseded by part number: 50591
|
| 25. |
86507486
|
[4] |
CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 26. |
9706687
|
[2] |
BOLT,M12 x 1.75 x 30mm, Cl 8.8
|
NH
|
| 27. |
47508698
|
[2] |
CHAIN,1188mm L
|
ZED
|
| 28. |
325829
|
[1] |
BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8
|
NH
Superseded by part number: 56614
|
| 29. |
140042
|
[4] |
WASHER,11mm ID x 34mm OD x 3mm Thk
|
GI
|
| 30. |
9706704
|
[2] |
BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8
|
NH
|
| 31. |
140017
|
[2] |
WASHER,M10 x 20mm OD x 2mm Thk
|
PA
Superseded by part number: 9820489
|
| 32. |
100037
|
[3] |
LOCK NUT,M10 x 1.5, Cl 8
|
NH
|
