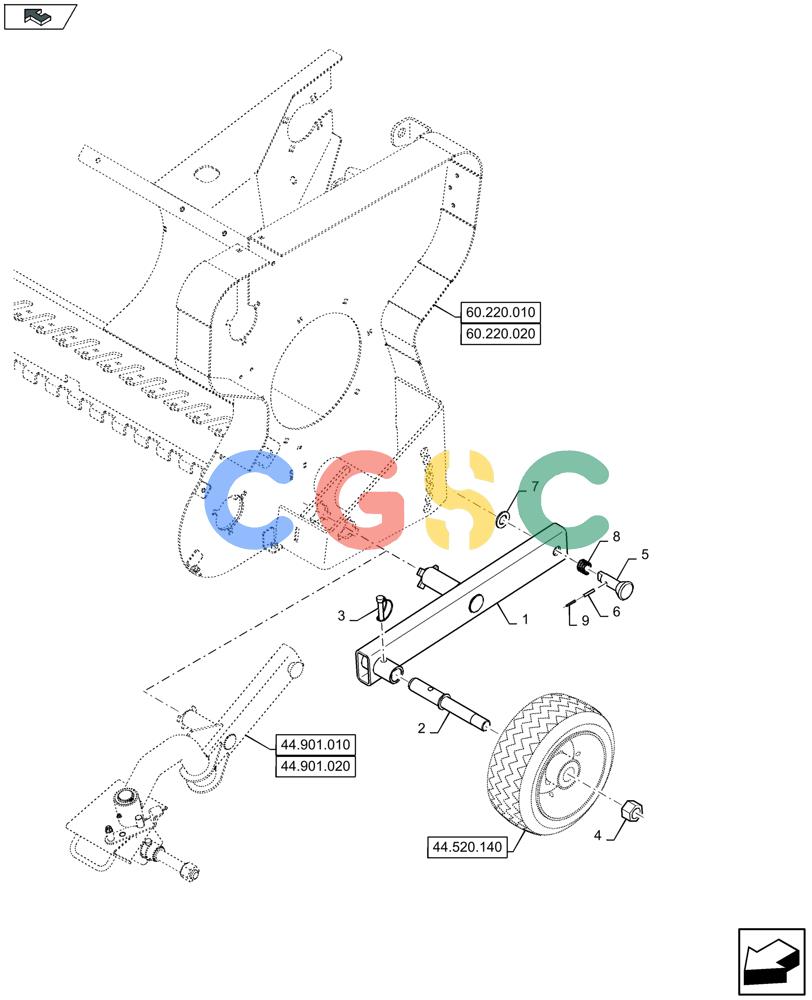

凯斯零件查询(LB424S XL) - BALER (11/16-) (60.220.140) - PICK-UP, WHEEL SUPPORT Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
869 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84210673
|
[1] |
ROCKER ARM
|
ZED
|
| 2. |
84074953
|
[1] |
SHAFT
|
ZED
|
| 3. |
9838996
|
[1] |
COTTER PIN
|
NH
|
| 4. |
9837788
|
[1] |
NUT,M24 x 3, Cl 8.8
|
ZED
|
| 5. |
84382672
|
[1] |
ADJUSTER
|
ZED
|
| 6. |
393871
|
[1] |
LOCK PIN,5mm OD x 30mm L, Slotted
|
WIN
|
| 7. |
794034
|
[1] |
WASHER,20.96mm ID x 28.7mm OD x 1.7mm Thk
|
NH
|
| 8. |
84383225
|
[1] |
COMPRESSION SPRING
|
ZED
|
| 9. |
84818466
|
[1] |
ROLL PIN,3mm OD x 26mm L, Slotted
|
ZED
|
