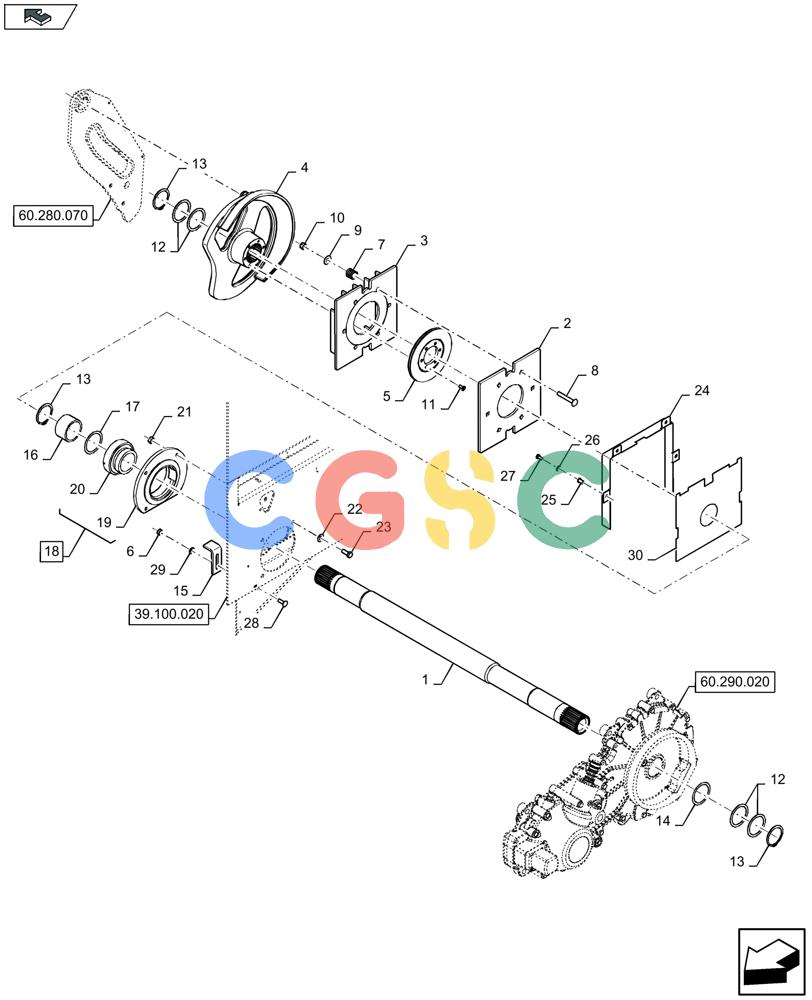

| 1. |
84074036
|
[1] |
SHAFT
|
ZED
|
| 1. |
84074035
|
[1] |
SHAFT
|
ZED
|
| 2. |
9838755
|
[1] |
FLANGE
|
ZED
, Serial Range: -C089 Superseded by part number: 84800479
|
| 2. |
47454608
|
[1] |
BRAKE
|
ZED
, Start Serial: D090
|
| 3. |
84819162
|
[1] |
FLANGE
|
ZED
, Serial Range: -C089
|
| 3. |
47454616
|
[1] |
BRAKE
|
ZED
, Start Serial: D090
|
| 4. |
84383771
|
[1] |
CRANK
|
ZED
|
| 5. |
47455174
|
[1] |
BRAKE DISC
|
ZED
|
| 6. |
100016
|
[4] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| 7. |
84014109
|
[3] |
SPRING
|
ZED
|
| 8. |
300662
|
[3] |
CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 80mm, Cl 8.8
|
NH
|
| 9. |
543043
|
[3] |
WASHER,13mm ID x 35mm OD x 2.5mm Thk
|
NH
|
| 10. |
100038
|
[3] |
NUT,M12 x 1.75, Cl 8
|
NH
|
| 11. |
87313767
|
[6] |
HEX SOC SCREW,M8 x 1.25 x 20mm, 8.8
|
JES
|
| 12. |
9839164
|
[4] |
WASHER,70mm ID x 86mm OD x 2mm Thk
|
ZED
|
| 13. |
300636
|
[3] |
SNAP RING,M70, External
|
ZED
|
| 14. |
84000021
|
[2] |
SHIM,70mm ID x 86mm OD x 0.5mm Thk
|
ZED
|
| 15. |
9839159
|
[2] |
SUPPORT
|
ZED
|
| 16. |
84000030
|
[1] |
BUSHING,70mm ID x 82.5mm OD x 48mm L
|
ZED
|
| 17. |
9839161
|
[6] |
WASHER,70mm ID x 86mm OD x 1mm Thk
|
ZED
|
| 18. |
9839130
|
[1] |
BEARING HOUSING
|
ZED
Incl 19, 20 Superseded by part number: 9839132, 9839131, 321204
|
| 19. |
9839132
|
[1] |
BEARING HOUSING,125 mm ID x 250 mm OD x 47.5 mm
|
ZED
|
| 20. |
9839131
|
[1] |
BALL BEARING,70mm ID x 125mm OD x 28mm W
|
ZED
|
| 21. |
9706685
|
[4] |
NUT,M12 x 1.75, Cl 8
|
NH
|
| 22. |
140046
|
[4] |
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
|
NH
|
| 23. |
9706687
|
[4] |
BOLT,M12 x 1.75 x 30mm, Cl 8.8
|
NH
|
| 24. |
47360768
|
[1] |
SHIELD
|
ZED
, Serial Range: -C093 Superseded by part number: 47591362
|
| 24. |
47591362
|
[1] |
SHIELD
|
ZED
, Start Serial: D094
|
| 25. |
87556072
|
[4] |
NUT,Flng, 11.8mm OD x 19.8mm L
|
ZED
|
| 26. |
322358
|
[4] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 27. |
120104
|
[4] |
BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 28. |
86512446
|
[4] |
CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8
|
NH
|
| 29. |
140045
|
[4] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 30. |
47591364
|
[1] |
SHIELD
|
ZED
, Start Serial: D094
|
