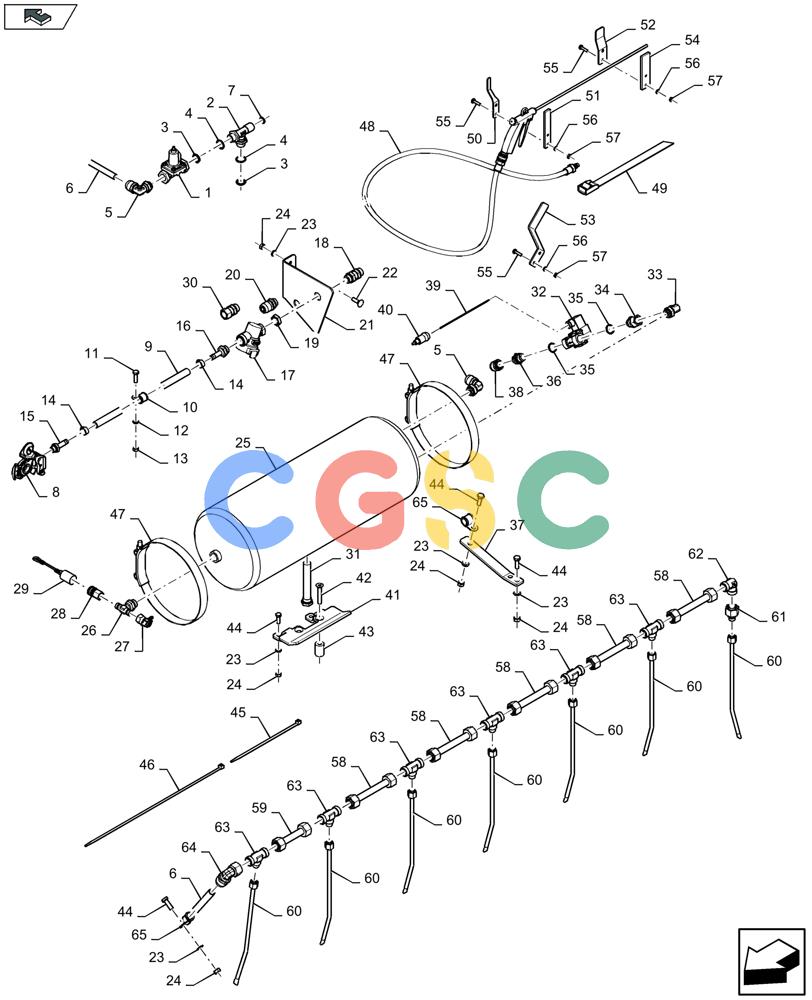

凯斯零件查询(LB424S XL) - BALER (11/16-) (68.160.030) - KNOTTER BLOW OFF KIT Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
303 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
47441794
|
[1] |
VALVE
|
ZED
|
| 2. |
47441795
|
[1] |
BRANCH TEE
|
ZED
|
| 3. |
47441797
|
[2] |
O-RING
|
ZED
|
| 4. |
47441799
|
[2] |
SUPPORT
|
ZED
|
| 5. |
47441801
|
[2] |
ELBOW
|
ZED
|
| 6. |
47781327
|
[1] |
TUBE
|
ZED
|
| 7. |
47436405
|
[1] |
SEALING RING
|
ZED
|
| 8. |
47441803
|
[1] |
COUPLING
|
ZED
|
| 9. |
47441804
|
[1] |
BRAKE
|
ZED
L=5.4M
|
| 10. |
47441805
|
[3] |
CLAMP
|
ZED
|
| 11. |
47441806
|
[1] |
SCREW
|
ZED
|
| 12. |
47441808
|
[1] |
WASHER
|
ZED
Superseded by part number: 47441822
|
| 13. |
47441809
|
[1] |
NUT
|
ZED
Superseded by part number: 47441823
|
| 14. |
47441810
|
[2] |
HOSE CLAMP
|
ZED
|
| 15. |
47441812
|
[1] |
HOSE
|
ZED
|
| 16. |
47441813
|
[1] |
HOSE
|
ZED
|
| 17. |
47441814
|
[1] |
FILTER
|
ZED
|
| 18. |
47441815
|
[1] |
ELEC CONNECTOR
|
ZED
|
| 19. |
47441816
|
[1] |
NUT
|
ZED
|
| 20. |
47441818
|
[1] |
SCREW
|
ZED
|
| 21. |
47441820
|
[1] |
SUPPORT
|
ZED
|
| 22. |
47441821
|
[2] |
CARRIAGE BOLT
|
ZED
|
| 23. |
47441822
|
[12] |
WASHER
|
ZED
|
| 24. |
47441823
|
[12] |
NUT
|
ZED
|
| 25. |
47441825
|
[1] |
AIR RESERVOIR
|
ZED
|
| 26. |
47441826
|
[1] |
SCREW
|
ZED
|
| 27. |
47441829
|
[1] |
SWIVEL CONNECTION
|
ZED
|
| 28. |
47441830
|
[1] |
COUPLING
|
ZED
|
| 29. |
47441831
|
[1] |
DUST CAP
|
ZED
Superseded by part number: 47781290
|
| 30. |
47771066
|
[1] |
HYD CONNECTOR
|
ZED
|
| 31. |
47441833
|
[1] |
DRAIN VALVE
|
ZED
|
| 32. |
47441834
|
[1] |
SOLENOID VALVE
|
ZED
|
| 33. |
47441835
|
[1] |
SOCKET
|
ZED
Superseded by part number: 47781305
|
| 34. |
47781308
|
[1] |
STUD
|
ZED
|
| 35. |
47441837
|
[2] |
SEALING WASHER
|
ZED
|
| 36. |
47441838
|
[1] |
SCREW
|
ZED
|
| 37. |
47441879
|
[2] |
SUPPORT
|
ZED
|
| 38. |
47441841
|
[1] |
TUBE
|
ZED
|
| 39. |
47441842
|
[1] |
ELECTRICAL WIRE
|
ZED
L= 7M Superseded by part number: 47781319
|
| 40. |
47441843
|
[1] |
WIRE CONNECTOR
|
ZED
|
| 41. |
47441844
|
[1] |
SUPPORT
|
ZED
|
| 42. |
47441846
|
[2] |
SCREW
|
ZED
|
| 43. |
47441848
|
[2] |
SPACER
|
ZED
|
| 44. |
47441849
|
[10] |
SCREW
|
ZED
|
| 45. |
47441888
|
[10] |
CABLE TIE
|
ZED
|
| 46. |
47441889
|
[10] |
CABLE TIE
|
ZED
Superseded by part number: 47781288
|
| 47. |
47441853
|
[2] |
STRAP
|
ZED
|
| 48. |
47441854
|
[1] |
AIR GUN
|
ZED
|
| 49. |
47441856
|
[1] |
CLAMP
|
ZED
|
| 50. |
47441857
|
[1] |
SUPPORT
|
ZED
|
| 51. |
47441859
|
[1] |
PLASTIC PLATE
|
ZED
|
| 52. |
47441860
|
[1] |
SUPPORT
|
ZED
Superseded by part number: 47781390
|
| 53. |
47441861
|
[2] |
SUPPORT
|
ZED
|
| 54. |
47441862
|
[1] |
PLASTIC PLATE
|
ZED
|
| 55. |
47441864
|
[8] |
SCREW
|
ZED
|
| 56. |
47441865
|
[8] |
WASHER
|
ZED
|
| 57. |
47441866
|
[8] |
NUT
|
ZED
|
| 58. |
47441869
|
[5] |
TUBE
|
ZED
|
| 59. |
47441870
|
[1] |
TUBE
|
ZED
|
| 60. |
47441871
|
[7] |
NOZZLE
|
ZED
|
| 61. |
47441872
|
[1] |
ADAPTER
|
ZED
Superseded by part number: 47781360
|
| 62. |
47441874
|
[1] |
ELBOW
|
ZED
|
| 63. |
47441875
|
[6] |
SWIVEL CONNECTION
|
ZED
|
| 64. |
47781337
|
[1] |
COUPLING
|
ZED
|
| 65. |
47441880
|
[4] |
PIPE
|
ZED
|
