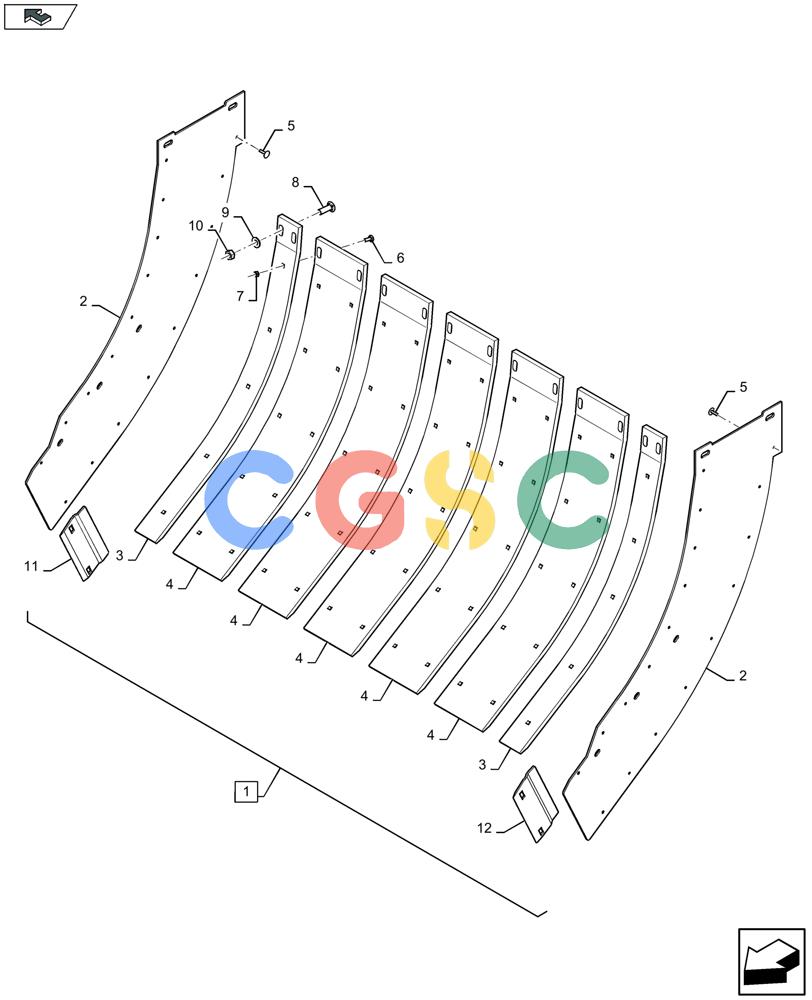

凯斯零件查询(LB424S XL) - BALER (11/16-) (88.060.026[01]) - DIA KIT: TOP & SIDE LINER KIT - PRE-CHAMBER - D137 Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
932 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
47981759
|
[1] |
SERVICE KIT
|
ATT
Incl 2 - 12
|
| 2. |
47981805
|
[2] |
SKID PLATE
|
ZED
|
| 3. |
47981629
|
[2] |
SKID PLATE
|
ZED
|
| 4. |
47981674
|
[5] |
SKID PLATE
|
ZED
|
| 5. |
84069248
|
[2] |
RIVET,Pop, 4.8mm OD x 20.7mm L
|
ZED
|
| 6. |
9706703
|
[1] |
CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 20mm, Cl 8.8, Full Thd
|
NH
|
| 7. |
353308
|
[1] |
NUT,M6 x 1.0, Cl 8
|
NH
|
| 8. |
84467161
|
[1] |
CARRIAGE BOLT,Short Sq Nk, M10 x 1.5 x 35mm, Cl 8.8
|
NH
|
| 9. |
140045
|
[1] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 10. |
100016
|
[1] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| 11. |
47981606
|
[1] |
PLATE
|
ZED
|
| 12. |
47981651
|
[1] |
PLATE
|
ZED
|
