神钢零件查询(K909LC) - MARK II EXCAVATOR BTW LL1207 - LL1487 (1/87-12/03) (01-002) - COUNTER-WEIGHT ASSY , 24100P1730F2 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
157 次

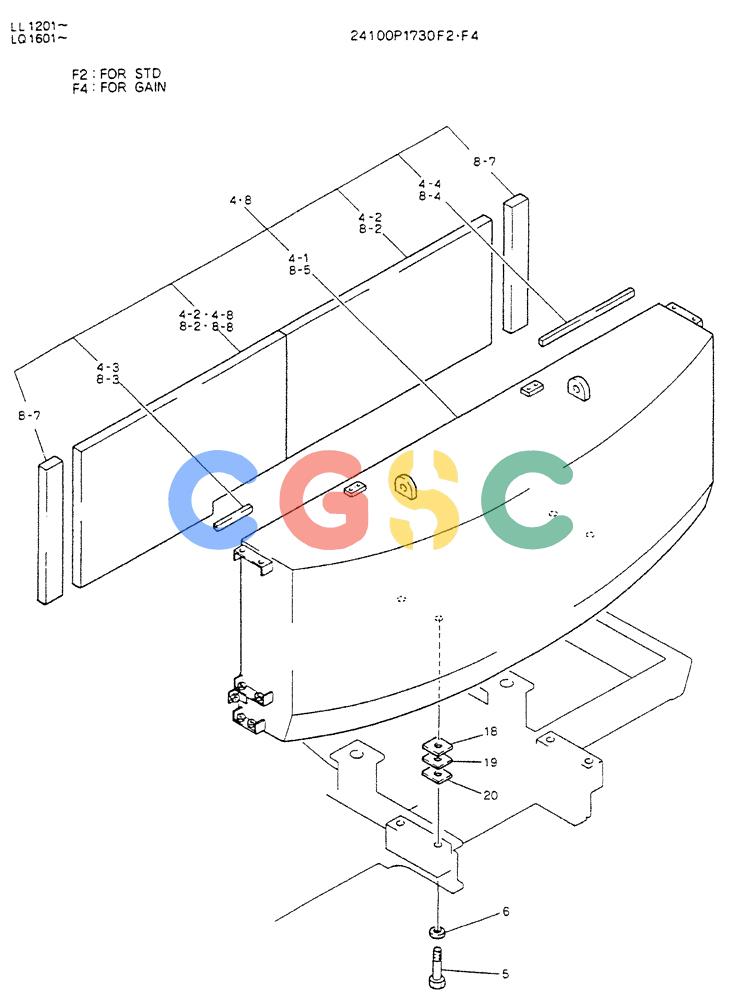

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100P1730F2 | [1] | COUNTER WEIGHT ASSY | |
| 4. | 24100TJ734F1 | [1] | COUNTER-WEIGHT ASSY | |
| 4-1. | 2422J1883 | [1] | COUNTER-WEIGHT | |
| 4-2. | 2479T1735 | [2] | INSULATION, SOUND, Serial Range: LL1201-LL1243 | |
| 4-3. | 2416Z490D15 | [1] | RUBBER, CUSHION | |
| 4-4. | 2415Z490D4 | [1] | RUBBER, CUSHION | |
| 4-8. | 2427T1846 | [1] | INSULATION,SOUND, Serial Range: LL1244-LQ1650 | |
| 5. | R20T0040D12 | [4] | SCREW | KOBCAP |
| 6. | ZW13H30000 | [4] | WASHER | KOB |
| 18. | 2418T12306D2 | [2] | SHIM | KOB |
| 19. | 2418T12306D3 | [2] | SHIM | KOB |
| 20. | 2418T12306D6 | [2] | SHIM | KOB |
| . . | 24100P1730F4 | [1] | COUNTER-WEIGHT ASSY | |
| 8. | 24100P1734P2 | [1] | COUNTER-WEIGHT ASSY | |
| 8-2. | 2479T1735 | [2] | INSULATION, SOUND, Serial Range: LL1201-LL1243 | |
| 8-3. | 2416Z490D15 | [1] | RUBBER, CUSHION | |
| 8-4. | 2416Z490D4 | [1] | RUBBER, CUSHION | RUBBER, CUSHION |
| 8-5. | 2422J1935 | [1] | COUNTER-WEIGHT | |
| 8-7. | 2427T1837 | [2] | INSULATION, SOUND | INSULATION, SOUND |
| 8-8. | 2427T1846 | [1] | INSULATION, SOUND, Serial Range: LL1244-LQ1658 | |
