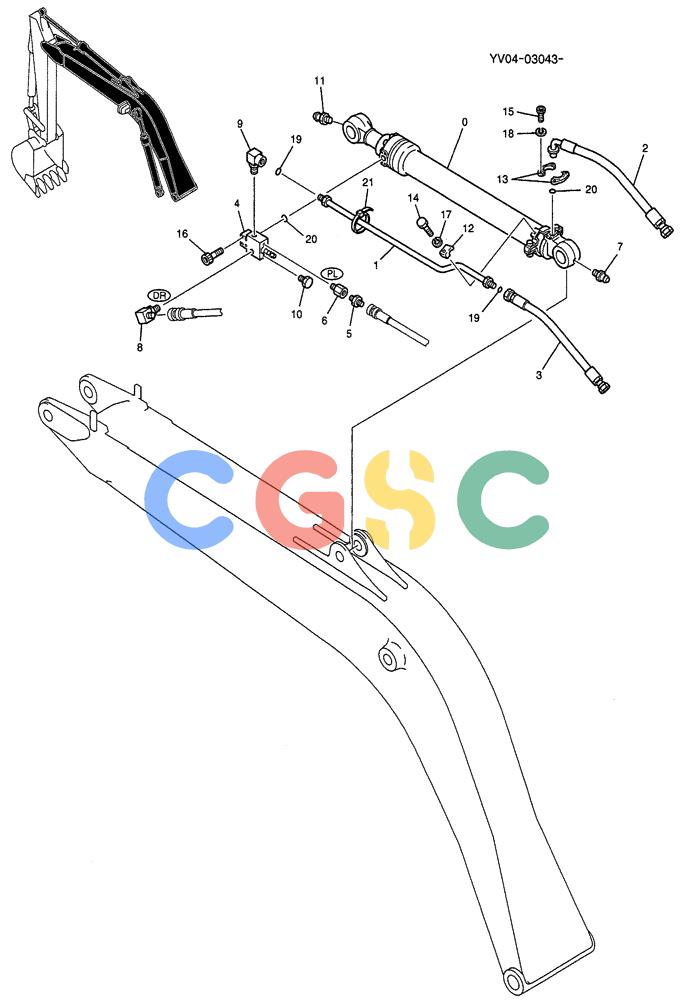

纽荷兰零件查询(E115SR) - CRAWLER EXCAVATOR ASN YV04-03043 (05-012) - HYD LINES, BOOM 4.26 M (ARM SAFETY) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
778 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 0. | YV01V00003F2 | [1] | CYLINDER | KOBASSY, ARM YV04-03043, Serial Range: -YV04-03176 Superseded by part number: YV01V00003F3 |
| 0. | YV01V00003F3 | [1] | CYLINDER | KOBCYLINDER ASSY, ARM, Start Serial: YV04-03177 |
| . . | YV42H00015F1 | [1] | HYD LINES, CYLINDER | |
| 1. | YV42H01065P1 | [1] | TUBE | KOB |
| 2. | YW02B01029D1 | [1] | FLEXIBLE HOSE | KOB |
| 3. | YW02B01043D2 | [1] | FLEXIBLE HOSE | KOB |
| 4. | YM28V00001F2 | [1] | VALVE | KOBASSY, HOLDING |
| 5. | ZH22X06000 | [1] | HYD CONNECTOR | KOB |
| 6. | HH25R06006GE | [1] | ELEC CONNECTOR | KOB |
| 7. | ZH22Z04000 | [1] | HYD CONNECTOR | KOB |
| 8. | ZH32X06000 | [1] | 90 ELBOW,Male, 30° Fl, PF 3/8" x PF 3/8", O-Ring | KOBElbow, 90° -- (Incls. O-Ring ZD12P01400) Alternate O-Ring 237-6006 |
| 9. | HG33H10012G1 | [1] | ELBOW | KOB |
| 10. | ZE72X08000 | [1] | PLUG | KOB |
| 11. | ZG91S02000 | [1] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOBGREASE |
| 12. | YW43H01049P1 | [1] | CLAMP | KOB |
| 13. | ZE13X12000 | [2] | CLAMP | KOBHALF |
| 14. | ZS18C10045 | [1] | SCREW,Hex, M10 x 45mm | KOBCAP |
| 15. | ZS28C10035 | [4] | SCREW,Hex Socket Head, M10 x 35mm | KOBSCREW |
| 16. | ZS28C10060 | [4] | SCREW,Hex Socket Head, M10 x 60mm | KOBCAP |
| 17. | ZW26X10000 | [1] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 18. | ZW26K10000 | [4] | LOCK WASHER | KOBLOCK |
| 19. | ZD12A01600 | [2] | O-RING | KOB |
| 20. | ZD12P02600 | [2] | O-RING | KOB |
| 21. | 2432Z290 | [20] | CLIP | KOB Superseded by part number: PY01P01043D3 |
