纽荷兰零件查询(E115SR) - CRAWLER EXCAVATOR ASN YV04-03043 (02-002) - LOW GROUP (FOR LONG CRAWLER) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
1002 次

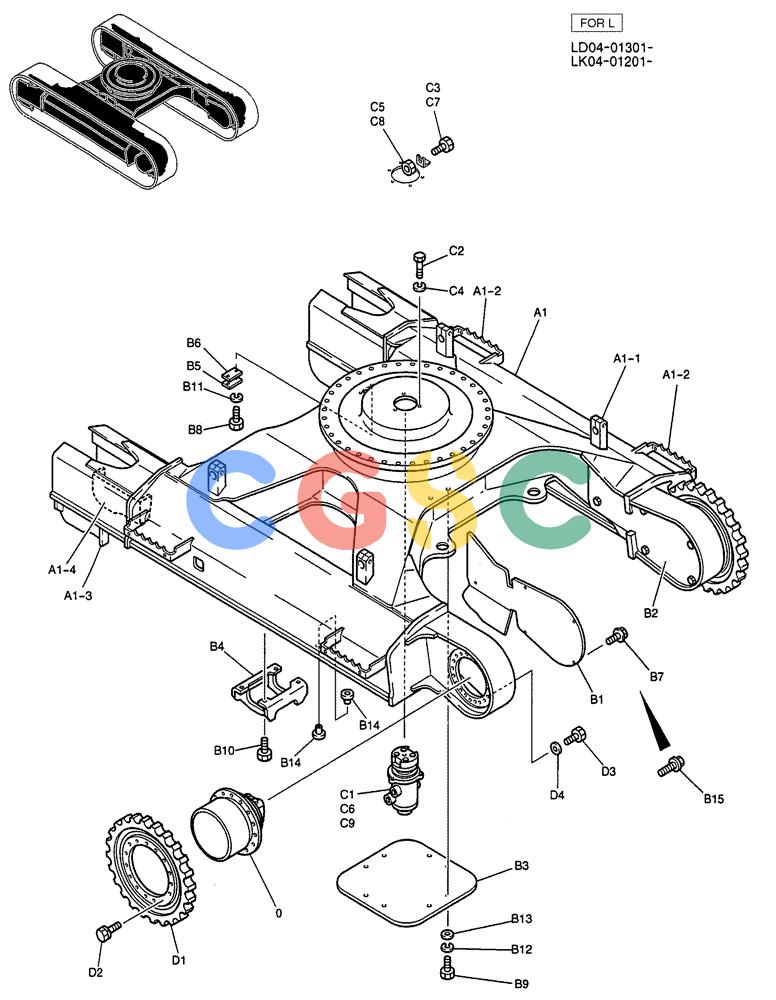

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 0. | YV15V00005F1 | [2] | MOTOR | KOBASSY, HYD |
| A1. | YV02F00014P1 | [1] | FRAME | KOBLOW |
| A1-1. | YV07F01001P1 | [4] | SUPPORT | KOB |
| A1-2. | YN41C00011P1 | [4] | STEP | KOB |
| A1-3. | 2429P1137 | [1] | GUIDE | KOB(L.H) |
| A1-4. | 2429P1138 | [2] | GUIDE | KOB(R.H) |
| . . | YV01F00002F1 | [1] | LOW GROUP | |
| . . | YV01F00002F2 | [1] | LOW GROUP (OPT) | |
| B1. | YV01F01003P1 | [1] | COVER | KOB |
| B2. | YV01F01004P1 | [1] | COVER | KOB |
| B3. | 2414T2929 | [1] | COVER | KOBASSY |
| B4. | YN01F01039P1 | [2] | GUIDE | KOBTRACK (FOR F1 ONLY) |
| B5. | 2422T556 | [1] | PLATE | KOB |
| B6. | 2418T12274 | [1] | PACKING | KOBRUBBER |
| B7. | 2420T6786 | [10] | BOLT,M12 x 1.75 x 25mm | KOBSEMS LD04-01301, Serial Range: -LD04-01304 Superseded by part number: ZM32C12025 |
| B8. | ZS18C10014 | [2] | SCREW,Hex, M10 x 14mm | KOBCAP |
| B9. | ZS13C18040 | [8] | BOLT | KOBCAP |
| B10. | 2420P1580D1 | [8] | SCREW,M18 x 1.5 x 40mm | KOBSCREW (FOR F1 ONLY) |
| B11. | ZW26X10000 | [2] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| B12. | ZW22K18000 | [8] | LOCK WASHER | KOB |
| B13. | ZW11X18000 | [8] | WASHER | KOB |
| B14. | YN01F01040P1 | [32] | CAP | KOB(FOR F1 ONLY) Superseded by part number: YY01F01047P1 |
| B15. | ZM73C12025 | [10] | BOLT,M12x25mm - Course Thread | KOBSEMS LD04-01305 to |
| . . | YN19H00040F2 | [1] | FLEXIBLE JOINT | KOBINSTAL, SWIVEL |
| C2. | ZS18C12025 | [3] | SCREW,Hex, M12 x 25mm | KOBCAP |
| C3. | ZS18F20120 | [1] | SCREW | KOBCAP |
| C4. | ZW16X12000 | [3] | WASHER | KOB |
| C5. | ZN18F20016 | [1] | NUT | KOB |
| C6. | YN55V00037F2 | [1] | FLEXIBLE JOINT | KOBASSY, SWIVEL |
| . . | YV53D00001F1 | [1] | HYDRAULIC MOTOR | KOBINSTAL, PROPEL |
| D1. | 2404N427 | [2] | SPROCKET | KOB |
| D2. | 2420P2963D1 | [42] | SCREW,M16 x 2 x 50mm | KOBCAP |
| D3. | ZS13C16060 | [60] | CAPSCREW | KOBSCREW CAP |
| D4. | ZW13H16000 | [60] | WASHER | KOB |
