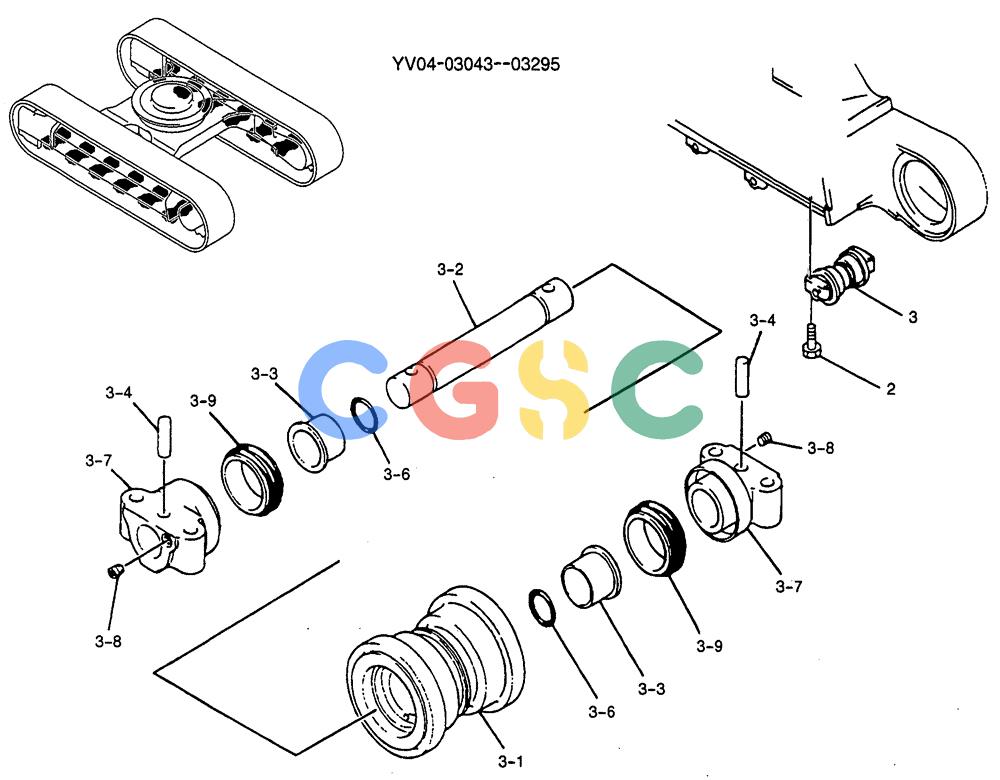

纽荷兰零件查询(E115SR) - CRAWLER EXCAVATOR ASN YV04-03043 (02-011) - TRACK ROLLER ASSY, P/N LP64D00001F3 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
290 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | LP64D00001F3 | [1] | ROLLER | KOBASSY, TRACK (STD) Superseded by part number: YY64D00018F1 |
| 2. | LP64D01004P1 | [48] | SCREW | KOBCAP |
| 3. | LP64D00004F2 | [12] | ROLLER | KOBASSY, TRACK, LOW Superseded by part number: YY64D00022F1 |
| 3-1. | 2413N413 | [1] | ROLLER | KOB |
| 3-2. | LP64D01001P1 | [1] | SHAFT | KOB |
| 3-3. | 2405P490 | [2] | BUSHING | KOB |
| 3-4. | LP64D01002P1 | [2] | PIN | KOB |
| 3-6. | ZD11G04500 | [2] | O-RING,44.40mm ID x 50.60mm OD x 3.10mm | KOB |
| 3-7. | LP64D01003P1 | [2] | COLLAR | KOB |
| 3-8. | ZE82T04000 | [2] | PLUG | KOB |
| 3-9. | 2445R440F1 | [2] | SEAL,73mm ID x 96.8mm OD x 33mm Thk | KOBASSY, FLOATING |
