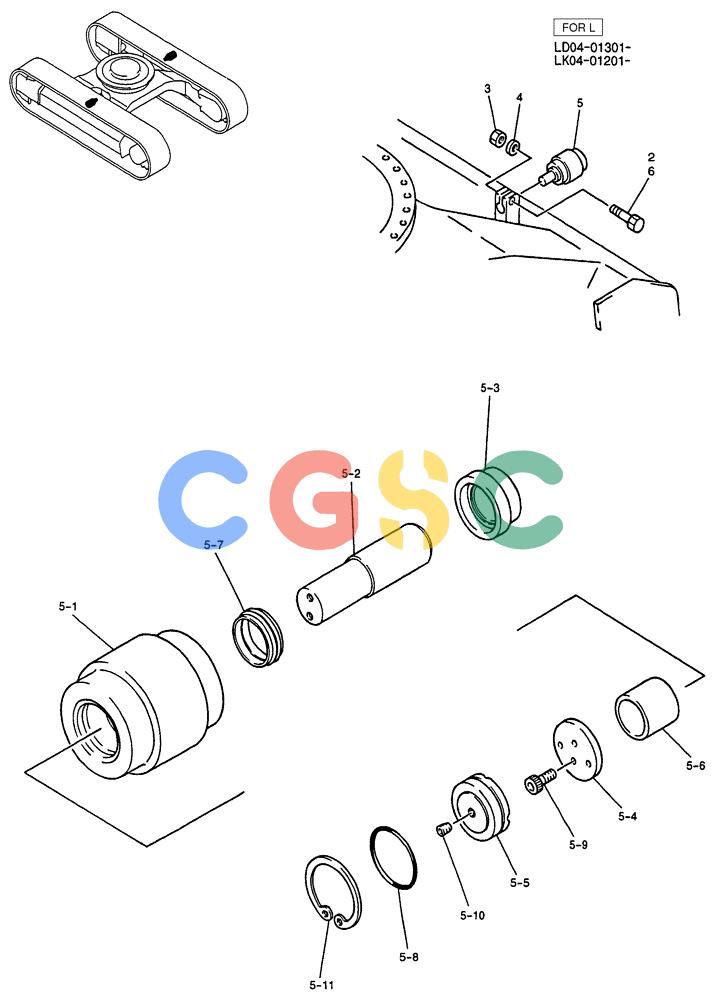

纽荷兰零件查询(E115SR) - CRAWLER EXCAVATOR ASN YV04-03043 (02-016) - ROLLER ASSY, UPP (FOR LONG CRAWLER) P/N YN64D00007F2 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
778 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 2. | YN64D01012P1 | [4] | CAP | KOBSCREW LD04-01301, Serial Range: -LD04-01323 Superseded by part number: ZS18C20100 |
| 3. | ZN13C20016 | [4] | NUT | KOB |
| 4. | ZW13H20000 | [4] | WASHER | KOB |
| 5. | YN64D01013F1 | [4] | ROLLER | KOBASSY, TRACK, UPP Superseded by part number: YN64D01120F1 |
| 5-1. | 2413N469 | [1] | ROLLER | KOB |
| 5-2. | YN64D01014P1 | [1] | SHAFT | KOB Superseded by part number: YN64D01144F1 |
| 5-3. | 2418P21176 | [1] | COLLAR | KOB Superseded by part number: 2418P22958 |
| 5-4. | YN64D01015P1 | [1] | PLATE | KOB Superseded by part number: YN64D01038P1 |
| 5-5. | 2414P7550 | [1] | COVER | KOB Superseded by part number: YN64D01026P1 |
| 5-6. | 2405T852 | [1] | BUSHING,45mm ID x 50mm OD x 50mm L | KOB |
| 5-7. | 2445R361F1 | [1] | SEAL,48mm ID x 68.6mm OD x 27mm Thk | KOBASSY, FLOATING |
| 5-8. | ZD11P06500 | [1] | O-RING | KOB |
| 5-9. | YN64D01016P1 | [2] | BOLT | KOB |
| 5-10. | ZE82T04000 | [1] | PLUG | KOB |
| 5-11. | ZR26X07500 | [1] | RING | KOBSNAP |
| 6. | YN52F01100D3 | [4] | CAP | KOBSCREW LD04-01324 to |
