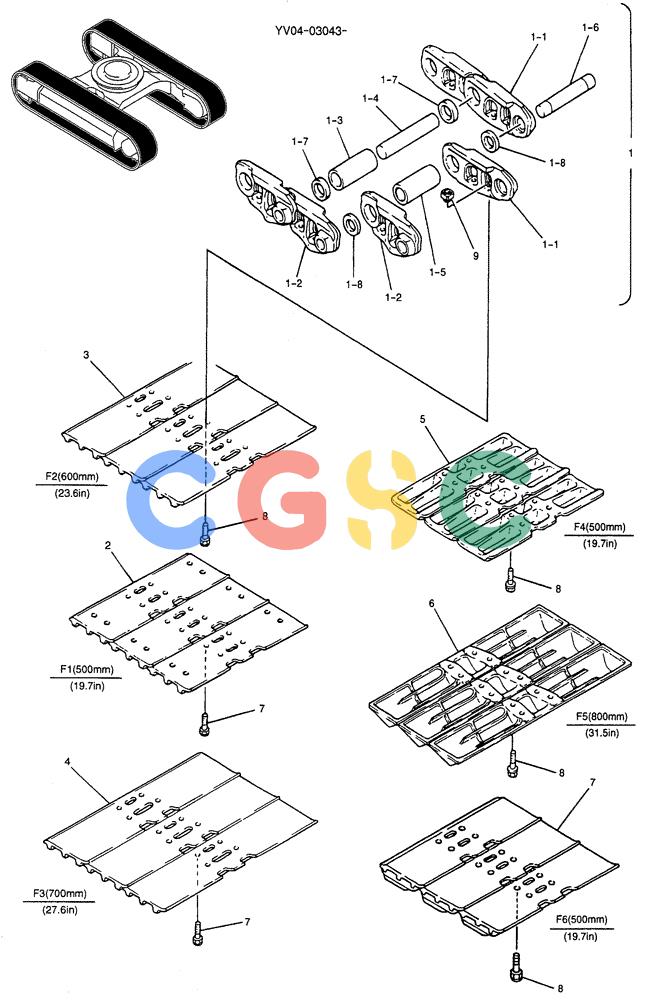

纽荷兰零件查询(E115SR) - CRAWLER EXCAVATOR ASN YV04-03043 (02-017) - SHOE ASSY P/N YV60D00003F2 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
885 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YV60D00003F2 | [2] | SHOE ASSY | |
| 1. | YV62D00005F1 | [1] | CHAIN | KOBTRACK LINK ASSY |
| 1-1. | YY62D01001P1 | [41] | TRACK LINK | KOB(R.H.) |
| 1-2. | YY62D01002P1 | [41] | TRACK LINK | KOB(L.H.) |
| 1-3. | YY62D01006P1 | [40] | BUSHING | KOBBUSHING |
| 1-6. | LP62D01004P1 | [1] | PIN | KOBMASTER |
| 1-7. | YY62D01005P1 | [80] | SEAL | KOB |
| 7. | 2420Z2036 | [164] | BOLT | KOB Superseded by part number: YY60D01003P1 |
| 9. | 2420Z2037 | [164] | NUT | KOB |
| . . | YV60D00003F1 | [2] | SHOE | KOBSHOE ASSY, CONSISTS OF REF 1, 2, 7 & 9 |
| 2. | YW60D00004P1 | [41] | SHOE | KOBSHOE |
| . . | YV60D00003F3 | [2] | SHOE | KOBSHOE ASSY, CONSISTS OF REF 1, 4, 7 & 9 |
| 4. | 2424N240D2 | [41] | SHOE | KOB700mm (27.6 in) Superseded by part number: 2424N228 |
| . . | YV60D00003F4 | [2] | SHOE ASSY, CONSISTS OF REF 1, 5, 8 & 9 | |
| 5. | 2424J113C1 | [41] | TRACK SHOE | KOBSHOE, FLAT |
| 8. | 2420T7345 | [164] | SCREW | KOB Superseded by part number: YY60D01005P1 |
| . . | YV60D00003F5 | [2] | SHOE ASSY, CONSISTS OF REF 1, 6, 8 & 9 | |
| 6. | B24K0018C1 | [41] | SHOE | KOBSHOE, TRIANGLE |
