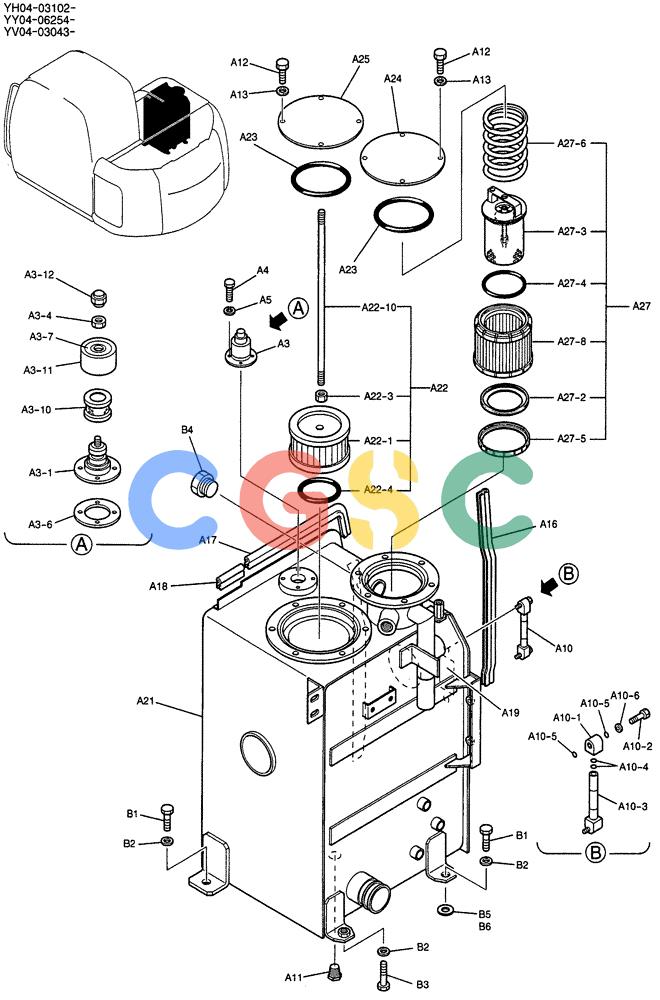

纽荷兰零件查询(E115SR) - CRAWLER EXCAVATOR ASN YV04-03043 (01-015) - TANK ASSY, HYDRAULIC New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
979 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YY33H00013F6 | [1] | TANK | KOBASSY, HYD |
| A3. | YN57V00002F4 | [1] | BREATHER ASSY. | KOB Superseded by part number: YN57V00010F1 |
| A3-1. | 2446U260S1 | [1] | BODY | KOBASSY |
| A3-4. | 2446U260S5 | [1] | NUT | KOB |
| A3-6. | 2446U260S8 | [1] | PACKING | KOB |
| A3-7. | YN57V00002S007 | [1] | IDENTITY PLATE | KOBCAUTION |
| A3-10. | YN57V00002S010 | [1] | ELEMENT | KOB Superseded by part number: YN57V00010S002 |
| A3-11. | YN57V00002S011 | [1] | COVER | KOB |
| A3-12. | YN57V00002S012 | [1] | CAP | KOB |
| A4. | ZS28C06016 | [4] | SCREW,Hex Socket Head, M6 x 16mm | KOBCAP |
| A5. | ZW26K06000 | [4] | LOCK WASHER | KOBLOCK WASHER |
| A10. | YN58S00009F1 | [1] | GAUGE | KOBASSY, LEVEL |
| A10-1. | NSS | [2] | NOT SERVICED SEPARATELY | CONBLOCK |
| A11. | ZE72X08000 | [1] | PLUG | KOB |
| A12. | ZS18C10020 | [8] | SCREW,Hex, M10 x 20mm | KOBCap |
| A13. | ZW16H10000 | [8] | WASHER | KOB |
| A16. | YT21C01163D9 | [1] | WEATHERSEAL STRIP | KOBSTRIP, WEATHER |
| A17. | YT21C01163D3 | [1] | WEATHERSTRIP | KOB |
| A18. | YA21C01036D4 | [1] | WEATHERSEAL STRIP | KOBSTRIP, WEATHER |
| A19. | YT33H01028P1 | [1] | LABEL | KOB, Serial Range: YV04-03043-YV04-03299 Superseded by part number: YF33H01020P1 |
| A19. | YF33H01020P1 | [1] | LABEL | KOBLABEL, Start Serial: YV04-03300 |
| A21. | YY33H00022P1 | [1] | TANK | KOB |
| A22. | YW50V00004FA | [1] | STRAINER ASSY. | KOBSUCTION |
| A22-1. | YN50V00002S001 | [1] | STRAINER ASSY. | KOB |
| A22-3. | ZN11C10008 | [1] | NUT | KOB Superseded by part number: ZN18C10008 |
| A22-10. | YW50V00004S010 | [1] | BOLT | KOB |
| A23. | ZD11G16500 | [2] | O-RING,164.30mm ID x 175.70mm OD x 5.70mm | KOB |
| A24. | YY33H01071P1 | [1] | COVER | KOB |
| A25. | YY33H01072P1 | [1] | COVER | KOB, Serial Range: YV04-03043-YV04-03522 Superseded by part number: YY33H01104P1 |
| A25. | YY33H01104P1 | [1] | COVER | KOB, Start Serial: YV04-03523 |
| A27. | YV52V01001F2 | [1] | ELEMENT | KOB Superseded by part number: YV52V01003F6 |
| A27-2. | YN52V01008S002 | [1] | PLATE | KOB |
| A27-3. | YV21V00001P1 | [1] | CHECK VALVE | KOB |
| A27-4. | ZD11G09000 | [1] | O-RING,89.40mm ID x 95.60mm OD x 3.10mm | KOB |
| A27-5. | YN52V01008S005 | [1] | PACKING | KOB |
| A27-6. | LC33H01009P1 | [1] | SPRING | KOB |
| A27-8. | YN52V01013P1 | [1] | HYDRAULIC OIL FILTER | KOBFILTER Superseded by part number: YN52V01021P1 |
| . . | YV52V01001R200 | [1] | HYDRAULIC OIL FILTER | KOBKIT, CONSISTS OF REF A23, A27-4 & A27-5, A27-8 Superseded by part number: YV52V01003R210 |
| . . | YY33H00007F1 | [1] | TANK | KOBINSTAL, HYD (NIBBLER & BREAKER) |
| . . | YY33H00007F2 | [1] | TANK | KOBINSTAL, HYD (STD) |
| B1. | ZS18C16035 | [3] | SCREW,Hex, M16 x 35mm | KOBCAP |
| B2. | ZW16H16000 | [4] | WASHER | KOB |
| B3. | HS18C16140G1 | [1] | SCREW | KOB Superseded by part number: HS18C16140G2 |
| B4. | ZE72X16000 | [1] | PLUG | KOB(FOR F2 ONLY) |
| B5. | LE33H01017D1 | [1] | SHIM | KOB(1.0) |
| B6. | LE33H01017D2 | [1] | SHIM | KOB(0.5) |
