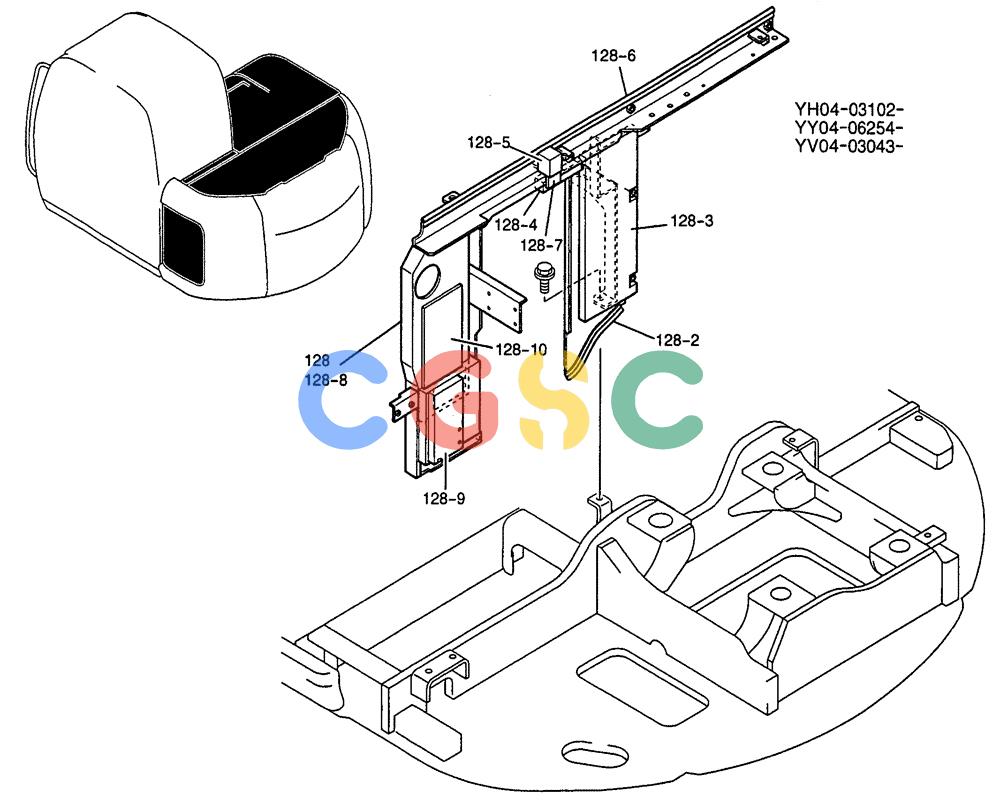

纽荷兰零件查询(E115SR) - CRAWLER EXCAVATOR ASN YV04-03043 (01-045) - GUARD INSTAL P/N YY21C00010FF New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
705 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YY21C00010FF | [1] | GUARD INSTAL | |
| 128. | YY21C01149F3 | [1] | U-BRACKET | KOBASSY |
| 128-2. | YT21C01163DC | [1] | WEATHERSTRIP | KOB |
| 128-3. | YY21C01143P1 | [1] | INDICATOR | KOB |
| 128-4. | YY21C01152D1 | [1] | RUBBER | KOB |
| 128-5. | YY21C01153D1 | [1] | RUBBER | KOB |
| 128-6. | YT21C01164D8 | [1] | WEATHERSTRIP | KOB |
| 128-7. | YY21C01154D1 | [1] | RUBBER | KOB |
| 128-8. | YY21C01447P1 | [1] | BRACKET | KOB |
| 128-9. | YY21C01671P1 | [1] | INSULATING PANEL | KOB |
