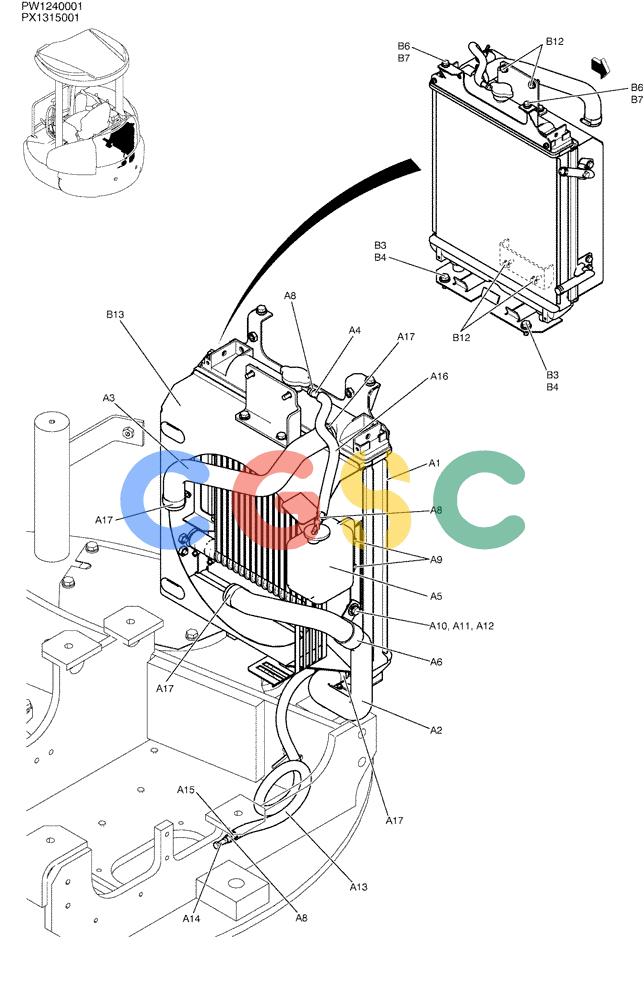

纽荷兰零件查询(E35SR) - COMPACT CRAWLER EXCAVATOR ASN PX13-15001 (N6TN61732) (NA) (1/06-) (01-007) - RADIATOR INSTAL New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
727 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | PW05P00042F1 | [1] | RADIATOR GROUP | |
| A1. | PW05P00040F1 | [1] | RADIATOR ASSY, FIG. 01-008 | |
| A2. | PW05P01089P1 | [1] | HOSE | KOBHOSE, RADIATOR |
| A3. | PW05P01088P1 | [1] | HOSE | KOBHOSE, RADIATOR |
| A4. | NSS | [1] | NOT SERVICED SEPARATELY | CONHOSE |
| A5. | PU01P01024F1 | [1] | RESERVOIR | KOBTANK ASSY, WATER, SUB Superseded by part number: VY12146844520 |
| A6. | ZC46X38014 | [1] | CLIP | KOBCLAMP |
| A9. | ZM61C06020 | [2] | BOLT | KOBSEMS-BOLT |
| A10. | ZS18C08016 | [1] | SCREW,Hex, M8 x 16mm | KOBCAPSCREW |
| A11. | ZW26X08000 | [1] | LOCK WASHER | KOBLock Superseded by part number: 83990583 |
| A12. | YR21C01161P1 | [1] | WASHER,9mm ID x 22mm OD x 2.3mm Thk | KOBWASHER |
| A13. | PU13E01002D1 | [1] | TUBE | KOBTUBE |
| A14. | PW05P01117P1 | [1] | PLUG | KOBPLUG |
| A16. | PU13E01002D9 | [1] | TUBE | KOBTUBE |
| A17. | ZC16X03300 | [2] | FASTENER | KOBCLIP |
| . . | PW05P00041F1 | [1] | RADIATOR INSTAL | |
| B3. | ZS18C10025 | [2] | SCREW,Hex, M10 x 25mm | KOB |
| B4. | ZW16H10000 | [2] | WASHER | KOBWASHER |
| B6. | ZS18C08020 | [2] | SCREW,Hex, M8 x 20mm | KOB |
| B7. | ZW16H08000 | [2] | WASHER | KOBID 08 x OD 18 x Th 3.2mm |
| B12. | ZM73C08020 | [4] | BOLT,M8x20mm - Course Thread | KOBM08x1.25x20mm (Incls. Washer) |
| B13. | PW05P01181F1 | [1] | SHROUD ASSY, RADIATOR | |
