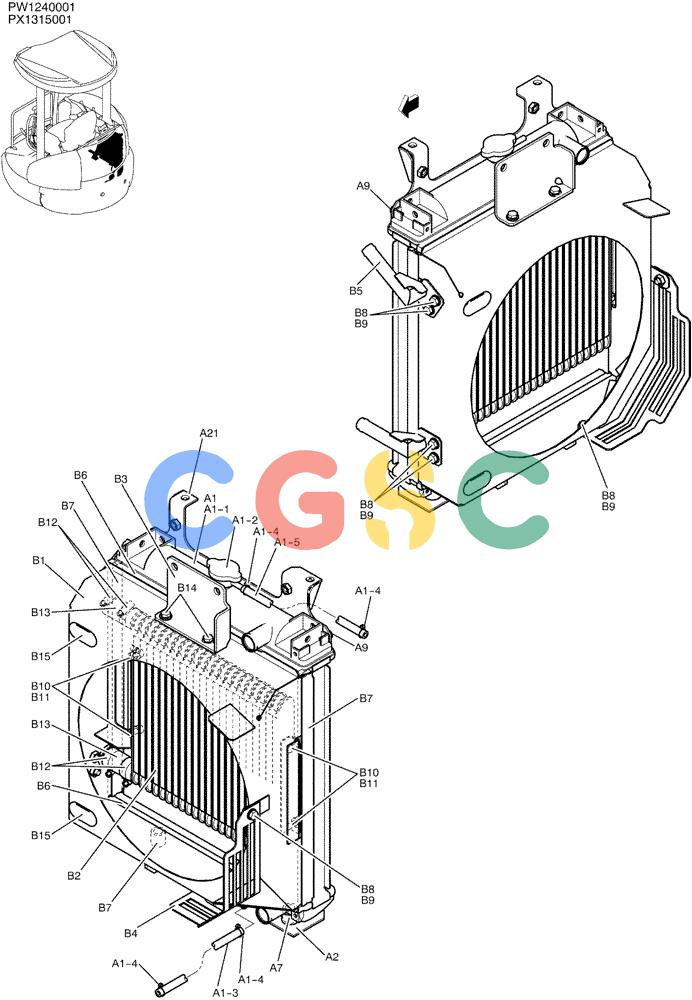

纽荷兰零件查询(E35SR) - COMPACT CRAWLER EXCAVATOR ASN PX13-15001 (N6TN61732) (NA) (1/06-) (01-008) - RADIATOR ASSY New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
1009 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | PW05P00040F1 | [1] | RADIATOR ASSY | |
| A1. | PW05P00027F1 | [1] | RADIATOR | KOBASSY |
| A1-1. | PW05P00027S001 | [1] | RADIATOR | KOB Superseded by part number: PW05P00027F1 |
| A1-2. | PM05P00010S002 | [1] | CAP | KOB Superseded by part number: PM05P00013S002 |
| A1-3. | PW05P00027S003 | [1] | HOSE | KOB |
| A1-4. | 2452U267S8 | [4] | CLIP | KOB |
| A1-5. | PH05P00012S005 | [1] | HOSE | KOB |
| A2. | PW05P01090P1 | [1] | BRACKET | KOB |
| A7. | PH05P01144P1 | [2] | RUBBER | KOBRUBBER |
| A9. | ZM61C06016 | [6] | BOLT | KOB |
| A21. | PW05P01178P1 | [1] | BRACKET, SUPPORTING | KOBBRACKET |
| . . | PW05P01181F1 | [1] | SHROUD ASSY, RADIATOR | |
| B2. | PW53V00012P1 | [1] | OIL COOLER | KOBCOOLER, OIL |
| B4. | PW05P01130P1 | [1] | GUARD | KOB |
| B6. | PW05P01083P1 | [2] | RUBBER | KOB |
| B8. | ZS18C08016 | [6] | SCREW,Hex, M8 x 16mm | KOB |
| B9. | ZW16X08000 | [6] | WASHER | KOB |
| B10. | ZS28C08016 | [4] | SCREW,Hex Socket Head, M8 x 16mm | KOBM08x1.25x16mm |
| B11. | ZW16K08000 | [4] | WASHER | KOB |
| B12. | ZC15X03000 | [4] | CLIP | KOBCLIP |
| B13. | PW32H01026DA | [2] | HOSE | KOBHOSE |
| B14. | ZM73C08016 | [2] | BOLT,M8x16mm - Course Thread | KOBM08x1.25x16mm (Incls. Washer) |
