纽荷兰零件查询(E35SR) - COMPACT CRAWLER EXCAVATOR ASN PX13-15001 (N6TN61732) (NA) (1/06-) (01-021[01]) - HYD LINES, UPP New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
290 次

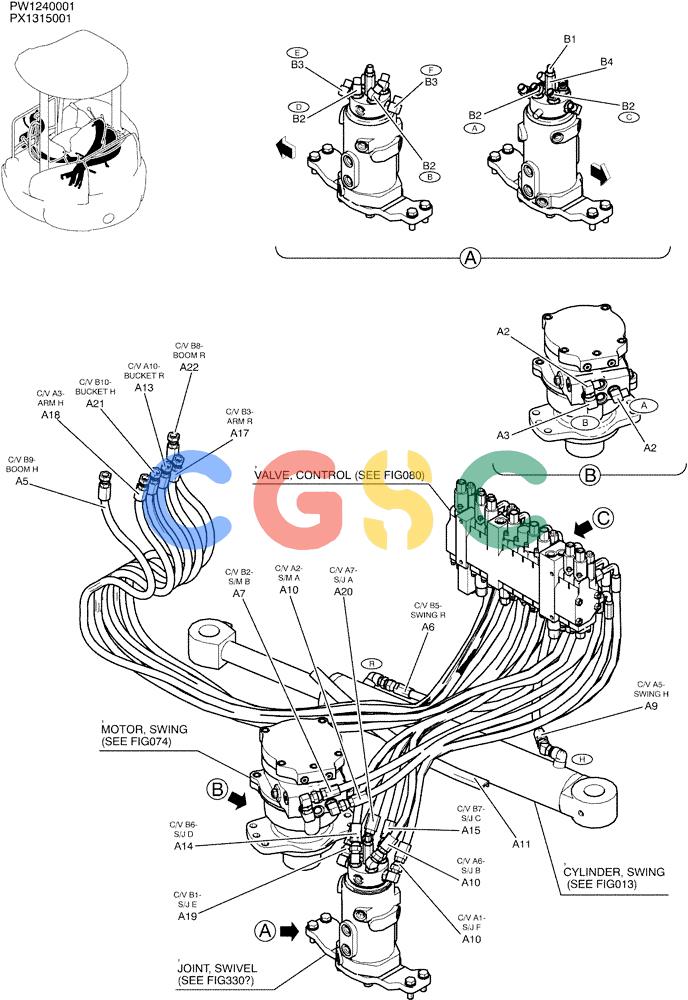

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | PW03H00035F1 | [1] | HYD LINES, UPP | |
| A1. | HH25S06006G1 | [16] | HYD CONNECTOR | KOB Superseded by part number: 124537A1 |
| A2. | HH35S06006G1 | [2] | 90 ELBOW,90°, 3/8" PF x 3/8" PF x 60mm L | KOB |
| A3. | 2444Z3155 | [1] | 90 ELBOW,PF 3/8" Fem x PF 3/8" Male | KOB Superseded by part number: YT42H01128P1 |
| A6. | PW03H01101D6 | [1] | HOSE,9.5mm ID x 740mm L | KOB |
| A7. | PW03H01101D2 | [1] | HOSE,9.5mm ID x 1050mm L | KOB |
| A9. | HX35L06054DY | [1] | HOSE,9.5mm ID x 540mm L | KOB |
| A10. | HX35L06094DY | [3] | HOSE,9.5mm ID x 940mm L | KOB |
| A11. | YN64H01068D6 | [1] | RUBBER | KOB |
| A13. | PW03H01127D2 | [1] | HOSE,9.5mm ID x 2120mm L | KOBHOSE |
| A14. | PW03H01101D3 | [1] | HOSE,9.5mm ID x 1000mm L | KOB |
| A15. | PW03H01101D4 | [1] | HOSE,9.5mm ID x 960mm L | KOB |
| A18. | PW03H01127D1 | [1] | HOSE | KOB |
| A19. | PW03H01101D7 | [1] | HOSE,9.5mm ID x 1100mm L | KOB |
| A20. | HX35L06090DY | [1] | HOSE,9.5mm ID x 900mm L | KOB |
| A21. | PW03H01127D3 | [1] | HOSE | KOB |
| . . | PW19H00019F1 | [1] | HYD LINES, SWIVEL | |
| B1. | HH25S04004G1 | [1] | HYD CONNECTOR | KOB Superseded by part number: 72283606 |
| B2. | HH45S06006G1 | [4] | 45 ELBOW | KOB |
| B4. | 2444Z4101 | [1] | HYD CONNECTOR | KOB |
