纽荷兰零件查询(E35SR) - COMPACT CRAWLER EXCAVATOR ASN PX13-15001 (N6TN61732) (NA) (1/06-) (01-023) - HYD LINES, RETURN New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
282 次

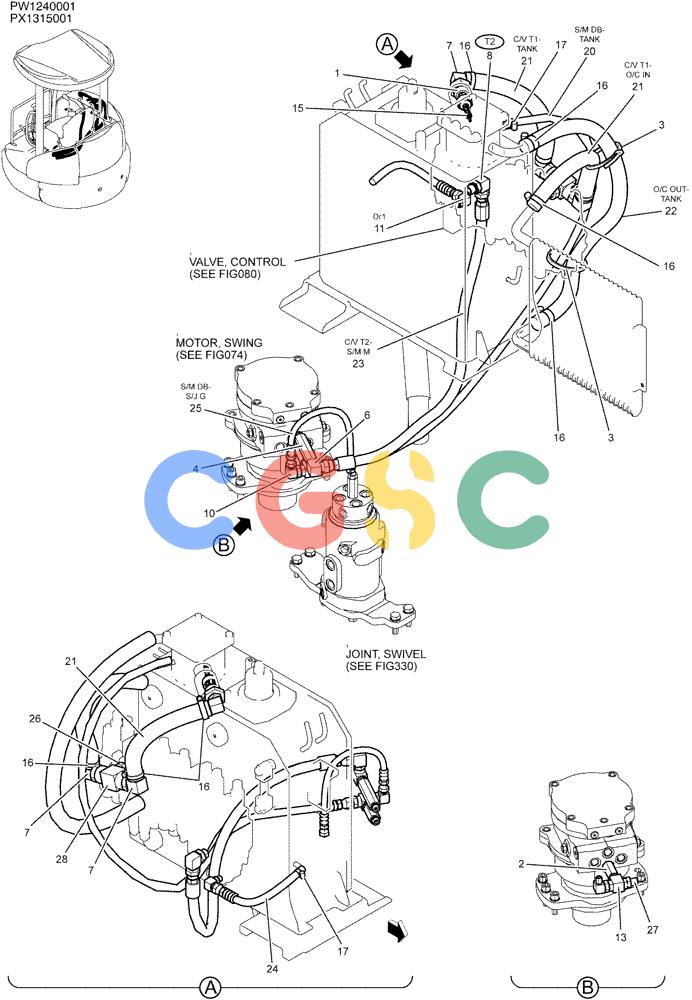

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | PW32H00012F1 | [1] | HYD LINES, RETURN | |
| 1. | HH25R16008G1 | [1] | HYD CONNECTOR | KOB Superseded by part number: 72950447 |
| 2. | 2444Z3711 | [1] | HYD CONNECTOR | KOB |
| 3. | PY01P01043D8 | [2] | CABLE TIE,102mm L | KOB |
| 4. | HH25R06006G4 | [1] | HYD CONNECTOR | KOB |
| 6. | HH35S08006G1 | [1] | 90 ELBOW | KOB |
| 7. | PW32H01028P1 | [3] | ELBOW | KOB |
| 8. | HH35S08008G1 | [1] | 90 ELBOW | KOB |
| 10. | HH35S04006G1 | [1] | 90 ELBOW,90°, 1/4" PF x 3/8" PF x 60mm L | KOB |
| 11. | HH35S06004G1 | [1] | ELBOW | KOB |
| 13. | YN64H01048P1 | [1] | TEE,90°, PF 3/8" x PF 3/8", O-Ring | KOB |
| 15. | PW21V00003F1 | [1] | VALVE | KOBASSY |
| 16. | ZC16X02800 | [6] | CLIP | KOB |
| 17. | ZC16X01800 | [2] | CLIP | KOB |
| 20. | PW68H01023D4 | [1] | HOSE,9.5mm ID x 1450mm L | KOB |
| 21. | PW32H01026D4 | [2] | HOSE,19mm ID x 350mm L | KOB |
| 22. | PW32H01026D3 | [1] | HOSE,19mm ID x 790mm L | KOB |
| 23. | HX22L08100DX | [1] | HOSE,12.7mm ID x 1000mm L | KOB |
| 24. | PW68H01023D1 | [1] | HOSE,9.5mm ID x 250mm L | KOB |
| 25. | HX22L04040DY | [1] | HOSE,6.3mm ID x 400mm L | KOB |
| 26. | 2444Z3713 | [1] | HYD CONNECTOR | KOB |
| 27. | HH25S06006G1 | [1] | HYD CONNECTOR | KOB Superseded by part number: 124537A1 |
| 28. | PY30H01008P1 | [1] | TEE,PF 1/2" x PF 1/2" | KOB |
