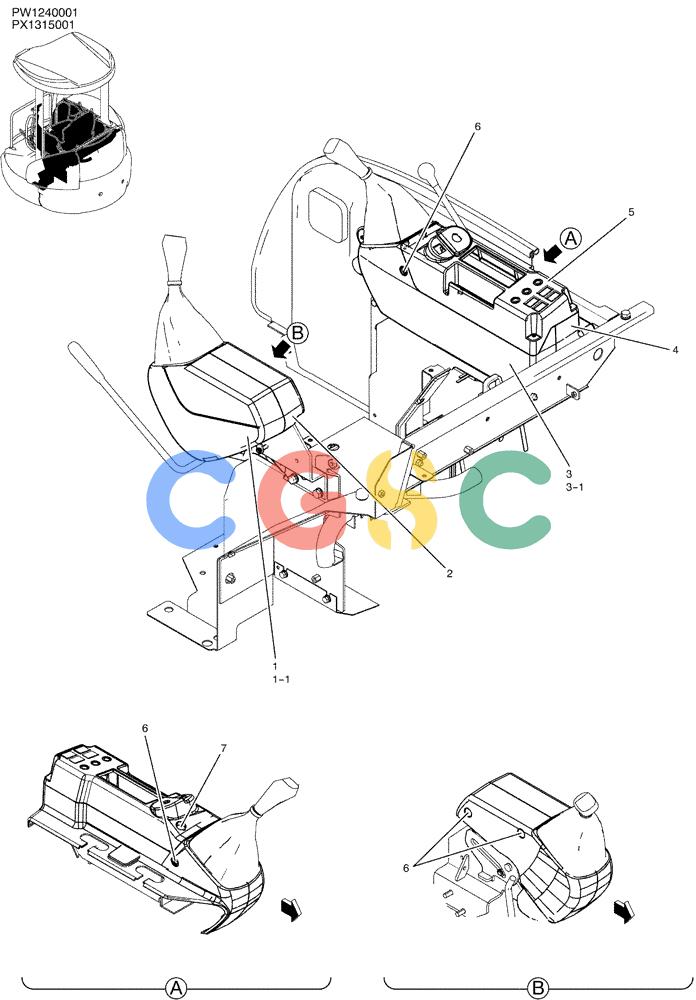

纽荷兰零件查询(E35SR) - COMPACT CRAWLER EXCAVATOR ASN PX13-15001 (N6TN61732) (NA) (1/06-) (01-025) - COVER ASSY New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
310 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | PW03M01703F1 | [1] | COVER ASSY | KOBCOVER ASSY |
| 1. | PW03M01661F1 | [1] | COVER ASSY | KOB |
| 1-1. | PW03M01663P1 | [1] | COVER ASSY | KOB Superseded by part number: PW03M01661F1 |
| 2. | PW03M01706P1 | [1] | COVER | KOB |
| 3. | PW03M01662F1 | [1] | COVER ASSY | KOB |
| 3-1. | PW03M01669P1 | [1] | COVER | KOB Superseded by part number: PW03M01662F1 |
| 4. | PW03M01672P1 | [1] | COVER | KOB |
| 5. | PW03M01709P1 | [1] | COVER | KOBCOVER |
| 6. | PW03M01678P1 | [4] | CAP | KOB |
| 7. | PW03M01690P1 | [1] | CAP | KOB |
