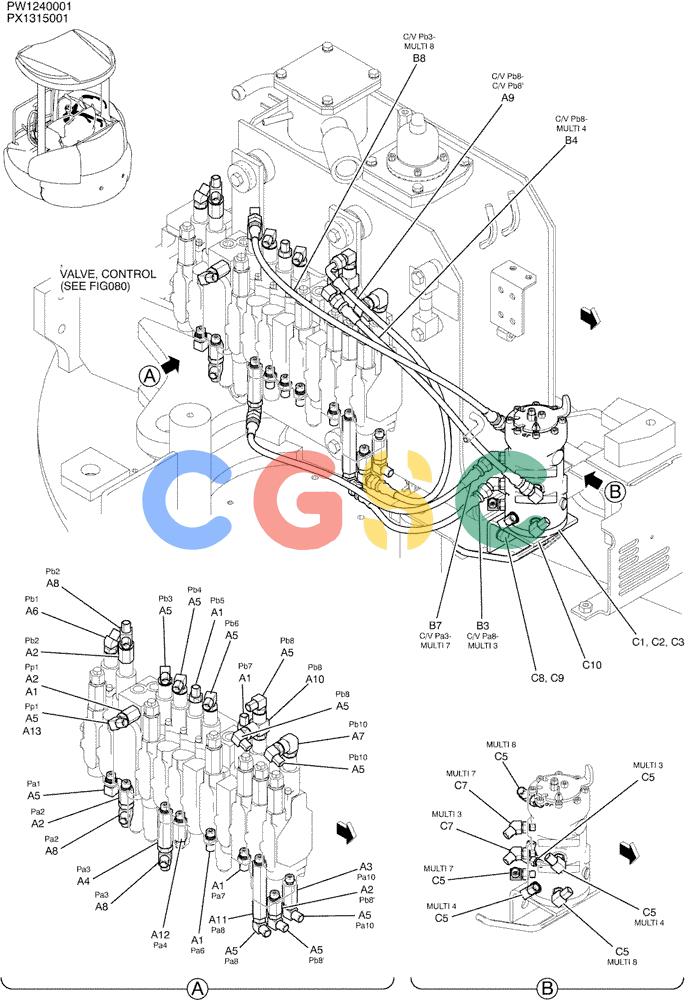

纽荷兰零件查询(E35SR) - COMPACT CRAWLER EXCAVATOR ASN PX13-15001 (N6TN61732) (NA) (1/06-) (01-032) - CONTROL LINES, REMOTE (MULTI) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
282 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | PW06H00012F1 | [1] | CONTROL LINES, MAIN | |
| A1. | HH25S04004G1 | [6] | HYD CONNECTOR | KOB Superseded by part number: 72283606 |
| A2. | 2444Z2525 | [4] | HYD CONNECTOR | KOB |
| A3. | 2444T2524D2 | [1] | HYD CONNECTOR | KOB Superseded by part number: 72961286 |
| A4. | HH25R04004G3 | [1] | CONNECTION | KOB |
| A5. | HH35S04004G1 | [10] | 90 ELBOW | KOB |
| A6. | HH45S04004G1 | [1] | 45 ELBOW | KOB |
| A7. | 2444Z2894 | [1] | 90 ELBOW | KOB |
| A8. | HH55L04004G1 | [3] | TEE | KOB |
| A9. | HX33L03064DX | [1] | HOSE,4.8mm ID x 640mm L | KOB |
| A10. | HH55Q04004G1 | [1] | TEE,1/4" ORB x 1/4" JIC x 1/4" JIC | KOB |
| A11. | 2444T2611 | [1] | HYD CONNECTOR | KOB |
| A12. | PU64H01002P1 | [1] | ADAPTER | KOB |
| A13. | PM12H01001P1 | [1] | ELBOW | KOB Superseded by part number: 87508052 |
| B3. | HX23L03028DX | [1] | HOSE | KOBHOSE Superseded by part number: HX23L03030DX |
| B4. | HX23L03044DX | [1] | HOSE,4.8mm ID x 440mm L | KOB |
| B7. | HX23L03052DX | [1] | HOSE | KOBHOSE Superseded by part number: HX23L03054DX |
| B8. | HX23L03062DX | [1] | HYDRAULIC HOSE | KOBHOSE |
| C1. | PX30V00060F1 | [1] | CONTROL VALVE | KOBVALVE ASSY, CONTROL Superseded by part number: PX30V00060F3 |
| C2. | ZS18C08016 | [4] | SCREW,Hex, M8 x 16mm | KOB |
| C3. | ZW16H08000 | [4] | WASHER | KOBID 08 x OD 18 x Th 3.2mm |
| C5. | HH35S04002G1 | [6] | ELBOW | KOB |
| C7. | HH45S04002G1 | [2] | ELBOW | KOB |
| C8. | ZS18C12030 | [2] | SCREW,Hex, M12 x 30mm | KOB |
| C9. | ZW16H12000 | [2] | WASHER | KOB |
| C10. | PW64H01075P2 | [1] | BRACKET | KOBBRACKET |
