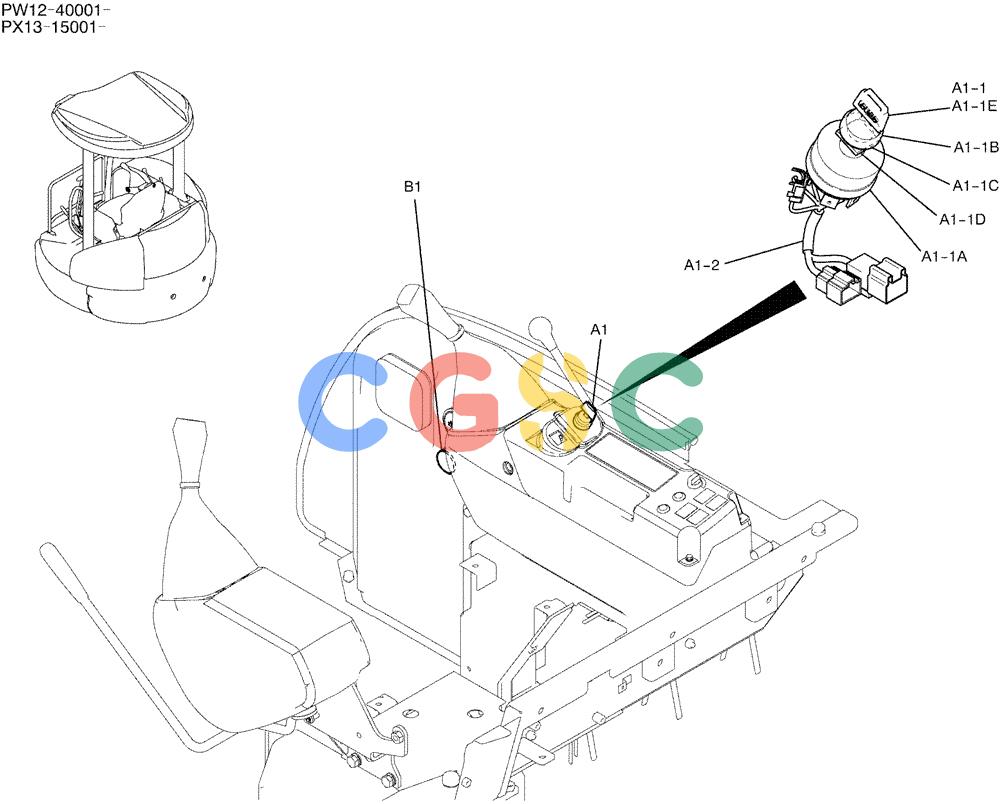

纽荷兰零件查询(E35SR) - COMPACT CRAWLER EXCAVATOR ASN PX13-15001 (N6TN61732) (NA) (1/06-) (01-056) - KEY ASSY New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
687 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| A1. | PW50E00003F1 | [1] | IGNITION SWITCH | KOBSWITCH ASSY |
| A1-1. | PW50S00007F1 | [1] | IGNITION SWITCH | KOBSWITCH ASSY, KEY |
| A1-1A. | PW50S00005S001 | [1] | SWITCH | KOBSWITCH |
| A1-1B. | PW50S00004S004 | [1] | NUT | KOBNUT ASSY |
| A1-1C. | YN50S00002S005 | [1] | WASHER | KOBWASHER |
| A1-1D. | YN50S00002S003 | [2] | WASHER | KOBWASHER |
| A1-1E. | PM50S01001P1 | [1] | IGNITION KEY | KOBKEY, LOCK |
| A1-2. | PW50E01002P1 | [1] | HARNESS | KOBHARNESS |
| .. | PW22T00112F1 | [1] | LABEL | KOBNAME PLATE INSTAL Superseded by part number: PW03M01686P1 |
| B1. | PW03M01686P1 | [1] | PLATE | KOBPLATE |
