纽荷兰零件查询(E35SR) - COMPACT CRAWLER EXCAVATOR ASN PX13-15001 (N6TN61732) (NA) (1/06-) (02-001) - LOW GROUP New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
920 次

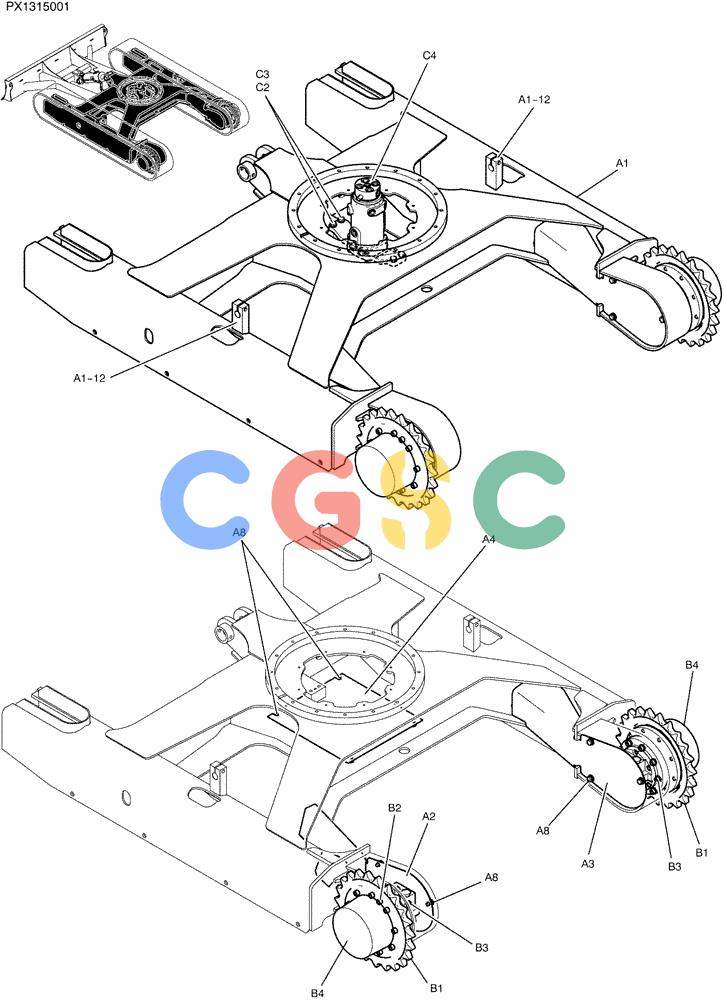

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | PX01F00008F1 | [1] | LOW GROUP | |
| A1. | PX02F00069P1 | [1] | FRAME | KOBFRAME, LOW |
| A1-12. | PX07F01059P1 | [1] | SUPPORT | KOB |
| A2. | PX01F01027P1 | [1] | COVER | KOB |
| A3. | PX01F01028P1 | [1] | COVER | KOB |
| A4. | PM01F01008P1 | [1] | COVER | KOB |
| A8. | ZM73C10016 | [10] | BOLT,M10x16mm - Course Thread | KOBSEMS-BOLT |
| . . | PX53D00010F1 | [1] | MOTOR INSTAL, PROPEL | |
| B1. | PX51D01001P1 | [2] | SPROCKET | KOB |
| B2. | ZS18C12040 | [20] | SCREW,Hex, M12 x 40mm | KOB |
| B3. | PV17M01004P1 | [20] | SCREW | KOBCAP |
| B4. | PX15V00025F1 | [2] | HYDRAULIC MOTOR | KOB |
| . . | PW19H00014F2 | [1] | JOINT INSTAL, SWIVEL | |
| C3. | ZW16X12000 | [4] | WASHER | KOB |
| C4. | PW55V00015F2 | [1] | JOINT ASSY. | KOB |
