纽荷兰零件查询(E35SR) - COMPACT CRAWLER EXCAVATOR ASN PX13-15001 (N6TN61732) (NA) (1/06-) (02-003) - IDLER ASSY, CRAWLER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
701 次

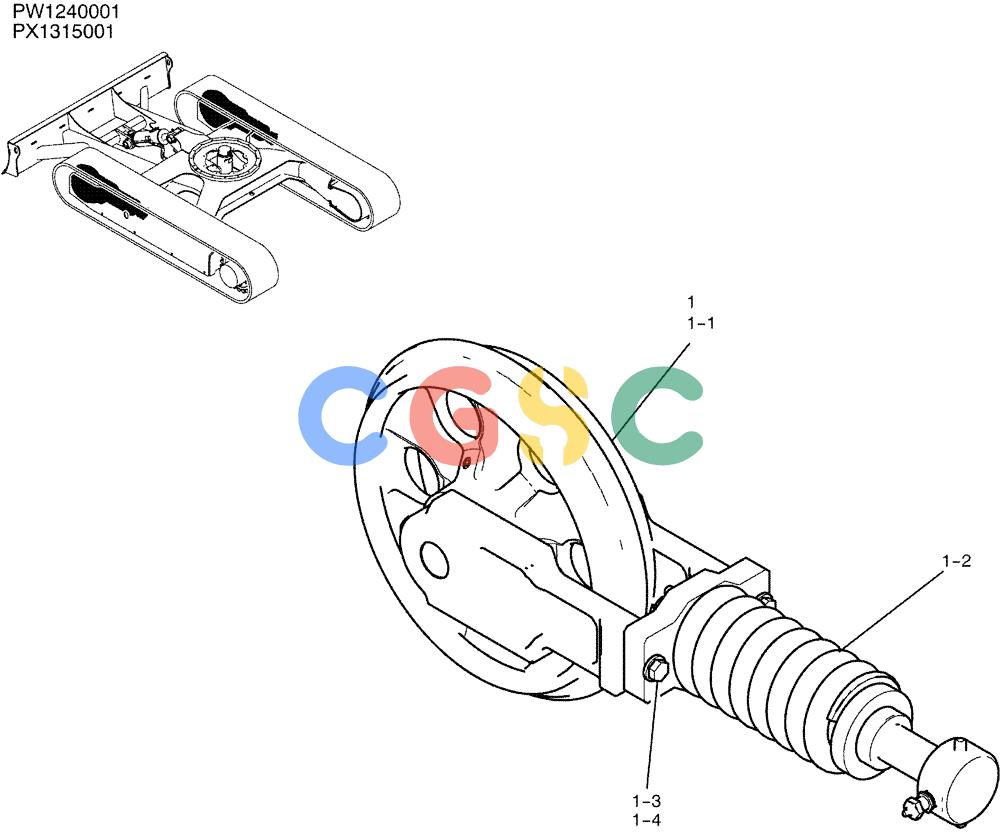

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | PX52D00018F1 | [2] | IDLER | KOBASSY, CRAWLER Superseded by part number: PX52D00028F1 |
| 1-1. | PX52D00021F1 | [1] | IDLER | KOBASSY, SEE FIG 02-004 Superseded by part number: PX52D00029F1 |
| 1-2. | PX54D00011F1 | [1] | IDLER | KOBADJUST ASSY, SEE FIG 02-005 |
| 1-3. | ZS18C10045 | [2] | SCREW,Hex, M10 x 45mm | KOBCAP |
| 1-4. | ZW16H10000 | [2] | WASHER | KOBWASHER |
