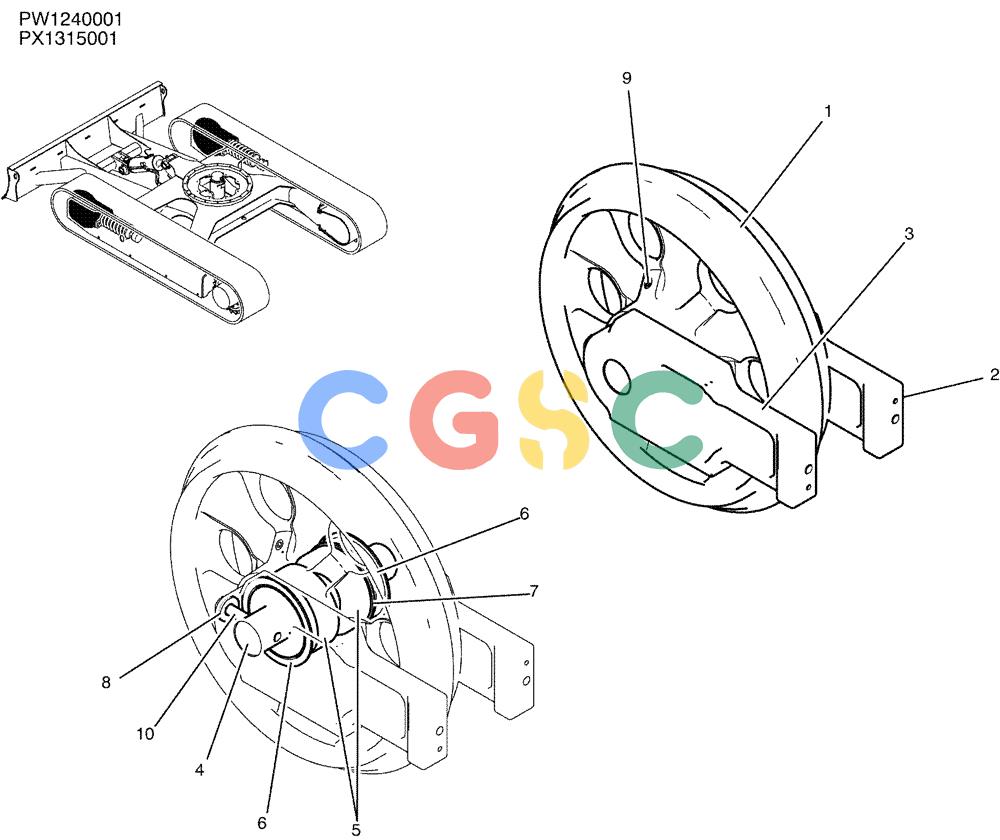

纽荷兰零件查询(E35SR) - COMPACT CRAWLER EXCAVATOR ASN PX13-15001 (N6TN61732) (NA) (1/06-) (02-004) - IDLER ASSY New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
436 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | PX52D00022P1 | [1] | IDLER | KOB Superseded by part number: PX52D00022P2 |
| 2. | PX52D01012P1 | [1] | COLLAR | KOB Superseded by part number: PX52D01013P1 |
| 3. | PX52D01013P1 | [1] | COLLAR | KOB |
| 4. | PX52D01014P1 | [1] | SHAFT | KOB |
| 5. | PW52D01009P1 | [2] | BEARING,35mm ID x 80mm OD x 21mm W | KOB |
| 6. | PH52D01006P1 | [2] | SEAL,41mm ID x 88mm OD x 19mm Thk | KOB |
| 7. | ZR26X08000 | [1] | SNAP RING | KOB |
| 8. | PX52D01015P1 | [2] | CAPSCREW | KOBSCREW CAPSCREW |
| 9. | PV52D01007P1 | [1] | PLUG | KOB |
| 10. | ZW16H10000 | [2] | WASHER | KOB |
