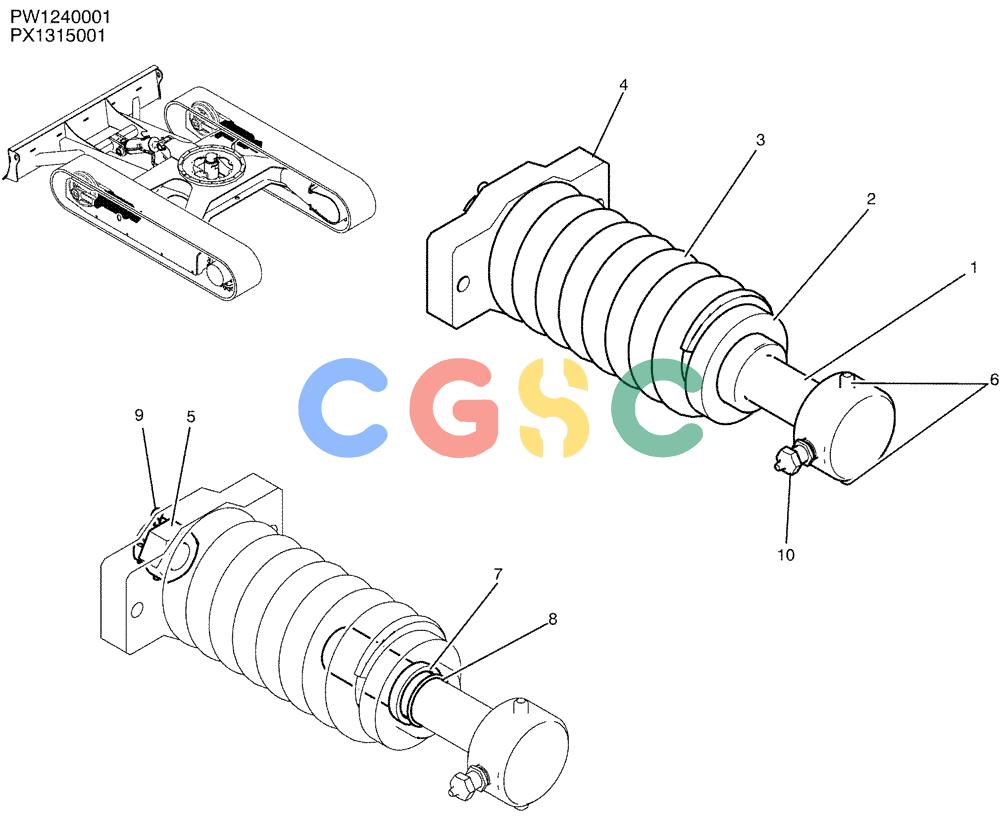

纽荷兰零件查询(E35SR) - COMPACT CRAWLER EXCAVATOR ASN PX13-15001 (N6TN61732) (NA) (1/06-) (02-005) - IDLER ADJUST ASSY New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
248 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | PX54D00011F1 | [1] | IDLER | KOBADJUST ASSY |
| 1. | PX01V01008P1 | [1] | PISTON | KOB |
| 2. | PX70V00006P1 | [1] | CYLINDER | KOBGREASE |
| 3. | PX54D01010P1 | [1] | SPRING | KOB |
| 4. | PX54D01011P1 | [1] | PLATE | KOB |
| 5. | PX54D01013P1 | [1] | NUT | KOB |
| 6. | PX54D01014P1 | [2] | PIN,10mm OD x 24mm L | KOB |
| 7. | PW54D01006P1 | [1] | OIL SEAL | KOB |
| 8. | ZD12G03500 | [1] | O-RING,34.40mm ID x 40.60mm OD x 3.10mm | KOB |
| 9. | ZP15D05045 | [1] | PIN | KOB Superseded by part number: ZP15D05080 |
| 10. | PX80B01026P1 | [1] | LUBE NIPPLE | KOB |
