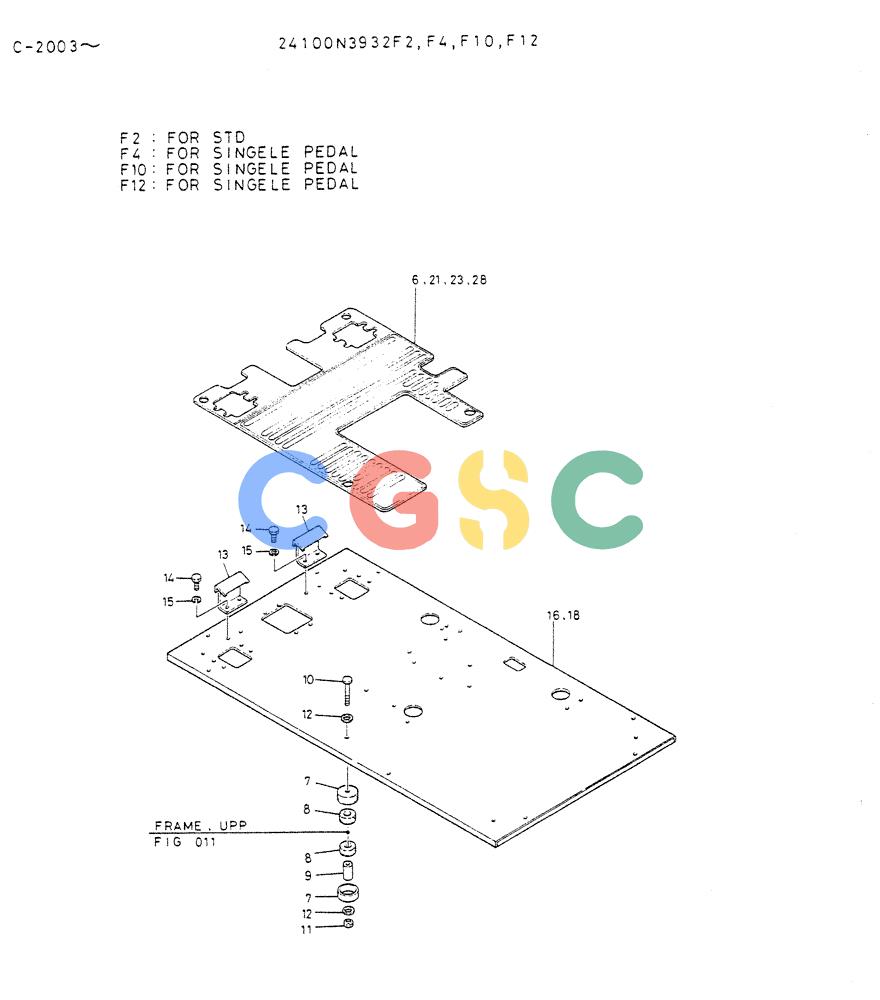

神钢零件查询(K912A) - EXCAVATOR BTW LC-2003 - LC-2016 (1/85-12/03) (02-007) - PLATE ASY, FLOOR (LONG CONTROL TYPE) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
774 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N3932F2 | [1] | PLATE ASSY, FLOOR | |
| 7. | 2414T2673 | [12] | COVER | KOB |
| 8. | 2416Z253D2 | [12] | RUBBER SLEEVE | KOBCUSHION, RUBBER |
| 9. | 2418T9226D5 | [6] | SPACER | KOB |
| 10. | ZS18C16100 | [6] | SCREW,Hex, M16 x 100mm | KOBM16x2.0x100mm |
| 11. | ZN32C16015 | [6] | NUT | KOBM16x2.0mm |
| 12. | ZW16H16000 | [12] | WASHER | KOBID 17 x OD 32 x Th 4.5mm |
| 13. | 2422T547 | [2] | STEP | |
| 14. | ZS18C10025 | [4] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 15. | ZW26X10000 | [4] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 16. | 2418N2705 | [1] | PLATE, FLOOR | |
| 21. | 2427U413D2 | [1] | MAT, FLOOR | |
| . . | 24100N3932F4 | [1] | PLATE ASSY, FLOOR | |
| 18. | 2418N2707 | [1] | PLATE, FLOOR | |
| 23. | 2427U425D2 | [1] | MAT, FLOOR | |
| . . | 24100N3932F10 | [1] | PLATE ASSY,FLOOR (LONG CONTROL TYPE) | |
| 6. | 2427U413D1 | [1] | MAT/ FLOOR | |
| 8. | 24116Z253D2 | [12] | RUBBER, CUSHION | |
| . . | 24100N3932F12 | [1] | PLATE ASSY, FLOOR | |
| 28. | 2427U425D1 | [1] | MAT/ FLOOR | |
