纽荷兰零件查询(E35SR) - COMPACT CRAWLER EXCAVATOR ASN PX13-15001 (N6TN61732) (NA) (1/06-) (03-006) - LIGHT INSTAL (BOOM) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
300 次

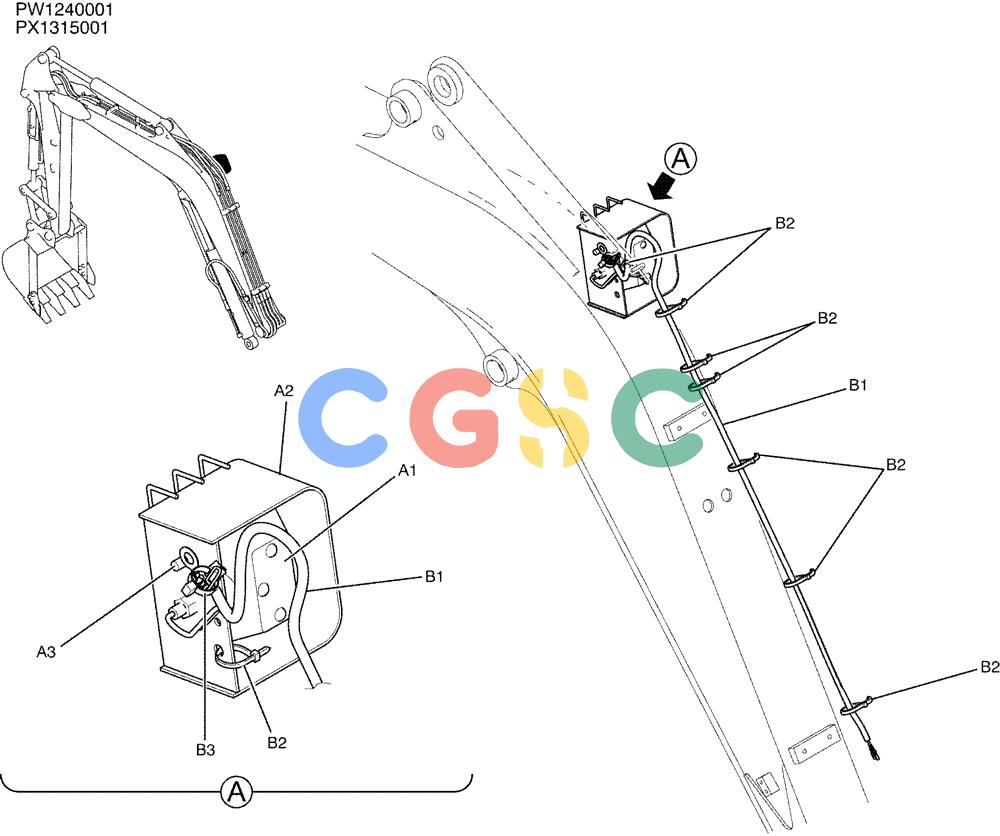

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | PM80E00012F1 | [1] | LIGHT INSTAL, BOOM | |
| A1. | PM80S00008F1 | [1] | LIGHT | KOBLIGHT ASSY, SEE FIG 01-052 |
| A2. | PW80E01018P1 | [1] | COVER | KOBCOVER |
| A3. | ZM73C12020 | [1] | BOLT,M12x20mm - Course Thread | KOBSEMS-BOLT |
| . . | PW15E00005F1 | [1] | HARNESS ASSY, BOOM | |
| B1. | PM15E01012D2 | [1] | HARNESS | KOB |
| B2. | PY01P01043D3 | [8] | CABLE TIE,188mm L | KOBWire Ties -- 188mm Long |
| B3. | YN03E01001D5 | [1] | CLIP | KOB |
