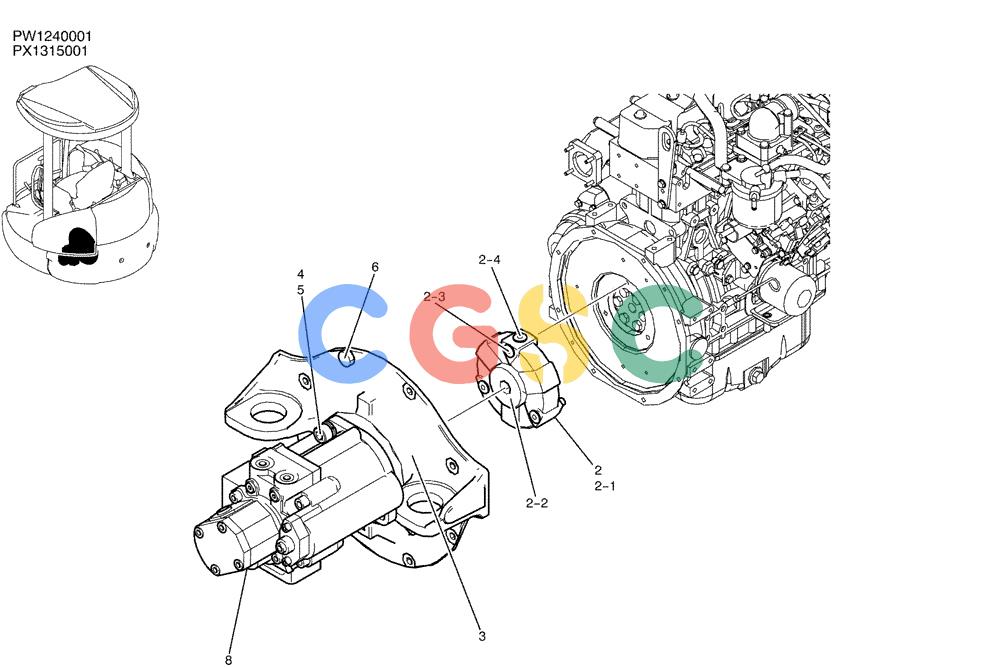

纽荷兰零件查询(E35SR) - COMPACT CRAWLER EXCAVATOR ASN PX13-15001 (N6TN61732) (NA) (1/06-) (05-006) - POWER TAKE-OFF ASSY (COOLER) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
321 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | PW30P00006F1 | [1] | POWER TAKE-OFF ASSY | |
| 2. | PW30P01007F1 | [1] | COUPLING | KOBASSY |
| 2-1. | PW30P01002S001 | [1] | COUPLING | KOB |
| 2-2. | PW30P01002S002 | [1] | HUB | KOB |
| 2-3. | PW30P01002S003 | [3] | CAPSCREW,Hex Socket Head, M12 x 40mm | KOBSCREW CAP Superseded by part number: ZS23C12040 |
| 2-4. | PY30P01003S004 | [3] | CAPSCREW,Hex Socket Head, M12 x 35mm | KOBSCREW CAP Superseded by part number: ZS23C12035 |
| 3. | PW30P01005P2 | [1] | BRACKET | KOBBRACKET |
| 4. | PV17M01003D1 | [2] | SCREW | KOBCAP |
| 5. | ZW16K12000 | [2] | WASHER | KOB |
| 6. | ZS18C10025 | [8] | SCREW,Hex, M10 x 25mm | KOB |
| 8. | PX10V00012F1 | [1] | HYDRAULIC PUMP | KOBPUMP ASSY, HYD |
