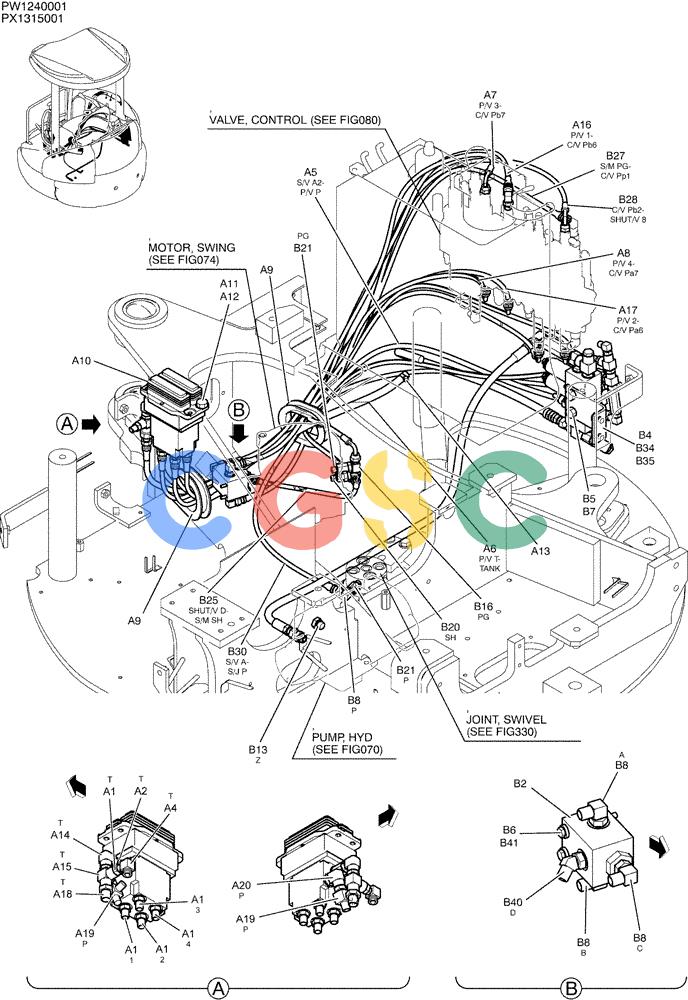

纽荷兰零件查询(E35SR) - COMPACT CRAWLER EXCAVATOR ASN PX13-15001 (N6TN61732) (NA) (1/06-) (05-008[01]) - CONTROL LINES, REMOTE (WITH A PUMP Z PORT) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
714 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | PW62H00008F1 | [1] | CONTROL LINES, PROPEL | |
| A1. | HH25S04004G1 | [4] | HYD CONNECTOR | KOB Superseded by part number: 72283606 |
| A2. | 2444Z2525 | [1] | HYD CONNECTOR | KOB |
| A4. | HH35S04004G1 | [1] | 90 ELBOW | KOB |
| A5. | HX24L04145DX | [1] | HOSE,6.3mm ID x 1450mm L | KOB |
| A6. | PW68H01023DA | [1] | HOSE,9.5mm ID x 800mm L | KOB |
| A7. | HX33L03150DX | [1] | HOSE | KOB |
| A8. | HX33L03125DX | [1] | HOSE,4.8mm ID x 1250mm L | KOB |
| A9. | PW62H01001P1 | [2] | GROMMET | KOB |
| A10. | PM30V00019F1 | [1] | PILOT VALVE | KOBASSY, PILOT Superseded by part number: PM30V00019F4 |
| A11. | ZS18C08025 | [4] | SCREW,Hex, M8 x 25mm | KOBCAP |
| A12. | ZW16H08000 | [4] | WASHER | KOBID 08 x OD 18 x Th 3.2mm |
| A13. | ZC16X01800 | [1] | CLIP | KOB |
| A14. | 2444Z2894 | [1] | 90 ELBOW | KOBELBOW |
| A15. | HH55Q04004G1 | [1] | TEE,1/4" ORB x 1/4" JIC x 1/4" JIC | KOB |
| A17. | HX33L03135DX | [1] | HOSE,4.8mm ID x 1350mm L | KOB |
| A18. | HH25S06004G1 | [1] | HYD CONNECTOR | KOB Superseded by part number: HH25S06004G3 |
| A19. | HH55L04004G1 | [1] | TEE | KOB |
| A20. | PH62H01003P1 | [1] | ELBOW | KOB Superseded by part number: 72283832 |
| . . | PW64H00069F1 | [1] | CONTROL LINES, VALVE | |
| B2. | PH26V00001F1 | [1] | VALVE | KOBVALVE ASSY, SHUTTLE |
| B4. | PW64H01072P1 | [1] | BRACKET | KOB |
| B5. | ZS18C08020 | [2] | SCREW,Hex, M8 x 20mm | KOB |
| B6. | ZS18C06065 | [2] | SCREW,Hex, M6 x 65mm | KOBCAP |
| B13. | ZE72X04000 | [1] | PLUG | KOBTEE |
| B16. | HH55L04004G2 | [1] | TEE | KOB Superseded by part number: 72284852 |
| B25. | HX33L03040DX | [1] | HOSE,4.8mm ID x 400mm L | KOB |
| B28. | HX33L03145DX | [1] | HOSE,4.8mm ID x 1450mm L | KOB |
| B30. | HX23L03140DX | [1] | HOSE,4.8mm ID x 1400mm L | KOB |
| B34. | ZS18C10030 | [2] | SCREW,Hex, M10 x 30mm | KOBCAP |
| B35. | ZW16H10000 | [2] | WASHER | KOBWASHER |
| B40. | HH45S04004G1 | [1] | 45 ELBOW | KOB |
| B41. | ZW16H06000 | [2] | WASHER | KOB |
